Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Cummins | Engine Model: | KTA38-G2B |
|---|---|---|---|
| Output Power (kw): | 711 | Rated Frequency (Hz): | 50 |
| Alternator: | Stamford / Meecalt / Copy Stamford | Canopy Size (l*w*h/mm）: | 6000*2400*2800 |
| Canopy Weight(KG): | 17000 | Type: | Slient |
| Highlight: | genset silent generator set,silent diesel genset |
||

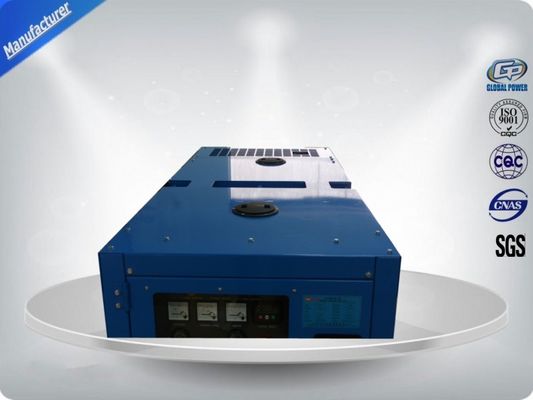

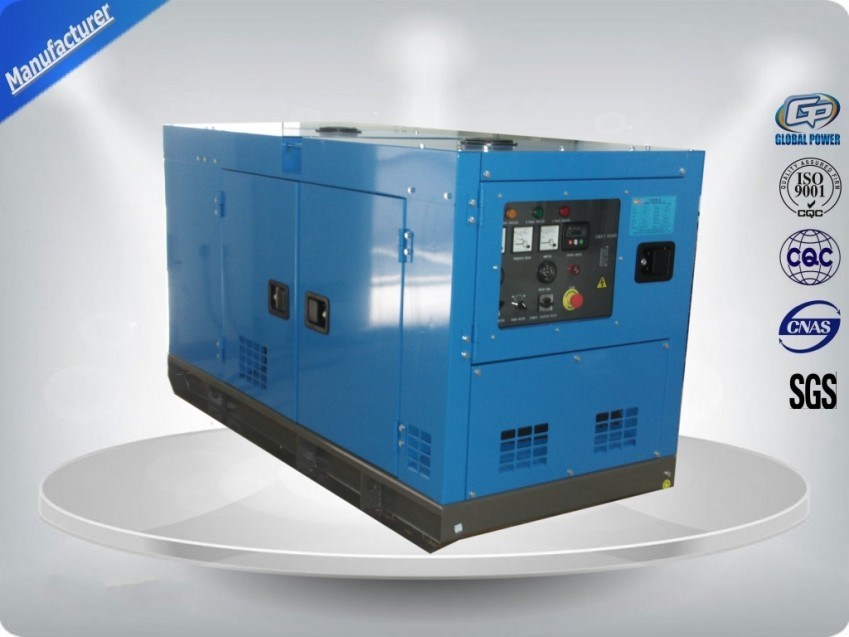

800kva Silent Diesel Generator Set
Technical Specifications :
|
Genset |
Prime Power (kw/kva) |
640 / 800 |
|
|
Standby Power (kw/kva) |
704 / 880 |
||
|
Voltage Recovery Time |
≤1S |
||
|
Rated Current (A) |
1155 |
||
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
24V 100Ah |
||
|
Fuel Tank Capacity(L) |
1200 |
||
|
Engine |
Engine brand |
Cummins |
|
|
Output Power (kw) |
711 |
||
|
Cylinder No. & Config. |
12,in “V” |
||
|
Combustion System |
direct injection |
||
|
Compression Ratio |
14.5:1 |
||
|
Displacement (L) |
37.8 |
||
|
Bore X Stroke (mm) |
159*159 |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Mechanical |
||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday… |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
|
Protection Grade |
IP23 |
||
Our Picture :

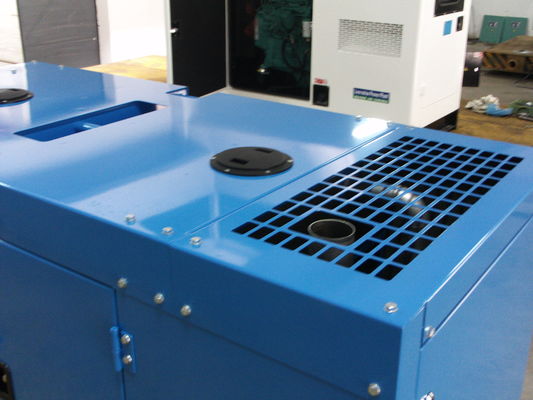

Generator soundproof/Silent and canopy
Our Service:
Warranty and Maintenance:
