Name: Custom Color 3 Phase Diesel Generator Mechanical Speed Governing 730Kw / 913Kva
Brand: WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
SKU: GP C730
Availability: InStock

MOQ:	1set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets / year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

CE / ISO

Model Number

GP C730

Engine Brand:

Cummins

Engine Model:

KTA38-G2A

Output Power (kw):

813

Rated Frequency (Hz):

Alternator:

Stamford / Meecalt / Copy Stamford

Canopy Size (6000*2400*2800l*w*h/mm）:

6000*2400*2800

Canopy Weight(KG):

17200

Fuel Tank Capacity(L):

1200

Highlight:

silent dg set

silent gen set

silent dg

Product Description

Custom Color 3 Phase Diesel Generator Mechanical Speed Governing 730Kw / 913Kva

Technical Specifications :

Genset	Prime Power (kw/kva)		730 / 913
	Standby Power (kw/kva)		803 / 1004
	Voltage Recovery Time		≤1S
	Rated Current (A)		1317
	Rated Frequency (Hz)		50
	Frequency Recovery Time		≤5S
	Running Noise db(A)/7m(Silent type)		75
	Battery capacity (V-Ah)		24V 100Ah
	Fuel Tank Capacity(L)		1200
Engine	Engine brand	Cummins
	Output Power (kw)	813
	Cylinder No. & Config.	12,in “V”
	Combustion System	direct injection
	Compression Ratio	14.5:1
	Displacement (L)	37.8
	Bore X Stroke (mm)	159*159
	Engine Speed (r/min)	1500
	Speed Governing	Mechanical
	Starting System	24V DC Electric
	Filter System	Dry oil filter/Fuel filter/Oil filter
	Cooling system	Water-cooled
Alternator	Alternator brand	Stamford, Mecc-alte,Faraday…
	Excitation System	Brushless, self-exciting
	Voltage Regulation Mode	AVR
	Connection Type	3phase,4wires,”Y” connection
	Pole No.	4
	Rotation Speed (r/min)	1500
	Temperature Rise (℃)	125
	Insulation class	H
	Voltage Regulation (0 load)	≥95%～105%
	Protection Grade	IP23

Our Picture :

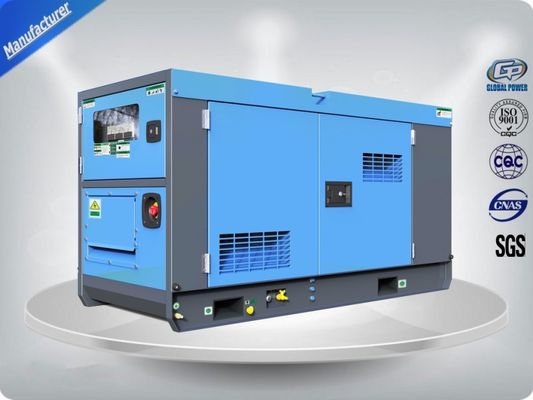

Custom Color 3 Phase Diesel Generator Mechanical Speed Governing 730Kw / 913Kva 0

Generator soundproof/Silent and canopy

Excellent ventilation
Black finish stainless steel locks and hinges
Zinc plated or stainless steel fasteners
Body made from steel components treated with polyester powder coating
Two large doors on either side
Radiator fill access plate
Fully guarded cooling fan and battery charging alternator
Fuel fill and battery access via lockable access doors
Emergency stop button on canopy exterior
Lube oil drain and radiator drain to exterior
Control panel viewing window
Lifting points on base frame

Our Service:

If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
Build customers’ profiles, follow-up service, make regular calls on customers.

Warranty and Maintenance:

Guarantee Period: One year or 1000 running hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent by air express.
24 hours service hotline is available for customers.
