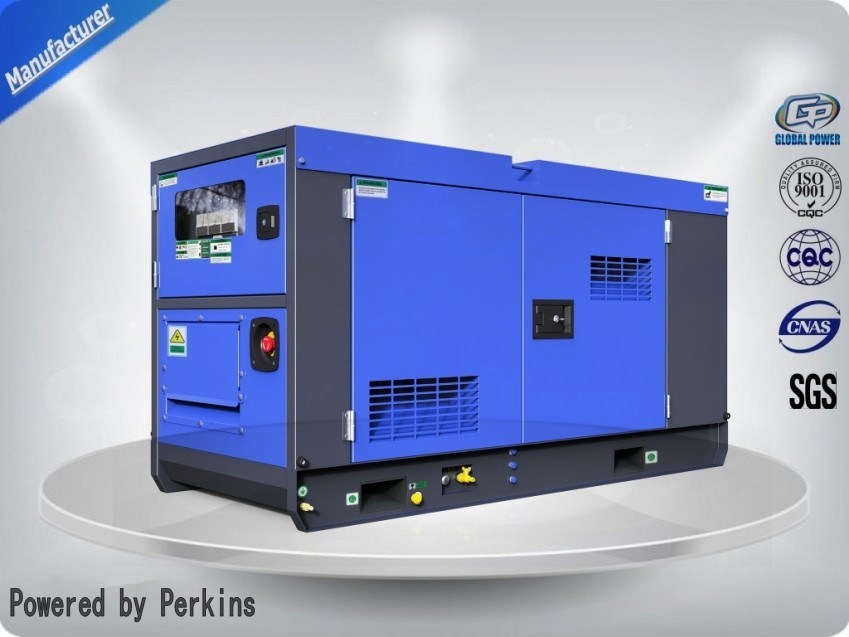

Name: 10kw -100kw Silent Diesel Generator Set with OEM / ISO9001 Certificate
Brand: WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
SKU: GP P10
Availability: InStock

MOQ:	1set
Price:	Negociable
Standard Packaging:	FOB, CRF,CIF,EXW…
Delivery Period:	25 working days after received down-payment
Payment Method:	T/T or LC
Supply Capacity:	2,000sets/year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

OEM/ISO9001

Model Number

GP P10

Engine Brand:

Perkins

Output Power (kw):

Prime Power (kw/kva):

8 / 10

Engine Model:

403A-15G1

Alternator Brand:

Stamford,Mecc-alte, Faraday, Copy Stamford

Soundproof Type- Dimension (L*W*H) (mm):

1800*750*1120

Package:

Plastic Foam Packing Or Plywood Case

Control Module Brand:

DeepSea,Comap,Smartgen

Highlight:

perkins cummins silent dg set

perkins silent diesel generator set

Product Description

10kw -100kw Silent Diesel Generator Set with OEM / ISO9001 Certificate

Technical Specifications:

Genset	Prime Power (kw/kva)		8 / 10
	Voltage Recovery Time		≤1S
	Rated Frequency (Hz)		50
	Frequency Recovery Time		≤5S
	Running Noise db(A)/7m(Silent type)		75
	Battery capacity (V-Ah)		12V 100Ah
	Soundproof Type- Dimension (LWH) (mm)		18007501120
	Soundproof Type-Weight (kg)		1080
Engine	Engine brand	Perkins
	Output Power (kw)	13
	Cylinder No. & Config.	3, in-line
	Combustion System	Indirect injection
	Engine Speed (r/min)	1500
	Speed Governing	Mechanical
	Starting System	12V DC Electric
	Filter System	Dry oil filter/Fuel filter/Oil filter
	Cooling system	Water-cooled
Alternator	Alternator brand	Stamford, Mecc-alte,Faraday…
	Excitation System	Brushless, self-exciting
	Voltage Regulation Mode	AVR
	Connection Type	3phase,4wires,”Y” connection
	Pole No.	4
	Rotation Speed (r/min)	1500
	Temperature Rise (℃)	125
	Insulation class	H
	Voltage Regulation (0 load)	≥95%～105%
	Protection Grade	IP23

Control system

10kw -100kw Silent Diesel Generator Set with OEM / ISO9001 Certificate 0

Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
Security password-protected programming levels
All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
Power supply range is wide, accommodating to different starting battery voltage environment
Built-in watch dog can never be dead halt, ensuring smooth program execution
Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

Specifications

Perkins series diesel genset--open, canopy or trailer types
Bowei Perkins-Series gensets are powered by Perkins diesel engines, 8-1800kW
With advantages of less power-weight ratio, which is 10% less than other brands, lower noise, less vibration, less fuel consumption and more space saving
Up to now, more than 17,000,000 Perkins power packs have been put into uses in various fields

Product superiority:

Economical fuel consumption system, to make sure excellent fuel atomization, effective combustion control and extremely low fuel consumption
Low emission contamination
Reliable power and tight compact structure
Excellent loading response specification: high impact load, primary load exceeds 70%, perfect startup performance
Easy to install and maintain
Full storage of accessories and more than 4000 service networks worldwide

Product:
10kw -100kw Silent Diesel Generator Set with OEM / ISO9001 Certificate 1

Factory Photo

10kw -100kw Silent Diesel Generator Set with OEM / ISO9001 Certificate 3
