1000Kw Open Type 3 Phase water cool Genset / Cummins Diesel Generator Set H Insulation Class

MOQ:	1set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets/year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

CE / ISO

Model Number

GP C1000

Engine Brand:

KTA50-G3

Engine Model:

4B3.9-G2

Engine Power:

1087kw

Displacement (L):

Alternator:

Stamford / Meecalt / Copy Stamford

Rated Frequency (Hz):

Rated Voltage:

400 / 230 V

Dimension (l*w*h/mm）:

4950*2253*2400

Weight(KG):

Control Module:

DeepSea , Comap , Smartgen.

Highlight:

1000kw cummins generator set

1000kw cummins diesel generator set

open cummins generator set

Product Description

1000Kw Open Type 3 Phase Genset / Cummins Diesel Generator Set H Insulation Class

Technical Specifications :

Genset	Prime Power (kw/kva)		1000/1250
	Standby Power (kw/kva)		1100/1375
	Voltage Recovery Time		≤1S
	Rated Current (A)		1801
	Rated Frequency (Hz)		50
	Frequency Recovery Time		≤5S
	Running Noise db(A)/7m(Silent type)		75
	Battery capacity (V-Ah)		24V 100Ah
	Fuel Tank Capacity(L)		/
Engine	Engine brand	Cummins
	Output Power (kw)	1087
	Cylinder No. & Config.	16, in 'V'
	Combustion System	direct injection
	Compression Ratio	13.9:1
	Displacement (L)	50.3
	Bore X Stroke (mm)	159*159
	Engine Speed (r/min)	1500
	Speed Governing	Electronical
	Starting System	24V DC Electric
	Filter System	Dry oil filter/Fuel filter/Oil filter
	Cooling system	Water-cooled
Alternator	Alternator brand	Stamford, Mecc-alte,Faraday…
	Excitation System	Brushless, self-exciting
	Voltage Regulation Mode	AVR
	Connection Type	3phase,4wires,”Y” connection
	Pole No.	4
	Rotation Speed (r/min)	1500
	Temperature Rise (℃)	125
	Insulation class	H
	Voltage Regulation (0 load)	≥95%～105%
	Protection Grade	IP23

Our Picture :

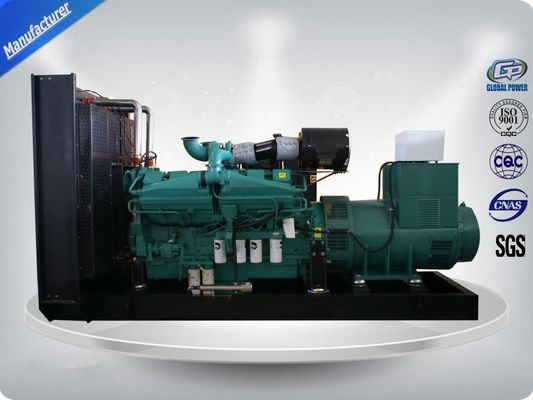

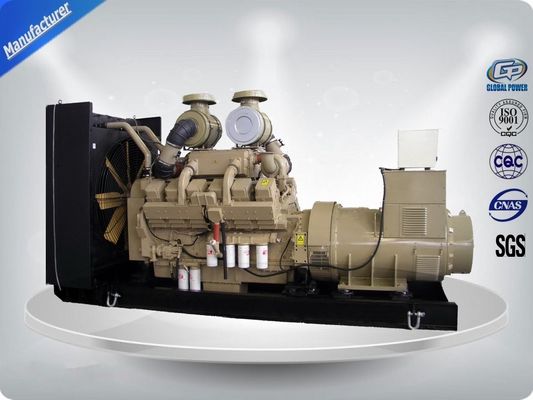

1000Kw Open Type 3 Phase water cool Genset / Cummins Diesel Generator Set H Insulation Class 0

Our Features :
1) Universal design and manufacture
2) Engineers are familiar with diesel generators powered by Cummins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door

Our advantages :
1. Inspection

Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

2. Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

Our Service :
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
