75 dB Perkins Deisel Generator Set , Silent Diesel Genset 20 kva / 400v

: Large Image : 75 dB Perkins Deisel Generator Set , Silent Diesel Genset 20 kva / 400v

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	OEM/ISO9001
Model Number:	GP P16

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negociable
Packaging Details:	FOB, CRF,CIF,EXW…
Delivery Time:	25 working days after received down-payment
Payment Terms:	T/T or LC
Supply Ability:	2,000sets/year

Contact Now

Detailed Product Description

Engine Brand:	Perkins	Prime Power (kw/kva):	16 / 20
Rated Voltage (V):	400 / 230	Engine Model:	404A-22G
Compression Ratio:	22.5:1	Displacement (L):	2.216
Speed Governing:	Mechanical	Fuel Tank Capacity(L):	70
Highlight:	genset silent generator set , silent diesel genset

75 dB Perkins Deisel Generator Set , Silent Diesel Genset 20 kva / 400v

Technical Specifications:

Genset	Prime Power (kw/kva)		16 / 20
	Voltage Recovery Time		≤1S
	Rated Frequency (Hz)		50
	Frequency Recovery Time		≤5S
	Running Noise db(A)/7m(Silent type)		75
	Battery capacity (V-Ah)		12V 100Ah
	Soundproof Type- Dimension (LWH) (mm)		18509001120
	Soundproof Type-Weight (kg)		1530
Engine	Engine brand	Perkins
	Output Power (kw)	20
	Cylinder No. & Config.	4, in-line
	Combustion System	Indirect injection
	Engine Speed (r/min)	1500
	Speed Governing	Mechanical
	Compression Ratio	23.3:1
	Displacement (L)	2.216
	Cooling system	Water-cooled
Alternator	Alternator brand	Stamford, Mecc-alte,Faraday…
	Excitation System	Brushless, self-exciting
	Voltage Regulation Mode	AVR
	Connection Type	3phase,4wires,”Y” connection
	Pole No.	4
	Rotation Speed (r/min)	1500
	Temperature Rise (℃)	125
	Insulation class	H
	Voltage Regulation (0 load)	≥95%～105%
	Protection Grade	IP23

Generator soundproof /Silent and canopy

Excellent ventilation
Black finish stainless steel locks and hinges
Zinc plated or stainless steel fasteners
Body made from steel components treated with polyester powder coating
Two large doors on either side
Radiator fill access plate
Fully guarded cooling fan and battery charging alternator
Fuel fill and battery access via lockable access doors
Emergency stop button on canopy exterior
Lube oil drain and radiator drain to exterior
Control panel viewing window
Lifting points on base frame

Our Service:

If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
Build customers’ profiles, follow-up service, make regular calls on customers.

Warranty and Maintenance:

Guarantee Period: One year or 1000 running hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent by air express.
24 hours service hotline is available for customers.

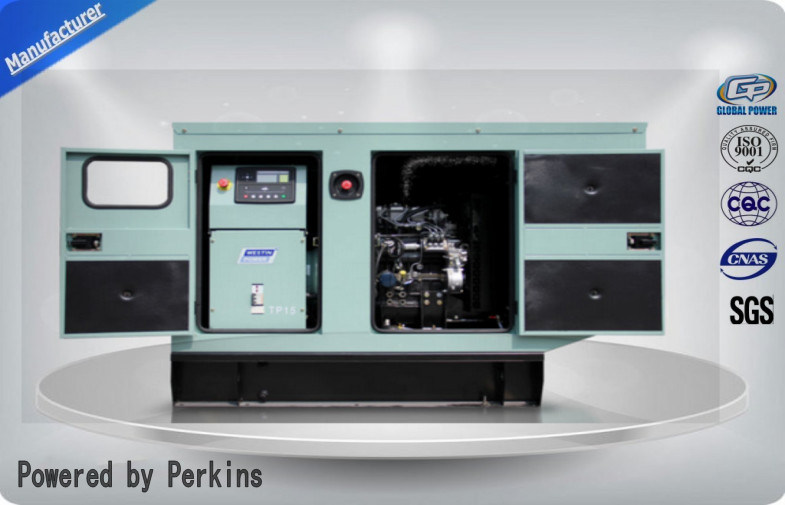

Product Picture:
75 dB Perkins Deisel Generator Set , Silent Diesel Genset 20 kva / 400v
