Product Details:
Payment & Shipping Terms:
|
| Output Type: | AC Three Phase | Rated Voltage:: | 400/230V |
|---|---|---|---|
| Prime Power (kw/kva): | 30/37.5 | Standby Power(kw/kva): | 33/42 |
| Engine Model: | Cummins -4BT3.9-G/36 | Alternator Brand: | Stamford,Mecc-alte, Faraday, Copy Stamford |
| Frequency: | 50Hz | Weight(kg): | 700 |
| Dimension Size(L*W*H/mm): | 1770*750*1130 | Package: | Plastic Foam Or Plywood Case |
| Control Module Brand: | DeepSea,Comap,Smartgen | ||
| Highlight: | brushless alternator generator,engine generator set |
||

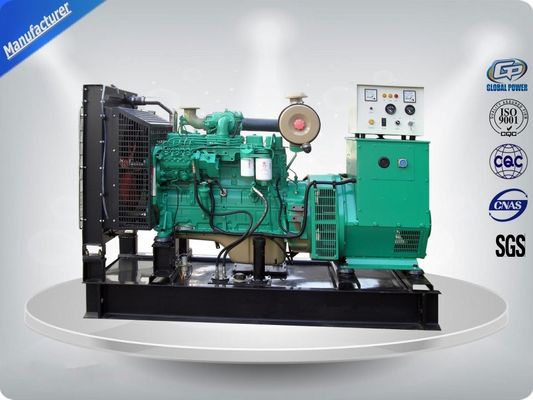

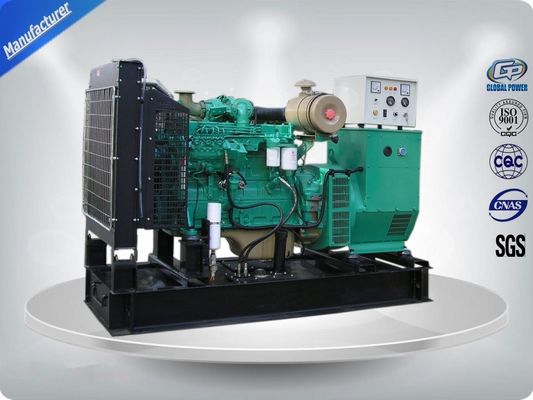

50Hz 3 Phase Open Diesel Generator Durable With Electronic Speed Govering
Our Features :
1) Universal design and manufacture
2) Engineers are familiar with diesel generators powered by Cummins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door
Technical Specifications:
|
Genset |
Prime Power (kw/kva) |
30/37.5 |
|
|
Voltage Recovery Time |
≤1S |
||
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
12V 100Ah |
||
|
Open Type-Dimension (L*W*H) (mm) |
1770*750*1130 |
||
|
Open Type-Weight (kg) |
700 | ||
|
Soundproof Type- Dimension (L*W*H) (mm) |
2500*1000*1300 |
||
|
Soundproof Type-Weight (kg) |
1120 |
||
|
Fuel Tank Capacity(L) |
120 |
||
|
Engine |
Engine brand |
Cummins |
|
|
Output Power (kw) |
36 |
||
|
Cylinder No. & Config. |
4, in-line |
||
|
Combustion System |
direct injection |
||
|
Compression Ratio |
16.5:1 |
||
|
Displacement (L) |
3.9 |
||
|
Bore X Stroke (mm) |
102*120 |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Mechanical |
||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday… |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3 phase,4 wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
|
Protection Grade |
IP23 |
||
Control system
Brand: DeepSea,Comap,Smartgen
feature:
Our Factory :
Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
