Name: Thick Soundproof Canopy Generator Set Water Cooled / Diesel Engine Weichai Generator Set
Brand: WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
SKU: GPk24
Availability: InStock

MOQ:	1 set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets / year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

CQC / ISO

Model Number

GPk24

Engine Brand::

Cummins,perkins, MTU.Xuchai,Vman,Doosan..available

Rated Power (kw)::

24/30

Alternator Brand::

Stamford / Meecalt / Copy Stamford

Engine Model::

KOFO-K4100DS/30

Frequency (Hz):

50 OR 6O Hz

Generator Type::

Open, Soundproof, Mobile Trailer

Controller Brand:

Comap,SmartGen, DeepSea

Control Module:

HGM410

Loading Port:

Shanghai, Ningbo.....

Power Range Of Cummins:

25-125kva

Highlight:

soundproof diesel generator set

soundproof diesel electric generator

canopy diesel generator set

Product Description

Thick Soundproof Canopy Generator Set Water Cooled / Diesel Engine Weichai Generator Set

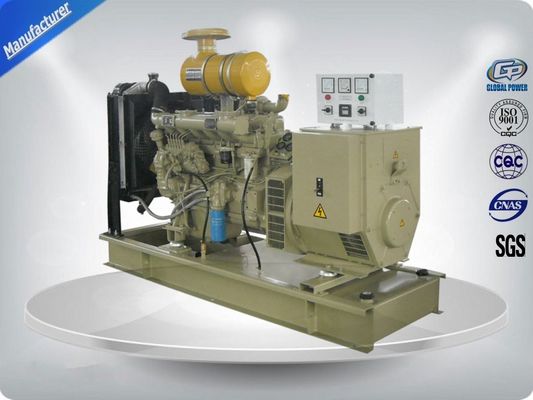

Specification of Genset
Genset model	GPK24
Prime power	30KVA/24KW
Standby power	33KVA/26KW
Rated frequency	50HZ
Rated speed	1500RPM
Noise Level	72dB(A)@7m
Specification of Diesel Engine
Engine brand&model	WEICHAI (Kofo) K4100DS
No of cylinders	4
Cylinder arrangement	Vertical in-line
Cycle	Four stroke
Aspiration	Water cooling, natural aspirated
Bore*stroke	100×115
Displacement	3.61
Speed governor	Electronic
Cooling system	Forced water cooling cycle
Fuel consumption at 100% load	243g.kw/h
Starting method	DC12V electrical starting
Specificaion of Alternator
Alternator brand&model	brushless alternator GP184G
No. of phase	3
Connecting type	3 Phase and 4 Wires
No. of bearing	1
Protection grade	IP 23
Insulation class	H
Altitude	≤1000m
Exciter type	Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Telephone influence factor(TIF)	≤50
THF	≤2%
Voltage regulation, Steady state	≤±1%
Transient state voltage	≤-15%~+20%
Specification of Control Panel
Brand&Model	SmartGen-HGM410
The control panel is equipped with display of voltage, current, frequency, water temperature, oil pressure.
The genset with low oil pressure, high water temperature, over speed and over load protection function.

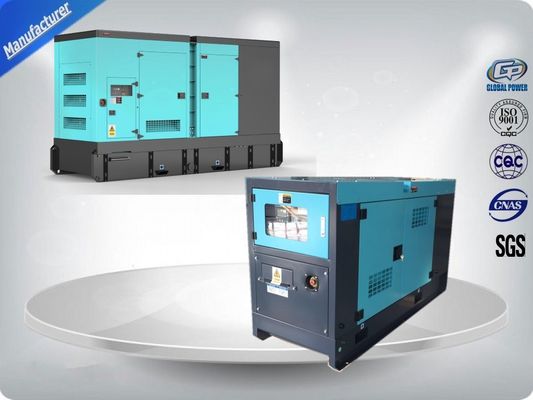

Thick Soundproof Canopy Generator Set Water Cooled / Diesel Engine Weichai Generator Set 0

Package:

Thick Soundproof Canopy Generator Set Water Cooled / Diesel Engine Weichai Generator Set 1

Features and benefits

l Tightly structure, excellent design and craft

l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)

l Self-diagnostic capability simplifies troubleshooting

l LCD display shows system status and setup information

l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality

l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.

l Enclosed muffler for added quietness

l Service and maintenance accessible through easy-latch side service door

Quality control of Global power Genset

Thick Soundproof Canopy Generator Set Water Cooled / Diesel Engine Weichai Generator Set 2

1. The genset canopy can be designed by customers demand free of charge.

2. Noise level can be designed by customer demand, standard noise level is 70-73DB at 7m. Super silent is 60-65DB at7m.

3. Canopy color can be painted free of charge by customer demand. It is high quality paint.

4. All connection components and door lock are stainless steel.

5. We added oil filling inlet with lock

6. The oil box is separate madeand then welded to the base frame, not by simple welding on the base frame. It is to make sure there is no oil leakage

7. The base frame is with forklift mouthwhich is easy to load and discharge

8. For Logo, we can paint customer's logo when the order is more than 5sets.

9. For technical specification or question, we can support you by our strong technical team.
