Product Details:
Payment & Shipping Terms:
|
| Land Use Type Of Unit: | Ordinary | Excitation Mode:: | AC Rotating Exciter |
|---|---|---|---|
| Standby Power(kw/kva): | 220kw/275kva | China Engine Brand: | Xichai, KOFO, Weichai, Vman, Yangdong, Isuzu. |
| Alternator Brand: | Stamford, Mecc-alte, Faraday, Global Power | Frequency: | 50HZ / 60HZ |
| Genset Type: | Open,Silent, Mobile Trailer.. | Output Type: | AC, Three Phase |
| Speed Governor: | Electronic | Control Module: | DeepSea, Comap, Smartgen |
| Highlight: | brushless synchronous generator,brushless alternator generator |
||

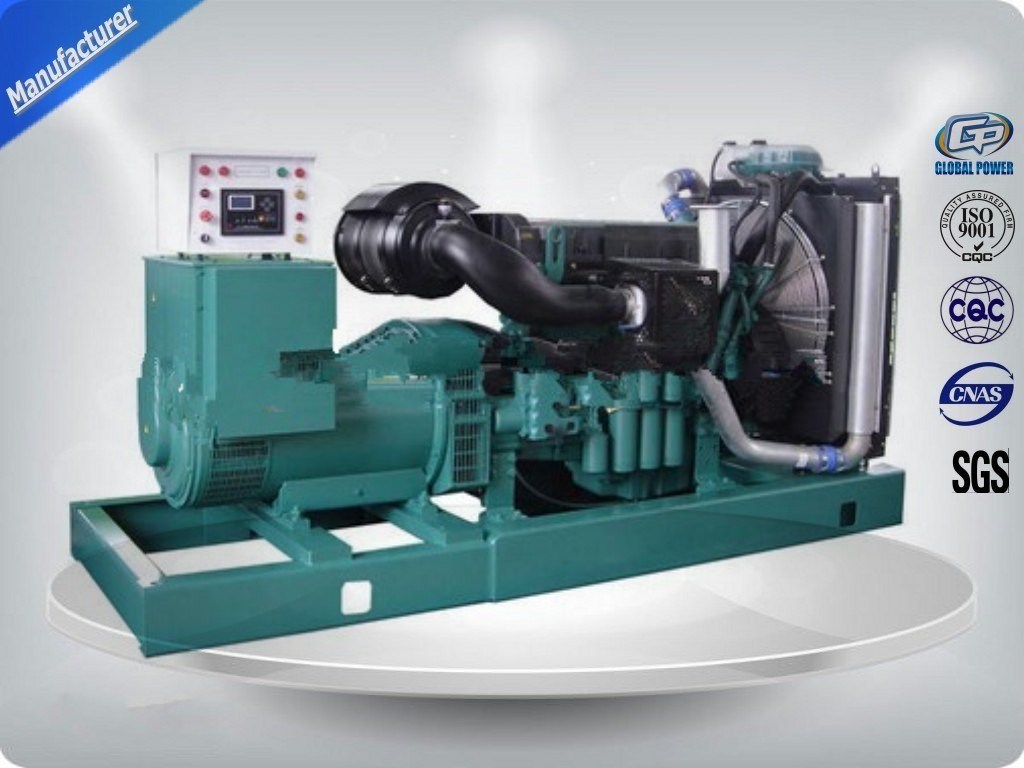

Silent / Open Diesel Generator Set 1500RPM IP23 Protection Grade made in china
Technical Specifications:
|
Genset |
Voltage Recovery Time |
≤1S |
|
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
12V 100Ah |
||
|
Engine |
Cylinder No. & Config. |
in-line |
|
|
Combustion System |
direct injection |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Mechanical / Electronic |
||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday… |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
|
Protection Grade |
IP23 |
||

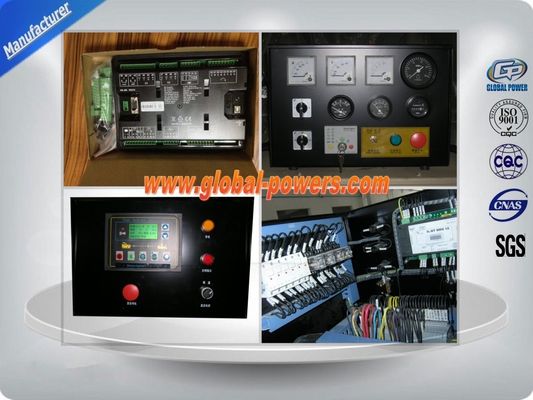

Control system
Package:
Global Power advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
