Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Cummins | Engine Model: | 4BTA3.9-G2 |
|---|---|---|---|
| Engine Output: | 50kw | Type: | Open |
| Alternator: | Stamford / Meecalt / Copy Stamford | Canopy Size (l*w*h/mm）: | 2320*1000*1400 |
| Canopy Weight(KG): | 1970 | Control Module: | DeepSea , Comap , Smartgen. |
| Cooling System: | Water-cooled | Speed Governing: | Electronic |
| Highlight: | brushless synchronous generator,brushless alternator generator |
||

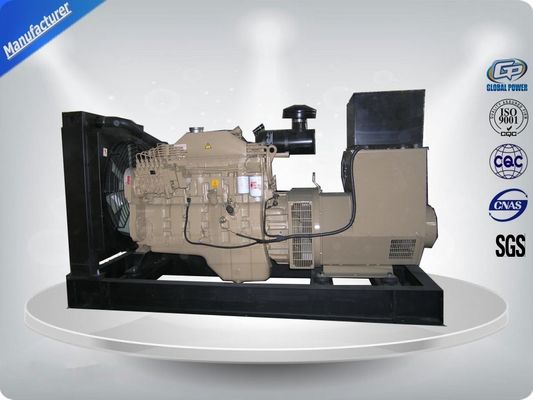

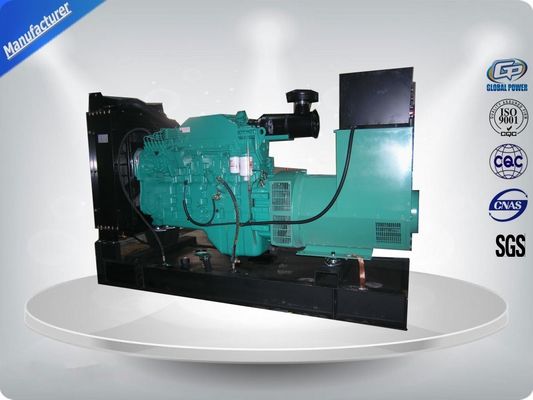

4BT3.9-G2 Cummins Engine Open Diesel Generator Set Water- cooled 50kw / 63kva
Our Features :
1) Universal design and manufacture
2) Engineers are familiar with diesel generators powered by Cummins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door
Technical Specifications :
|
Genset |
Prime Power (kw/kva) |
50 / 63 |
|
|
Standby Power (kw/kva) |
55 / 69 |
||
|
Voltage Recovery Time |
≤1S |
||
|
Rated Current (A) |
90 |
||
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
12V 100Ah |
||
|
Fuel Tank Capacity(L) |
100 |
||
|
Engine |
Engine brand |
Cummins |
|
|
Output Power (kw) |
50 |
||
|
Cylinder No. & Config. |
4, in-line |
||
|
Combustion System |
direct injection |
||
|
Compression Ratio |
16.5:1 |
||
|
Displacement (L) |
3.9 |
||
|
Bore X Stroke (mm) |
102*120 |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Electronic |
||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday… |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
|
Protection Grade |
IP23 |
||
Control system
Brand: DeepSea,Comap,Smartgen
feature:
Our Factory :
Guarantee;
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
