Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Cummins | Engine Model: | 6CTA8.3-G2 |
|---|---|---|---|
| Output Power: | 163 Kw | Cooling System: | Water-cooled |
| Alternator: | Stamford / Meecalt / Copy Stamford | Fuel Tank Capacity: | 250 L |
| Rated Voltage: | 400 / 230 V | Dimension (l*w*h/mm）: | 2360*850*1487 |
| Weight: | 1470 Kg | Control Module: | DeepSea , Comap , Smartgen. |
| Highlight: | brushless synchronous generator,brushless alternator generator |
||

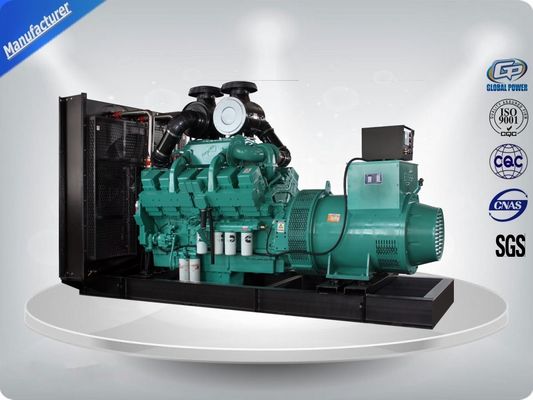

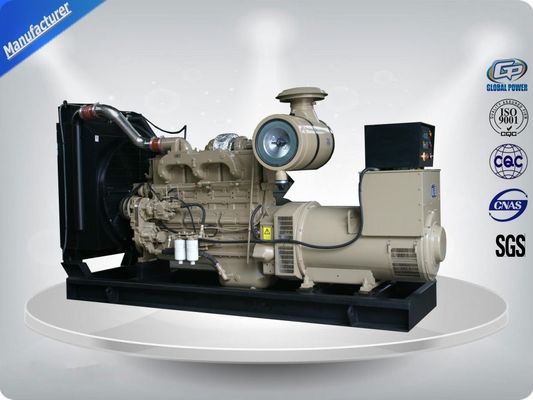

180Kva Prime Power Open Diesel Generator Water-cooled With 4 Wires Connection
Our Features :
1) Universal design and manufacture
2) Engineers are familiar with diesel generators powered by Cummins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door
Technical Specifications :
|
Genset |
Prime Power (kw/kva) |
144 / 180 |
|
|
Standby Power (kw/kva) |
158 / 198 |
||
|
Voltage Recovery Time |
≤1S |
||
|
Rated Current (A) |
260 |
||
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
24V 100Ah |
||
|
Fuel Tank Capacity(L) |
250 |
||
|
Engine |
Engine brand |
Cummins |
|
|
Output Power (kw) |
163 |
||
|
Cylinder No. & Config. |
4, in-line |
||
|
Combustion System |
direct injection |
||
|
Compression Ratio |
16.5:1 |
||
|
Displacement (L) |
8.3 |
||
|
Bore X Stroke (mm) |
114*135 |
||
|
Engine Speed (r/min) |
1500 |
||
|
Fuel Consumption (g/kw·h) |
215 |
||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday… |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
|
Protection Grade |
IP23 |
||
Control system
Brand: DeepSea,Comap,Smartgen
feature:
Our Picture :
Guarantee;
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
