Product Details:
Payment & Shipping Terms:
|
| Engine: | MTU, Cummins, Perkins, VMAN Available | Alternator:: | Stamford / Meecalt / Copy Stamford |
|---|---|---|---|
| Engine Model:: | KTA38-G2B | Rated Frequency (Hz): | 50 |
| Type:: | Container | Rated Voltage (V): | 400/230 |
| Dimension L*W*H/mm: | 4300*1500*2000 | Weight/kg: | 6600 |
| Highlight: | containerised generator set,3 phase diesel generator |
||

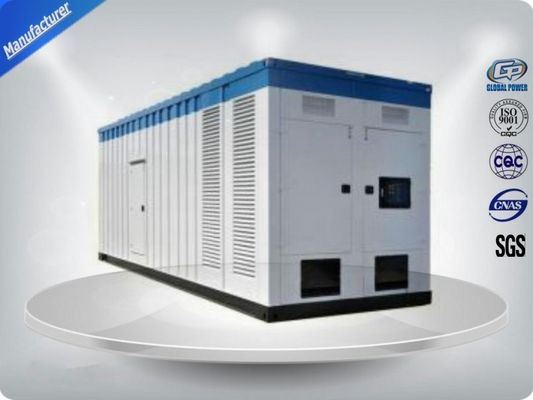

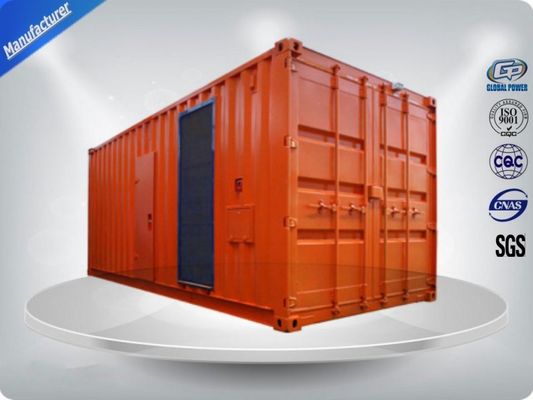

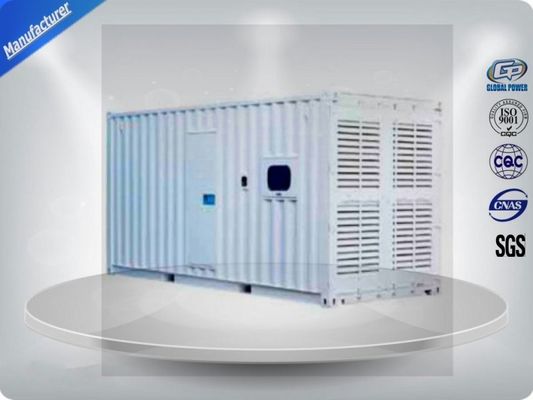

Silent Containerised Generator Set , VMAN Canopy Generator Set 630-780 Kw/Kva
Generator data
Diesel Generator GPVM630 (three phase)
Prime Power (kw/kva) | 630/788 |
Standby Power (kw/kva) | 693/866 |
Rated Voltage (V) | 400/230 |
Voltage Recovery Time | ≤1S |
Rated Current (A) | 1137 |
Rated Frequency (Hz) | 50 |
Frequency Recovery Time | ≤5S |
Wave Distortion | ≤5%, sine wave |
Running Noise db(A)/7m(Silent type) | 75 |
Battery capacity (V-Ah) | 12V 100Ah |
Open Type-Dimension (L*W*H) (mm) | 4300*1500*2000 |
Open Type-Weight (kg) | 6600 |
Soundproof Type- Dimension (L*W*H) (mm) | / |
Soundproof Type-Weight (kg) | / |
Fuel Tank Capacity(L) | / |
Continuous Running Time(hr.) | 6 |
Engine specifications
Engine
Main features:
l Sixteen-cylinder, water-cooled, in “V” diesel engine
l Efficient fuel system for max power output and durability
l Large-capacity air cleaner
l Cost effective, fuel efficient and reliable performance
l Functional engine with compact structure
l Excellent after-sales service and sufficient spare parts supplying
l Easy installation and ready access for routine maintenance
Engine specifications
Engine
Main features:
l Sixteen-cylinder, water-cooled, in “V” diesel engine
l Efficient fuel system for max power output and durability
l Large-capacity air cleaner
l Cost effective, fuel efficient and reliable performance
l Functional engine with compact structure
l Excellent after-sales service and sufficient spare parts supplying
l Easy installation and ready access for routine maintenance
Technical data
Model D30A3
Engine brand | VMAN |
Output Power (kw) | 705 |
Cylinder No. & Config. | V16 type |
Combustion System | direct injection |
Compression Ratio | 14.6:1 |
Displacement (L) | 29.235 |
Bore X Stroke (mm) | 128*142 |
Engine Speed (r/min) | 1500 |
Speed Governing | Electronic |
Idling Speed(r/min) | 700±50 |
Governor Efficiency | ≤3% |
Cooling system | Water-cooled |
Aspiration Type | Ti |
Starting System | 24V DC Electric |
Fuel Consump. (g/kw·h) | 198 |
Features and benefits
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
