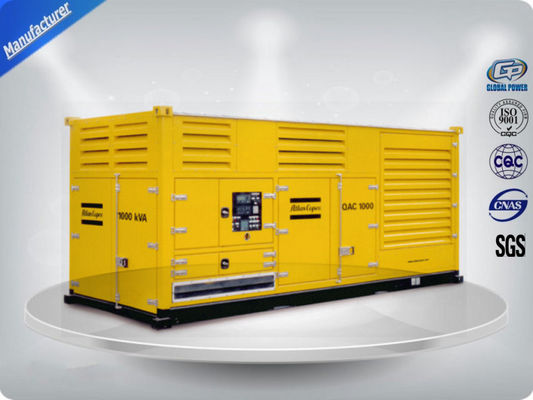

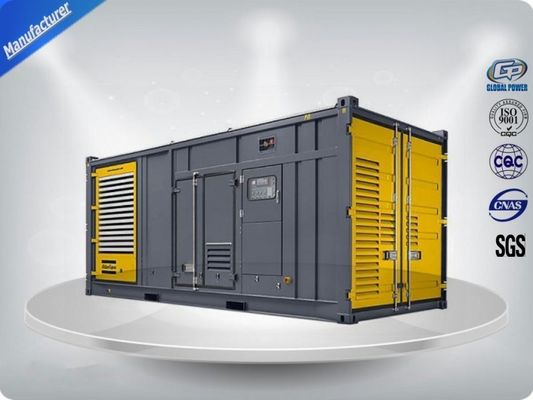

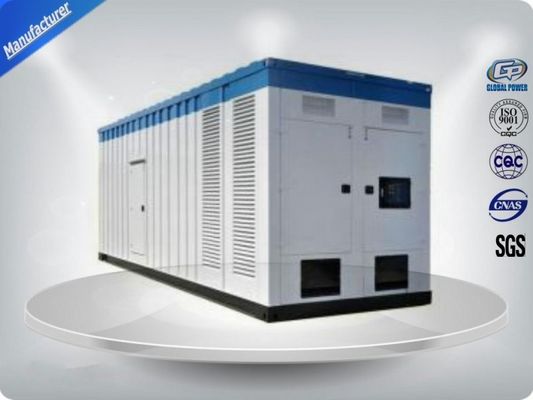

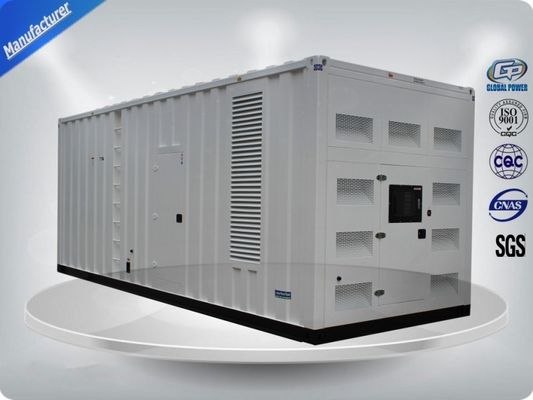

Name: Stamford Alternator Genset Silent Generator Set Canopy Type 700-875 Kw / Kva
Brand: WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
SKU: GP VM700
Availability: InStock

MOQ:	1 set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets / year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

CE / ISO

Model Number

GP VM700

Engine:

MTU, Cummins, Perkins, VMAN Available

Alternator::

Stamford / Meecalt / Copy Stamford

Engine Model::

KTA38-G2B

Rated Frequency (Hz):

Type::

Container

Rated Voltage (V):

400/230

Dimension L*W*H/mm:

4300*1500*2000

Weight/kg:

6600

Highlight:

Stamford Alternator silent generator set

Canopy Type silent generator set

875 Kw / Kva generator set silent

Product Description

Stamford Alternator Genset Silent Generator Set Canopy Type 700-875 Kw / Kva

Generator data

Diesel Generator GPVM700 (three phase)

Prime Power (kw/kva)	700/875
Standby Power (kw/kva)	770/963
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	1263
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	12V 100Ah
Open Type-Dimension (LWH) (mm)	430015002000
Open Type-Weight (kg)	6700
Soundproof Type- Dimension (LWH) (mm)	/
Soundproof Type-Weight (kg)	/
Fuel Tank Capacity(L)	/
Continuous Running Time(hr.)	6

Engine specifications

Engine
Main features:

l Sixteen-cylinder, water-cooled, in “V” diesel engine

l Efficient fuel system for max power output and durability

l Large-capacity air cleaner

l Cost effective, fuel efficient and reliable performance

l Functional engine with compact structure

l Excellent after-sales service and sufficient spare parts supplying

l Easy installation and ready access for routine maintenance

Stamford Alternator Genset Silent Generator Set Canopy Type 700-875 Kw / Kva 0

Engine specifications

Engine
Main features:

l Sixteen-cylinder, water-cooled, in “V” diesel engine

l Efficient fuel system for max power output and durability

l Large-capacity air cleaner

l Cost effective, fuel efficient and reliable performance

l Functional engine with compact structure

l Excellent after-sales service and sufficient spare parts supplying

l Easy installation and ready access for routine maintenance

Technical data
Model D30A2

Engine brand	VMAN
Output Power (kw)	795
Cylinder No. & Config.	V16 type
Combustion System	direct injection
Compression Ratio	14.6:1
Displacement (L)	29.235
Bore X Stroke (mm)	128*142
Engine Speed (r/min)	1500
Speed Governing	Electronic
Idling Speed(r/min)	700±50
Governor Efficiency	≤3%
Cooling system	Water-cooled
Aspiration Type	Ti
Starting System	24V DC Electric
Fuel Consump. (g/kw·h)	198

Stamford Alternator Genset Silent Generator Set Canopy Type 700-875 Kw / Kva 1

Features and benefits

l Tightly structure, excellent design and craft

l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)

l Self-diagnostic capability simplifies troubleshooting

l LCD display shows system status and setup information

l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality

l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.

l Enclosed muffler for added quietness

l Service and maintenance accessible through easy-latch side service door
