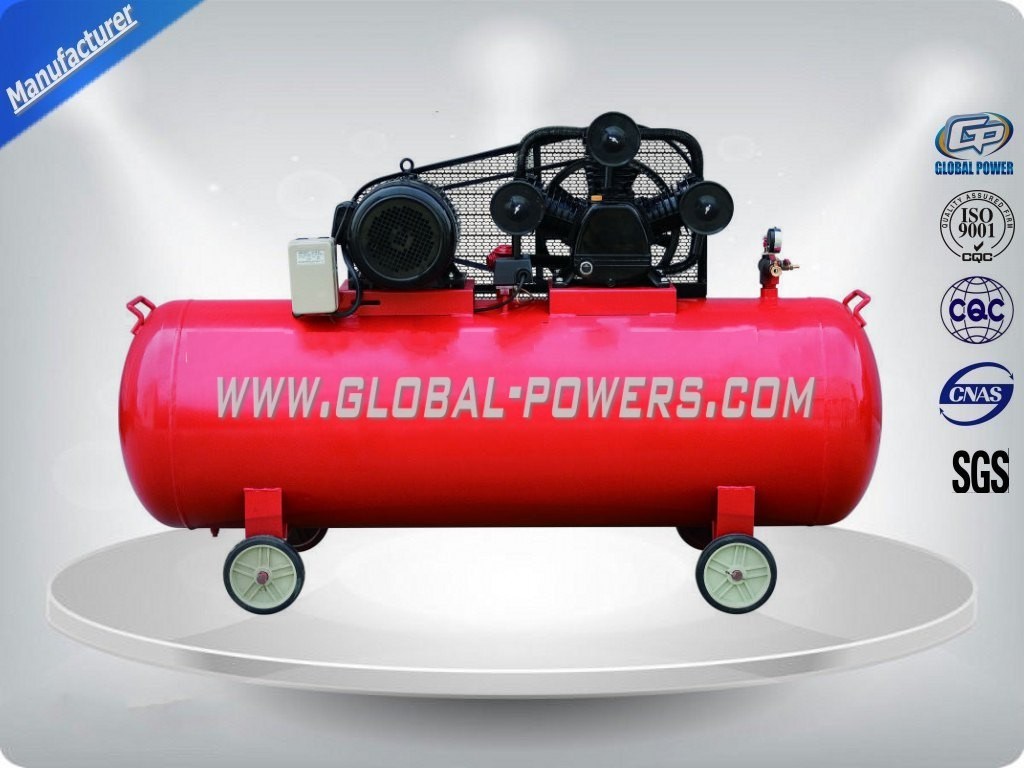

Blow Moulding High Pressure Air Compressor / Reciprocating Air Compressor With Tank
  • name
  • name

Blow Moulding High Pressure Air Compressor / Reciprocating Air Compressor With Tank

MOQ: 5 pcs
Price: Negociable
Standard Packaging: Plywood case
Delivery Period: 20 days
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Global Power
Certification
ISO
Model Number
GP
Air Delivery Rate:
1.6m3/Min
Working Pressure:
30bar
Type:
Piston Reciprocating Drive
Mode:
AC Electric Motor Lubrication
Style:
Oil Lubricated
Weight:
600kg
Market:
Global
HS Code:
8414809090
Highlight:

high pressure electric air compressor

,

high pressure portable air compressor

Product Description

Blow Moulding High Pressure Air Compressor / Reciprocating Air Compressor With Tank

Product Description:

Our 30bar Bottle Blow Moulding AC Electric Reciprocating Piston Air Compressor with Tank is applied to industries as PET bottle blowing, air leak test, pressure test etc. our compressor can run 24h/7dcontinually.

  • Valve plate: made from Sweden SS
  • Piston ring: monomer cast piston rings, lifetime 3 times
  • Piston: boosting piston is cast by heavy duty cast iron
  • Connecting rod: connecting rod with needle bearing
  • Crankshaft: heavy duty, low noise, long lifetime
  • Block cooling fan wheel: moving balance iron wheel fan to reduce vibration
  • Pressure controller: imported renowned brand
  • Cooling & filtration: high efficiency cooling and filtration from 1st to 2nd stage, 2nd stage low temperature and clean
  • Drain: auto electric drain (option)

Model Specification:

3Mpa piston air compressor

Block type PISTON PISTON PISTON PISTON PISTON PISTON PISTON
Volume(m3/min) 0.6 0.8 1.0 1.2 1.6 2.0 3.0
W.Pressure(Mpa) 3.0 3.0 3.0 3.0 3.0 3.0 3.0
RPM(r/min) 830 800 780 780 830 830 780
Lubrication splash splash splash splash splash splash splash
drive belt belt belt belt belt belt belt
cooling Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling
Motor power(Kw) 7.5 7.5 11 15 18.5 2X11 30
Power source(v/Hz) 380/50 380/50 380/50 380/50 380/50 380/50 380/50
noise(dB (A)) ≤72 ≤72 ≤78 ≤78 ≤85 ≤85 ≤85
Cylinders diameter(mm) 2X¢95
¢55		 2X¢100
¢55		 2X¢120
¢65		 2X¢120
¢65		 2X¢135
¢120
¢65		 4X¢120
2X¢55		 ¢210
¢120
¢100
size(mm) 1470(L)
530(W)
1020(H)		 1490(L)
600(W)
1160(H)		 1550(L)
730(W)
1280(H)		 1620(L)
730(W)
1280(H)		 1900(L)
850(W)
1600(H)		 1900(L)
900(W)
1400(H)		 1850(L)
1000(W)
1100(H)
weight(Kg) 290 430 480 520 600 600 1150



Blow Moulding High Pressure Air Compressor / Reciprocating Air Compressor With Tank 0


Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.

Company Profile:

Wuxi Global Power Technology Co., Ltd is located in national Hi-tech Nanchang district, Wuxi city, Jiangsu, China, which is famous as the ‘source of power’. Our company is a key-enterprise of being engaged in research, development, manufacture and exportation of energy-saving and environment-friendly generating sets, related parts and supporting equipment.
We mainly produced “Global Power” brand three-phase brushless synchronous alternators and many kinds of diesel generator sets, such as open generator, silent/soundproof generator, outdoor power plant, containerized gensets, trailer gensets and equipments of construction machinery like mobile light tower, forklift, air-compressor and so on.
