Permanent Magnet Horizontal Electric Air Compressor With Lubricated System

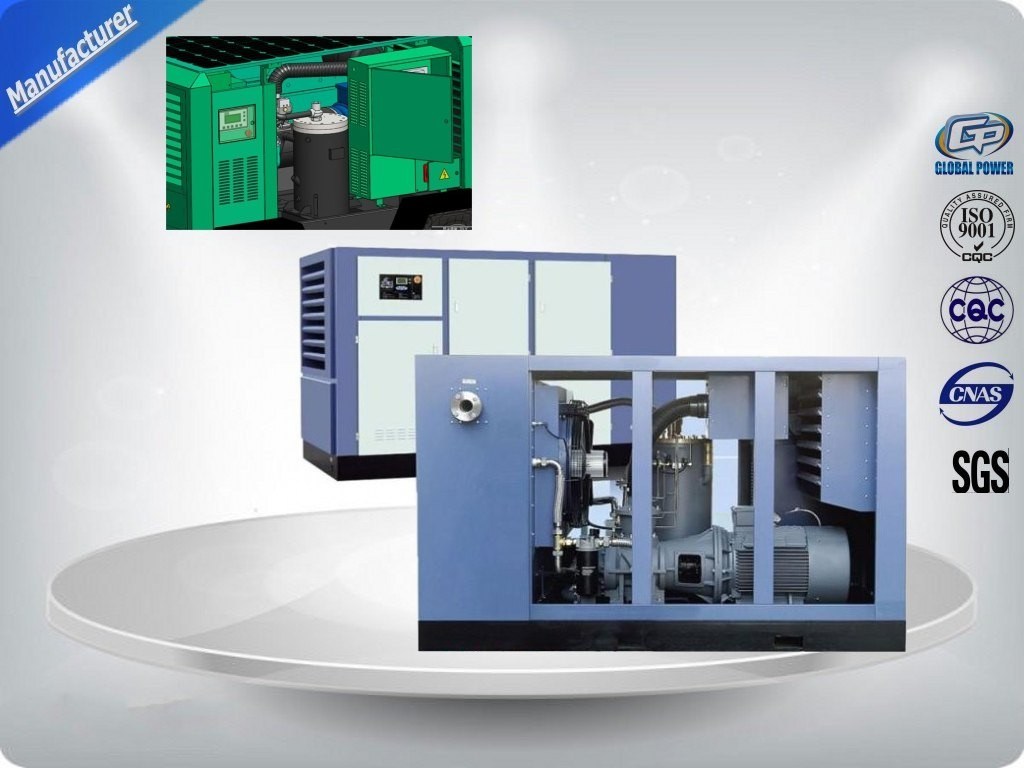

Large Image : Permanent Magnet Horizontal Electric Air Compressor With Lubricated System

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	ISO
Model Number:	GP

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negociable
Packaging Details:	Plastic Foam / Carton / Plywood Case
Delivery Time:	20-30 days
Supply Ability:	2000 sets

Contact Now

Detailed Product Description

Starting Mode:	Soft Start	Configuration:	Stationary
Performance:	Low Noise	Color:	Can Be Customized
Power Supply:	380V/3PH/50HZ	Air Dew Point:	-45℃
Cooling Mode:	Air Cooling Or Water Cooling	Market:	Global
Highlight:	portable air compressor , quiet air compressor

Permanent Magnet Horizontal Electric Air Compressor With Lubricated System

Product Specification:

Motor Power: 30Hp, 22KW
Capacity F.A.D: 1.0~3.8 m3/min
Working Pressure: 0.7~1.0Mpa
Cooling Mode: Air cooling or water cooling, according to customers' demamd
Starting Mode: Variable Frequency soft start
Connection Mode: Integrated connection
Highlight: super energy saving screw air compressor with remote monitoring system
Technical Parameters of Baldor Permanent Magnet screw air compressor

Capacity F.A.D m3/min		0.7~1.0	0.8~2.6	1.0~3.8	1.9~6.8	2.3~8.4	3.0~11.0	4.5~15.0	5.0~16.8	6.5~21.5	7.6~25.3
Ambient Temp.		ºC	-5 ~ 40 ºC
Cooling Mode		Air cooling or water cooling
Discharge Temp.		ºC	Air cooling: Ambient temp. + 10ºC; Water cooling: < 40ºC
Lubricant Oil Volume		Liter	18		30			65		90
Noise		dB[A]	65±2			68±2			75±2
Driven Mode		Variable Frequency Synchronization
Power Supply		220V/380/415V, 50/60Hz, 3Ph
Motor Power		Hp	20	30	50	60	75	100	125	150	175
		KW	15	22	37	45	55	75	90	110	132
Starting Mode		Soft start
Dimension	L	mm	1250		1450	1600		1800		2200
	W	mm	800		900	1150		1250		1550
	H	mm	1000		1125	1250		1550		1800
Weight		Kg	400	450	610	900	930	1080	1280	2880	3080
Air outlet dia.		inch	ZG1¼''		ZG1½''	ZG2''			ZG 2½''

Features of Baldor Permanent Magnet Inverter Screw Air Compressors
1. The airend and motor is integrated connected with each other. More compact system structure makes smaller size and smaller space to be occupied on site.
2. The system efficiency is 12%~18% higher than normal fixed speed compressor. The energy saving level is above the first class standard according to GB19153-2009.
3. More intelligent controlling system. The air capacity and system temperature could be adjusted automatically. The compressor is running in a stable temperature. The operation would be very easy.
4. Rational design to optimize the system reliability and ensure an easy maintenance.
5. A computer network remote monitoring system is used in the controller. Users can send orders to the controller according to the displayed data to realize a remote control to the air compressor.

Characters:
*Oil-injected, portable towable diesel drive screw compressor.
* Original imported key components.
* Low Energy Consumption, Low running and maintenance cost.
* Aptitude and intelligent Control, PLC control, LCD displayer.
* Unique safe units make whole compressor more safety, more stable, less noise, less energy loss.
* Main motor rotation control.
* Automatic reminding and alarm on the PLC displayer for replacement of filter/oil/separator when times up.
* Protection against temperature reaching maximum or minimum level.
* Protection against over-pressure on the oil receiver (equipped a safety valve, once over-pressure, the safety valve will open and release pressure).
* High oil temperature control (equipped temperature sensor, display temperature on PLC displayer, alarm when over-temperature).
* The compressor will automatically start when the pressure of outlet air flow is low than rating value.
* History of default.
* Protection against over-loaded, short circuit and under-voltage.
* Easy for installation, operation, maintainence.
