20 Kva 400V Powerful open type Perkins Diesel Generator Set 125℃ Temperature Rise

MOQ:	1set
Price:	Negociable
Standard Packaging:	FOB, CRF,CIF,EXW…
Delivery Period:	25 working days after received down-payment
Payment Method:	T/T or LC
Supply Capacity:	2,000sets/year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

OEM/ISO9001

Model Number

GP P16

Engine Brand:

Perkins

Prime Power (kw/kva):

16 / 20

Rated Voltage (V):

400 / 230

Engine Model:

404A-22G

Compression Ratio:

22.5:1

Displacement (L):

2.216 L

Speed Governing:

Electronic

Fuel Tank Capacity:

Highlight:

open type perkins diesel generator

400v diesel generator set

400v perkins diesel generator

Product Description

20 Kva 400V Powerful Perkins Diesel Generator Set 125℃ Temperature Rise

Our Features :
1) Universal design and manufacture
2) Engineers are familiar with diesel generators powered by Perkins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door

Technical Specifications:

Genset	Prime Power (kw/kva)		16 / 20
	Voltage Recovery Time		≤1S
	Rated Frequency (Hz)		50
	Frequency Recovery Time		≤5S
	Running Noise db(A)/7m(Silent type)		75
	Battery capacity (V-Ah)		12V 100Ah
	Soundproof Type- Dimension (LWH) (mm)		18509001120
	Soundproof Type-Weight (kg)		1530
Engine	Engine brand	Perkins
	Output Power (kw)	20
	Cylinder No. & Config.	4, in-line
	Combustion System	Indirect injection
	Engine Speed (r/min)	1500
	Fuel Consumption (g/kw·h)	237
	Compression Ratio	23.3:1
	Displacement (L)	2.216
	Cooling system	Water-cooled
Alternator	Alternator brand	Stamford, Mecc-alte,Faraday…
	Excitation System	Brushless, self-exciting
	Voltage Regulation Mode	AVR
	Connection Type	3phase,4wires,”Y” connection
	Pole No.	4
	Rotation Speed (r/min)	1500
	Temperature Rise (℃)	125
	Insulation class	H
	Voltage Regulation (0 load)	≥95%～105%
	Protection Grade	IP23

Control system:

Brand: DeepSea,Comap,Smartgen

feature:

Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
Security password-protected programming levels
All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
Power supply range is wide, accommodating to different starting battery voltage environment
Built-in watch dog can never be dead halt, ensuring smooth program execution
Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

Our Service:

If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
Build customers’ profiles, follow-up service, make regular calls on customers.

Warranty and Maintenance:

Guarantee Period: One year or 1000 running hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent by air express.
24 hours service hotline is available for customers.

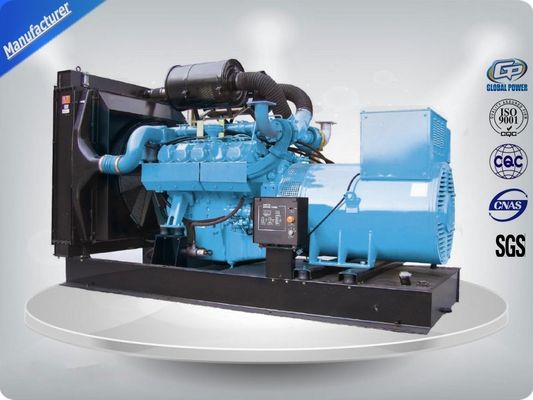

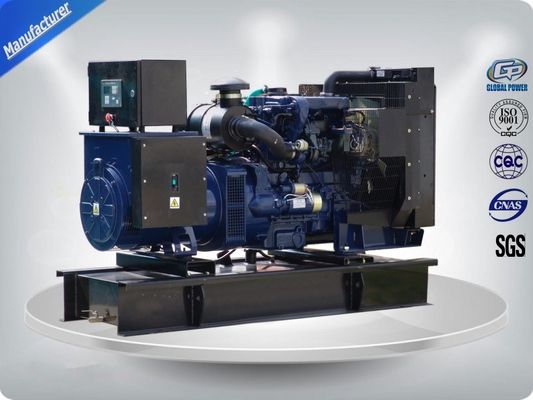

Product Picture:
20 Kva 400V Powerful open type Perkins Diesel Generator Set 125℃ Temperature Rise 0
