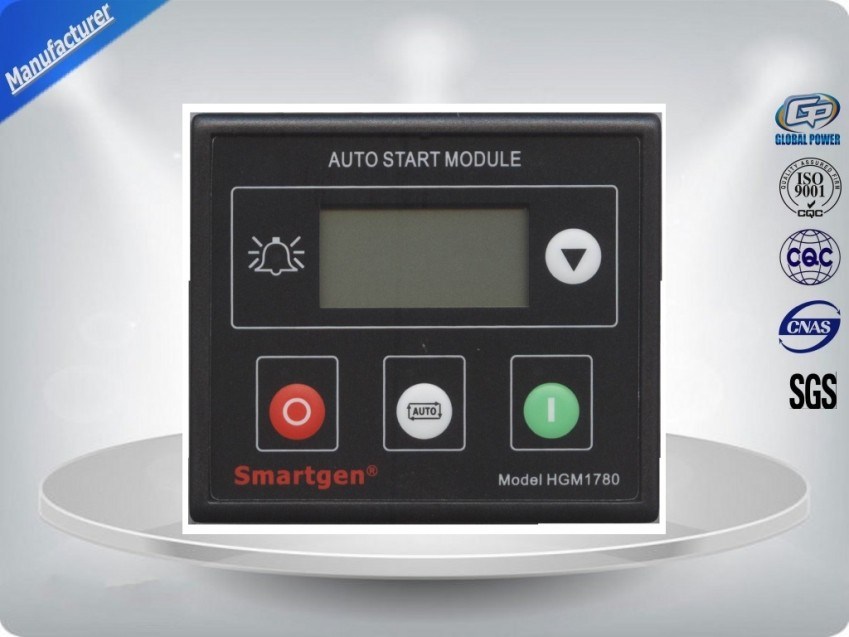

Name: 10Kw 2 Cylinder Diesel Generator Controller 1500Rpm With Generator Battery Charger
Brand: WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
SKU: HGM1780
Availability: InStock

MOQ:	1set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets/year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Smartgen

Certification

CE / ISO

Model Number

HGM1780

Place Of Origin::

China (Mainland)

Brand:

Smartgen

Alternator Frequency:

50Hz / 60 Hz

Model Number::

HGM1780

Panel Cutout(l*w*h/mm）:

110mm X 90mm

Controller:

HGM420 / 410

Overall Dimensions::

88mm X 76mm X 44mm

Weight::

0.2kgs

Highlight:

10Kw Diesel Generator Controller

2 Cylinder Diesel Generator Controller

1500Rpm diesel generator panel

Product Description

10Kw 2 Cylinder Diesel Generator Controller 1500Rpm With Generator Battery Charger

Specifications :

Item	Content
Operating Voltage	DC8. 0V to 35. 0V, Continuous Power Supply
Power Consumption	Standby, 12V-0.3W, 24V-0.4W Working, 12V-1W, 24V-1.1W
Alternator voltage Input	1P2L 15V AC ~ 360 V AC (ph-N)
Alternator Frequency	50/60Hz
Speed sensor voltage	1V to 24V (active value)
Speed sensor Frequency	Max. 10kHz
Max. accumulative running time	99999.9 hours (it is 1/10 hour after decimal point, means changing/6 min.)
Start Relay Output	1Amp DC28V DC B+ power on to output
Fuel Relay Output	1Amp DC28V DC B+ power on to output
Stop Relay Output	1Amp DC28V DC B+ power on to output
Idle Relay Output	1Amp DC28V DC B+ power on to output
Configured Relay Output	1Amp DC28V DC B+ power on to output
Switching value input port	Active when connected with B-
Overall dimensions	88mm x 76mm x 44mm
Panel cut off	78x66mm
Working conditions	Temperature, (-25~+70)ºC Humidity, (20~90)% without condensation
Storage Condition	Temperature, (-30~+80)ºC
Protective Level	IP55, when waterproof rubber ring added between controller and its panel. IP42, when waterproof rubber ring not have between controller and its panel.
Insulation Intensity	Object: among in input/output/power Quote standard: IEC688-1992 Test way: AC1.5kV/1min 1mA leakage current
Weight	0.15kg

Typical Diagram

10Kw 2 Cylinder Diesel Generator Controller 1500Rpm With Generator Battery Charger 0

Our Service:

If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
Build customers’ profiles, follow-up service, make regular calls on customers

Our Main Product:

Diesel Generating Set
Gasoline Generating Set
Gas Generating set
Mobile Light Tower
Forklift
Air Compressor
Control System
Standard Control Panel
Auto Control Panel
Auto Parallel Control Panel
ATS
Brushless Alternat

Warranty and Maintenance:

Guarantee Period: One year or 1000 running hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent by air express.
