Product Details:
Payment & Shipping Terms:
|
| Place Of Origin:: | China (Mainland) | Brand: | Deepsea |
|---|---|---|---|
| Alternator Frequency: | 50Hz / 60 Hz | Model Number:: | DSE703 |
| Panel Cutout(l*w*h/mm）: | 110mm X 90mm | Frequency Range: | 3.5 Hz To 75 Hz |
| Max. Current:: | Operating 50mA | Dimensions:: | 125mm X 165mm X 28 Mm |
| Highlight: | generator auto start controller,generator paralleling controller |
||

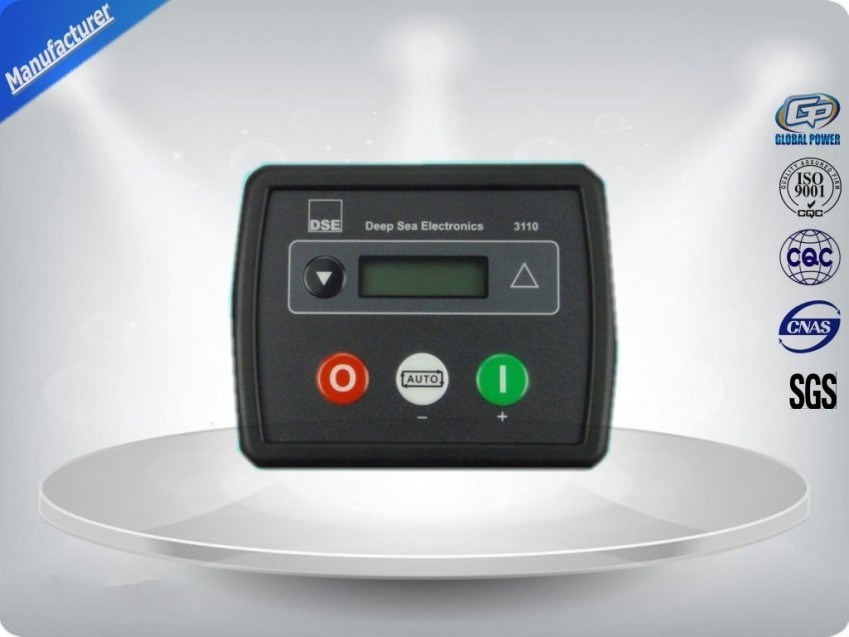

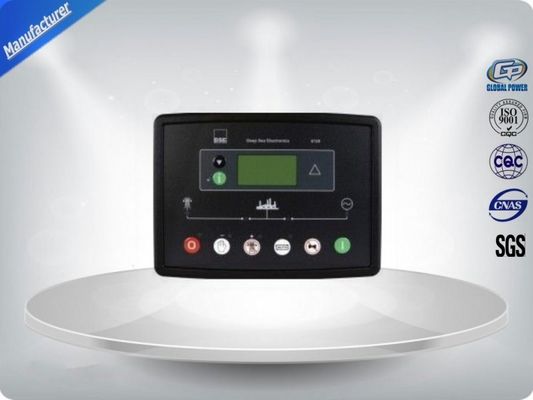

Waterproof Diesel Generator Controller Operating 50mA Standby 10mA Max. Current
Specifications :
|
DC Supply: |
8 Volts to 35 Volts DC Continuous. |
|
Cranking Dropouts: |
Able to survive 0 Volts for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 Volts. This is achieved without the need for internal batteries. |
|
Max. Current: |
Operating 50mA |
|
|
Standby 10mA |
|
Alternator Input Range: |
75 Volts (ph-N) to 277 Volts (ph-N) AC (+20%) |
|
Alternator Input Frequency: |
50 - 60 Hz at rated engine speed (Minimum: 75V AC Ph-N) (Crank Disconnect from 15V Ph-N @ 20Hz) |
|
Overspeed +14% (+24% overshoot) |
|
|
Underspeed –20% |
|
|
Start Output: |
1.2 Amp DC at supply voltage. |
|
Fuel Output: |
1.2 Amp DC at supply voltage. |
|
Auxiliary Outputs: |
1.2 Amp DC at supply voltage. |
|
Dimensions: |
125mm x 165mm x 28 mm |
|
Charge Fail: |
12 Volts = 8 Volts CF 24 Volts = 16 Volts CF |
|
Operating Temperature Range: |
-30 °C to + 70°C |
Key Features:
• Ultimate size to feature ratio
• Automatically transfers between mains (utility) and generator (DSE4520 only)
• Hours counter provides accurate information for monitoring and maintenance periods
• User-friendly set-up and button layout for ease of use
• Multiple parameters are monitored simultaneously which are clearly displayed on thelargest back-lit icon display inits class
• The module can be configured to suit a wide range of applications
• Uses DSE Configuration Suite PC Software for simplified configuration
• Compatible with a wide range of CAN engines
• Licence-free PC software
• IP65 rating (with optional gasket) offers increased resistance to water ingress
