Quietest Small Portable Generator Set Air Cooled 4 Stroke Three Loops

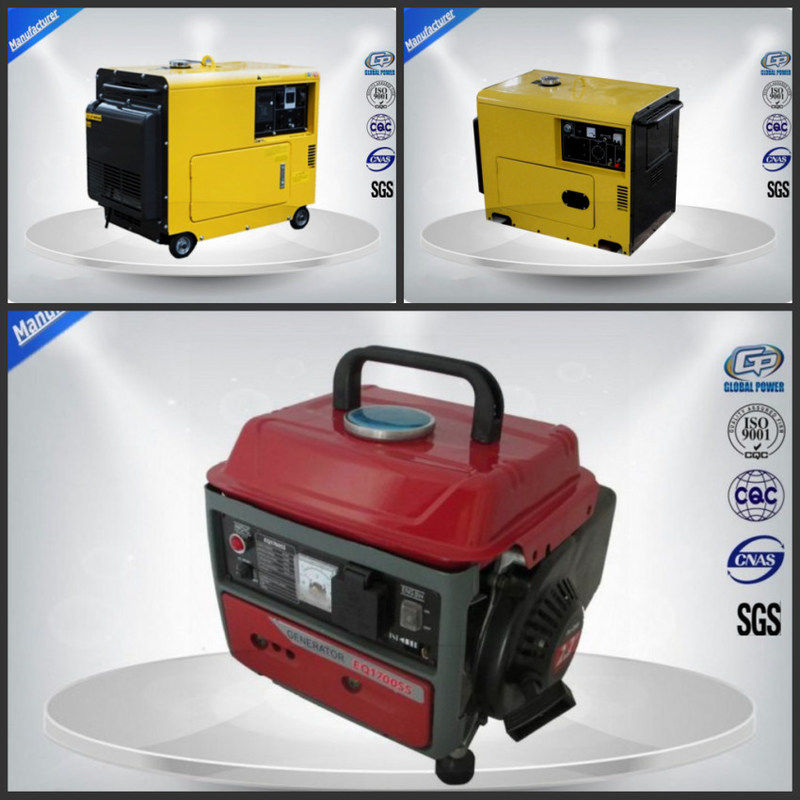

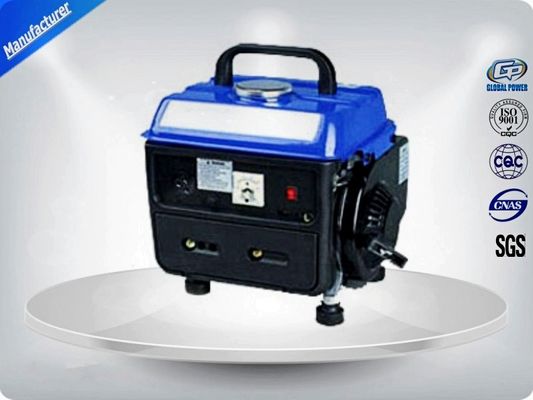

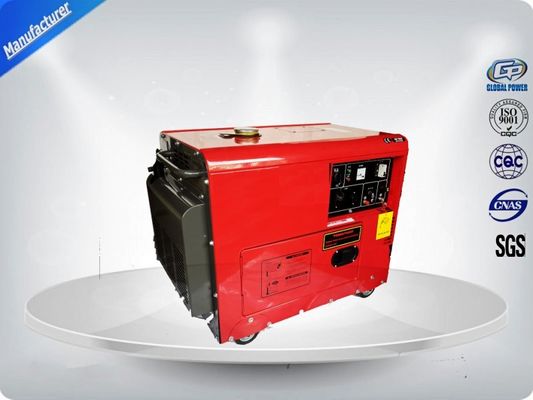

Quietest Small Portable Generator Set Air Cooled 4 Stroke Three Loops

MOQ: 10 set
Price: negotiable
Standard Packaging: plastic foam or plywood case packing
Delivery Period: 25 days after receiveing the down-payment
Supply Capacity: 2000 sets/year
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Global Power
Certification
OEM/ISO9001
Model Number
GP D6500T
Engine Model:
GP178F
Rated Output(kVA):
4.5 KVA
N.W (kg):
162
Engine Type:
Vertical,4 Stroke, Air Cooled, Direct Injection
Rated Frequency:
50/60
Brand:
Global Power
Highlight:

small portable generator set

,

portable generator set air cooled

,

small dg set generator

Product Description

Quietest Small Portable Generator Set Air Cooled 4 Stroke Three Loops

Generator

Frequency(Hz)

50

60

Rated Output(kVA)

4.5

5.0

Max Output(kVA)

5.0

5.5

Voltage(V)

115/230

120/240

Current(A)

39.2/19.6

41.7/20.8

Configuration

Single phase, three loops

Factor

1.0

Insulation Class

B

Pole

2

Phase

1

Excitation Mode

Self-excitation & constant voltage(AVR)

Panel type

General panel

output

socket

2pc single phase socket

Connection Pole

Without

DC12V Output

Connection pole output

Dimension (L*W*H)

950*560*750

Dry weight(kg)

160

Working assorting weight  (Kg)

170

Noise level(7m)dB(A)

72

Frame type

Silent frame

Quietest Small Portable Generator Set Air Cooled 4 Stroke Three Loops 0
Engine

Model

GP 186FA

Engine type

Vertical,4 stroke, Air cooled, direct injection

Displacement(mL)

418

Cylinder NO.-bore×stroke  (mm)

1-86×72

Rated power(kW)

5.7

6.3

Rated rotation speed(r/min)

3000

3600

Fuel consumption ( g/kW.h)

275.1

281.5

Capacity of Fuel Tank (L)

16

Starting  System

Electric starter

Compression ratio

19:1

Continuous working hours(hr.)

9.5

Control system

l   Main features:

l   Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation

l   Security password-protected programming levels

l   All parameters use digital modulation, with higher reliability and stability

Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed

l   Power supply range is wide, accommodating to different starting battery voltage environment

l   Built-in watch dog can never be dead halt, ensuring smooth program execution

l   Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

Quietest Small Portable Generator Set Air Cooled 4 Stroke Three Loops 1
Our advantages:

1. Powerful Lees four-stroke engine
Lees commercial-grade OHV engines are reliable, easy-to-start and incredibly rugged.
2. Reliable and stable output
Applied the improved AVR (automatic voltage regulator), which not only
can smooth the output but also provide reasonable protection against
the overload of the whole set
3. Competitive economic operation
The high efficiency combustion system is designed to reduce the
consumption and operation cost
4. Qualified breaker, electronic elements
Ensuring high quality of generator, protect the generator from being overload
5. Compact design
Provides unparalleled power to weight ratio
6. Large steel fuel tank
For durability and extended running time
 inspection

  1. Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
  2. All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.

After sale service:
1)  Quick response to customer's complains in half hour from get customers' emails or calls.
2)  Giving correct solve solutions in 1 hour by our 20 years experience excellent service team.
3)  Offering 24 hours hot line service and remote technical diagnosing and supporting.
4)  Offering engineers to your local site to solve problems if urgent needed.
5)  Branding generator set customers can enjoy our good service forever.
FAQ
1.Can you do the Customized brand for us?
Yes. We make the brand name with your logo and your product model on the generator set.
2.How long can I expect to get product?
According to your order quantity, generally, After we received your deposit, we will delivery in 25-30 days.
3.What is the payment method?
Our main payment method is by T/T, 30% deposit  paid in advance, and 70% balance should be paid before goods delivery.
 4. What are your payment terms?
T/T 30% in advance, balanced before shipment
L/C at sight
