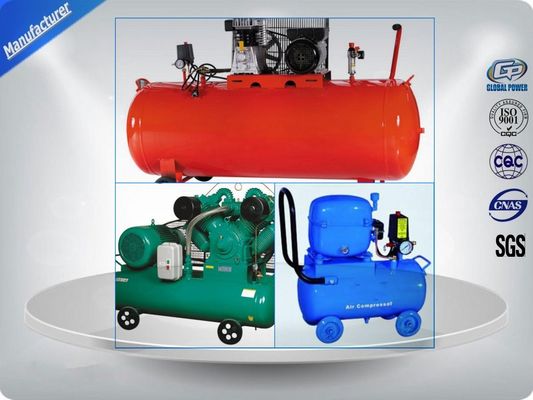

Belt Driven Electric Air Compressor Three - Phase Brushless 4Kw 5.5Hp 100L 8Bar
  • name
  • name

Belt Driven Electric Air Compressor Three - Phase Brushless 4Kw 5.5Hp 100L 8Bar

MOQ: 1 pcs
Price: Negociable
Standard Packaging: Plywood case
Delivery Period: 20 days
Supply Capacity: 1000 sets
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Global Power
Certification
ISO/ CQC
Model Number
GP
Application:
Air Power
Configuration:
Stationary,Movable Trailer
Lubrication Type:
Lubricated
Mode:
AC Electric Motor
Drive Mode:
Electric/Diesel Available
Type::
Screw
Export Markets::
Global
Highlight:

industrial air compressors

,

portable electric compressor

,

silent electric air compressor

Product Description

Belt Driven Electric Air Compressor Three - Phase Brushless 4Kw 5.5Hp 100L 8Bar

Product Description:

Configuration characteristics:
1. A precisely-made central bracket is used to keep the motor aligned permanently with the air end.
2. A highly resilient coupling is adopted to make the compressor operate smoothly, and the elastomer is long in useful life.
3. The discharge pipe is double-wall corrugated pipe, and the oilway uses a special high-pressure hose which is resistant to temperature up to 125C
4. For the extremely high temperature conditions in some districts, the large-area plate heat exchanger and high-efficiency water chiller are used.
Highly-quality shaft coupling elastic body can buffer and compensate for the imbalanced moment of operation. The elastomer is designed into and involute cambered surface, which effectively avoids stress concentration and improve the buffering effect of the elastomer to increase its bearing capacity. In addition, the high-quality materials ensure excellent durability for the elastomer and can better absorb the vibration arising from the rotation to remove noise.

Reliability:
Since no wearing parts are used for the double-screw compressor air end, it can operate for up to 40000-80000 hours between failure if well maintained.

Specification

Capacity/Pressure
(m3/min.Mpa-1)		 3.7/0.7 3.6/0.8 3.2/1.0
Motor Power(KW) 22KW(30H.P)
Speed(r/min) 2940
Starting way Y- starting
Volt(V) 380
Motor safety grade IP54
Motor isolation grade F
Electrical Supply 380V/50Hz/3Phase
Outlet Temperature(ºC) ≤ Environment Temperature+10ºC
Driven way  Direct Driven
Noise level at 1 meter 72+3dB(A)
Cooled method Air cooling
Oil content 1~3 ppm
Outlet Connection Rc 1
Dimension Length(mm) 1380
Width(mm) 850
Height(mm) 1160
Weight(kg) 580


Belt Driven Electric Air Compressor Three - Phase Brushless 4Kw 5.5Hp 100L 8Bar 0

Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.

Company Profile:

Wuxi Global Power Technology Co., Ltd is located in national Hi-tech Nanchang district, Wuxi city, Jiangsu, China, which is famous as the ‘source of power’. Our company is a key-enterprise of being engaged in research, development, manufacture and exportation of energy-saving and environment-friendly generating sets, related parts and supporting equipment.
We mainly produced “Global Power” brand three-phase brushless synchronous alternators and many kinds of diesel generator sets, such as open generator, silent/soundproof generator, outdoor power plant, containerized gensets, trailer gensets and equipments of construction machinery like mobile light tower, forklift, air-compressor and so on.

Belt Driven Electric Air Compressor Three - Phase Brushless 4Kw 5.5Hp 100L 8Bar 1
