Product Details:
Payment & Shipping Terms:
|
| HS Code: | 84148090 | Mode: | Electric |
|---|---|---|---|
| Performance: | Low Noise | Color: | Can Be Customized |
| Power Supply: | 380V/3PH/50HZ | Air Dew Point: | -45℃ |
| Lubrication Style: | Lubricated | Market: | Global |
| Highlight: | portable air compressor,screw air compressor |
||

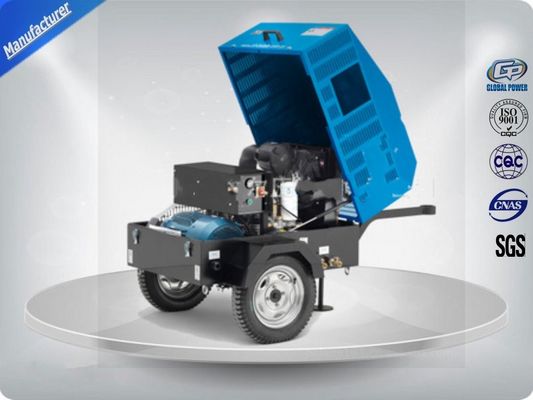

22Kw / 30Hp Portable Electric Air Compressor With Ac Output Power / Direct Drive Screw
| TECH SPECS: | |||
| Pressure | 7~13 Bar | Power | 55KW 75HP |
| Air flow | 10.1~7.8 m3/min | Content of oil | 1~3 ppm |
| Type of cooling | Air cooling | Diameter of outlet | G2 Inch |
| Dimensions | 1720*1200*1340 mm | ||
| Certification | SGS,CE,ISO9001. | ||
| Delivery Information: | |||
| Port | Shanghai | ||
| MOQ | 5 Pieces | ||
| Delivery days | 10~15 WORKDAYS AFTER PAYMENT CONFIRMED OR ACCORDING TO CUSTOMER'S DETAIL QUANTITIES. | ||
| Packing details | EXPORT WOODEN CASE PACKING. | ||
| Payment terms | T/T,L/C. | ||
| Our Advantages: | |||
| Our promise to the clients | 1. Rapid response to your enquiry in 12 working hours. | ||
| 2. Experienced staffs answer all your questions in fluent English. | |||
| 3. Customized design is available. OEM & ODM are welcome. | |||
| 4. Exclusive and unique solution can be provided to our customer by well trained staffs | |||
| 5. Special discount and protection of sales area provided to our distributor. | |||
Characters:
*Oil-injected, portable towable diesel drive screw compressor.
* Original imported key components.
* Low Energy Consumption, Low running and maintenance cost.
* Aptitude and intelligent Control, PLC control, LCD displayer.
* Unique safe units make whole compressor more safety, more stable, less noise, less energy loss.
* Main motor rotation control.
* Automatic reminding and alarm on the PLC displayer for replacement of filter/oil/separator when times up.
* Protection against temperature reaching maximum or minimum level.
* Protection against over-pressure on the oil receiver (equipped a safety valve, once over-pressure, the safety valve will open and release pressure).
* High oil temperature control (equipped temperature sensor, display temperature on PLC displayer, alarm when over-temperature).
* The compressor will automatically start when the pressure of outlet air flow is low than rating value.
* History of default.
* Protection against over-loaded, short circuit and under-voltage.
* Easy for installation, operation, maintainence.
