Product Details:
Payment & Shipping Terms:
|
| Type:: | Micro-Computer Control Automatic Genset | Rated Power: | 30kw -200kw |
|---|---|---|---|
| Output Type: | AC Three Phase | Frequency: | 50 / 60Hz |
| Insulation Class: | H | Speed: | 1500 / 1800 Rpm |
| Excitation Mode: | Self-Excited | Export Markets: | Southeast Asia, The Middle East, |
| Rated Voltage: | 220V/380V, 230V/400V, 240V/415V | Installation Method: | Fixed |
| Highlight: | marine diesel genset,Marine Genset |
||
• Economical: Cummins Marine Diesel Generator is one of the lowest fuel consumption in the world.
• High reliability and long life span.
• Perfect starting ability: Can start successfully at -10 Degree Centigrade without any accessories.
• Perfect low load condition: The air inlet system choose "HELLO" technical to improve burning performance and reduce fuel consumption.
• Convenient maintenance: simple & reliable structures and L line cylinders provides convenient maintenance and inspection .
• Can provide certificates of Marine Products, conforming to IACS (International Association of Classification Societies)

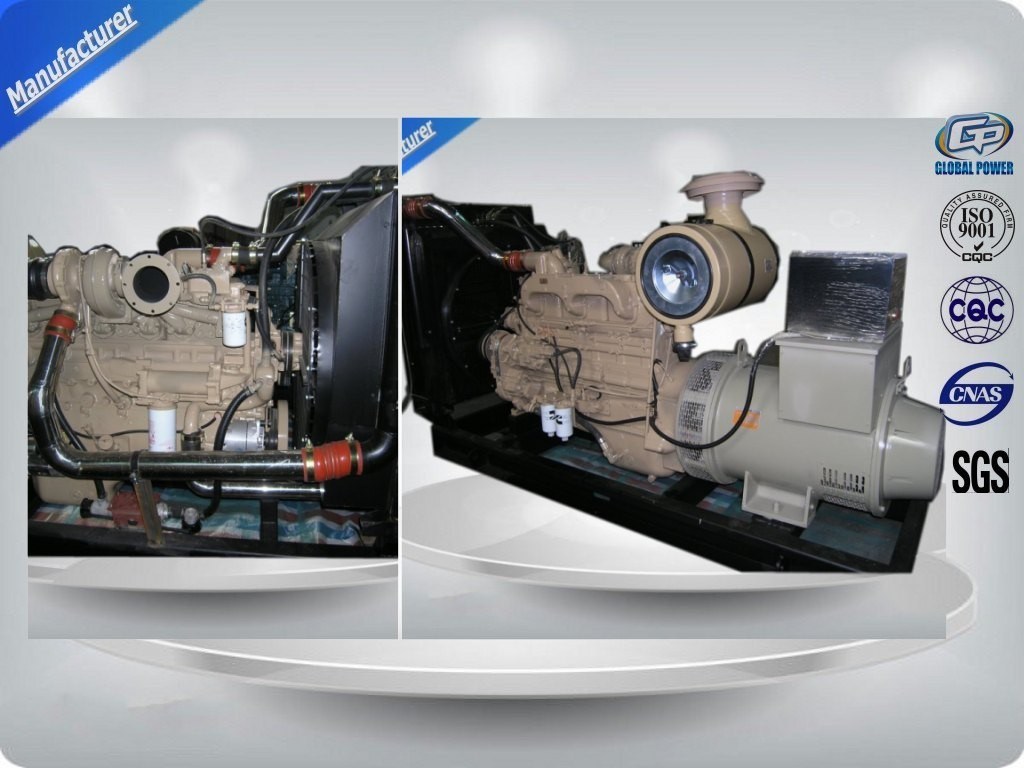

Complete Cummins Marine Diesel Generator including marine diesel engine, alternator, heat exchanger+water pump or radiator, standard control system, circuit breaker, absorber, filters, testing report, marine class certificate, user books and other accessories etc..
Specification:
| 1. Specification of genset | |||||||||
| Gensets model | CCFJ200Y | ||||||||
| Prime power | 200kW/250kVA | ||||||||
| Rated Voltage(V) | 400 | ||||||||
| Rated frequency(HZ) | 50 | ||||||||
| Rated Speed(RPM) | 1500 | ||||||||
| Power Factor | 0.8(lagging) | ||||||||
| Dimensions(mm) (L×W×H) | 2950x1220x1750 | ||||||||
| Genset Weight(kg) | 2800 | ||||||||
| 2. Specification of diesel engine | |||||||||
| Engine model | N855-DM | ||||||||
| Output power | 264kW/330kVA | ||||||||
| Number of Cylinders | 6 | ||||||||
| Cylinder arrangement | In-line | ||||||||
| Cycle | Four stroke | ||||||||
| Aspiration | Turbocharged, LTA | ||||||||
| Bore×Stroke (mm×mm) | 140 x 152 | ||||||||
| Displacement (Liter) | 14 | ||||||||
| Compression Ratio | 14.0:1 | ||||||||
| Speed Governor | Electronic | ||||||||
| Cooling System | cooled by radiator | ||||||||
| Total lubrication system capacity (L) | 70 | ||||||||
| Fuel Consumption at 100% Load (g/kw.h) | 214 | ||||||||
| Starting Method | DC24V electrical starting | ||||||||
| 3. Specification of alternator | |||||||||
| Alternator brand | Stamford | ||||||||
| Alternator model | UCDI 274K | ||||||||
| Rated power | 200kW/250kVA | ||||||||
| Number of Phase | 3 | ||||||||
| Connecting Type | 3 Phase and 4 Wires | ||||||||
| Number of Bearing | 1 | ||||||||
| Protection Grade | IP22 | ||||||||
| Altitude | ≤1000m | ||||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | ||||||||
| Insulation Class | H | ||||||||
| Telephone Influence Factor (TIF) | ≤50 | ||||||||
| THF | ≤2% | ||||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||||
| Transient State Voltage | ≤-15%~+20% | ||||||||
Global Power Service:
Ettes Power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested. Warranty is according to our standard conditions: 12 months or 1000 running hours, subject to the earlier one. Furthermore, Ettes Power will provid life-span technical support and spare parts at manufacture prices.
1. In manufacturing of power generators, GLOBAL POWER is able to draw on an experience
of more than 10 years. Our total production capacity is about 20,000 units per year.
2. The power generator sets are designed for continuous power supply and have proved 10,000
fold around the world in various applications on every continent.
3. Except standard products, we also provide customized design service for you, design generator
sets as per your specific requirements.
4. We provide professional & in time service after sale.
