Product Details:
Payment & Shipping Terms:
|
| Usage: | Common Unit | Frequency: | 50Hz, 60Hz |
|---|---|---|---|
| Stroke: | Four Stroke | Lamp Power: | Optional |
| Speed (Diesel Engine): | 1500 / 1800 Rpm | Mast Operated System: | Manual |
| Voltage: | 110V, 120V, 220V, 230V, 240V | Power Source: | Diesel Generator |
| Highlight: | portable light towers,trailer mounted light towers |
||

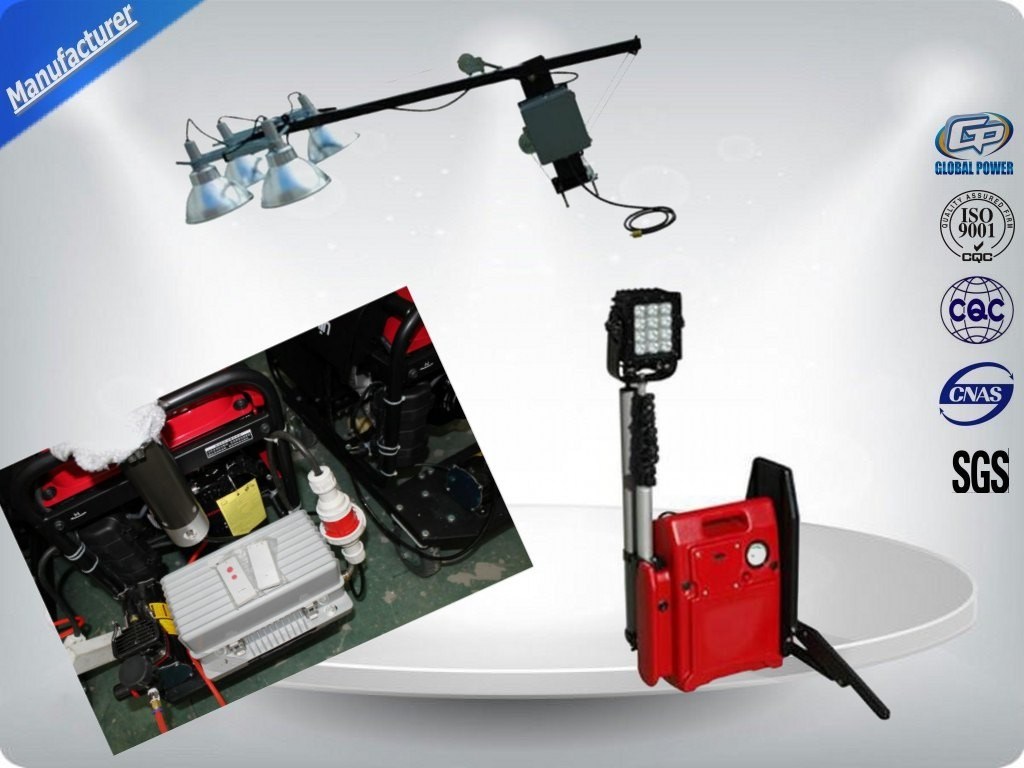

Outdoor Portable Mobile Light Tower Manual Operated 1500 / 1800 Rpm Speed
Features:
Mobile Light Tower Application:
For municipal, highway bridge, port, mine, construction sector construction and other field work at night lighting. And also can be used for night repair, disaster scene lighting.
Parameters
| Type | Air cooled, 4stroke, OHV gasoline engine | Air cooled, 4stroke, single cylinder direct injection type diesel engine | |||
| Generator Types | Single-phase alternator | ||||
| Rated Power | 2.0kw | 3.0kw | 3.0kw | 5.0kw | |
| Rated Voltage | 220V | 220V | 220V | 220V | |
| Continuous working time (hour) | 13hr | 13hr | 13hr | 9hr | |
| Oil Tank | 15L/12.5L | 25L/12.5L | 25L/12.5L | 25L/16L | |
| Power*lamp | 400W*2 | 400W*4 | 1000W*2 | 1000W*4 | |
| Stanchion Lamp frame | 3 sections | 4 sections | 4 sections | 4 sections | |
| Elevating height | 1800-3800mm | 1800-4600mm | 1800-4600mm | 2000-5600mm | |
| Anti-slope | <10° | ||||
| Anti-wind | <6 | ||||
| Walk type | Hand push type | ||||
| Total luminouness | 72000Lm | 144000Lm | 220000Lm | 440000Lm | |
| Lamp | Metal halide lamp | ||||
| Elevating mode | By hand-operated | ||||
| Package size | Main machine | 1300*900*950mm | |||
| Stanchion | 1750*500*500mm | ||||
| Lamp | 440*440*480mm*2 | 440*440*480mm*4 | 600*600*600mm*2 | 600*600*600mm*2 | |
| Net weight(kg) | 95/165kg | 120/175kg | 110/210kg | 140/230kg | |
GLOBAL POWER mobile lighting tower testing items
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Lamps testing
8) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
After-sales Service:
GLOBAL POWER grant our clients a twelve-month-period or 1000 running hours warranty for any machine exported from us.
During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective part will be repaired or replaced free of charge, at our discretion.
There are two ways we can ship the compensated spare parts:
(1) Upon the urgent request from our clients, we will ship the compensated spare parts by international courier, such as DHL, TNT, UPS or Fedex. The courier will arrive the designated destination within 5-7 days. The client will assume the courier expense.
(2) For the regular claim for the spare parts, we will ship the compensated spare parts together with next shipment of new machines. The shipment expense is free.
