Name: 300kva Perkins Open Cummins Diesel Generator Set Marine Diesel Genset
Brand: WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
SKU: GP P240
Availability: InStock

MOQ:	1 set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets / year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Perkins

Certification

OEM / ISO

Model Number

GP P240

Engine Brand::

Perkins

Output Power (kw):

287

Alternator Brand::

Stamford / Meecalt / Copy Stamford

Engine Model::

1606A-E93TAG5

Frequency (Hz):

Generator Type::

Open / Slient

Rated Current (A):

433

Soundproof Type- Dimension (L*W*H) (mm):

3200*1150*1900

Package:

Plastic Foam Or Plywood Case

Fuel Tank Capacity(L):

600

Highlight:

open cummins diesel generator set

300kva diesel power generator set

300kva cummins diesel generator set

Product Description

300kva Perkins Open Three Phase Perkins Generator Set With Stamford Alternator

Basic Specification:

1. Engine brand, Perkins.

2. Alternator brand, Meccalte, Stanform, GP...etc

3. Direct injection internal combustion engine

4. AC synchronous generator ( single bearing)

5. Cooling way, radiator with fan & water tank

6. Open type, closed type ( with sound proof canopy, trailer, container)

7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set

8. Anti-vibration isolaters

9. Brushless 3 phase

10.Integral guel tank ( 8 hours)

11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)

12.50/60hz

13. Atomatic alarm system

14. Insulation, class H

Applications:

Home, Buildings, Hospitals, Train station,

Bank, Telecom, Mining, Military, Outdoor projects, etc.

Diesel Generator GPP240 (three phase)

Prime Power (kw/kva)	240/300
Standby Power (kw/kva)	264/330
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	433
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Open Type-Dimension (LWH) (mm)	320011501900
Open Type-Weight (kg)	2735
Soundproof Type- Dimension (LWH) (mm)	410015002250
Soundproof Type-Weight (kg)	6385
Fuel Tank Capacity(L)	600
Continuous Running Time(hr.)	8

Engine specifications:

1.Main features:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

2.Technical data

Model 1606A-E93TAG5

Engine brand	Perkins
Output Power (kw)	287
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Compression Ratio
Displacement (L)	9.3
Bore X Stroke (mm)	117*146
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	45
Fuel Consump. (g/kw·h)	208
Oil Capacity (L)	36

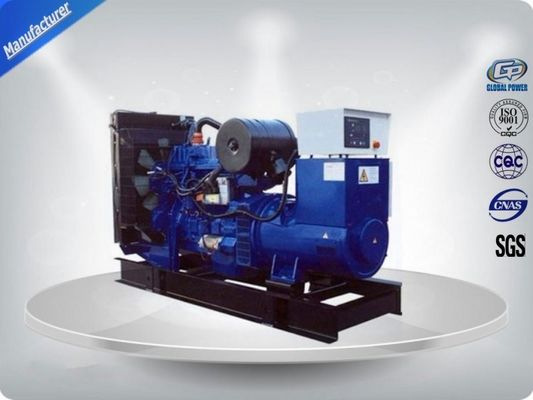

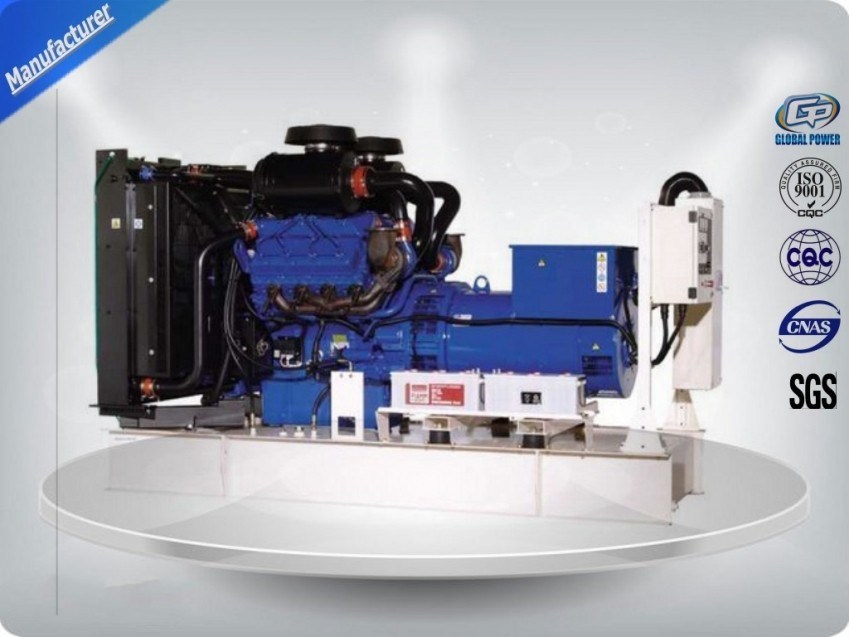

Product Picture:

300kva Perkins Open Cummins Diesel Generator Set Marine Diesel Genset 0

Features and benefits

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door
