Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Perkins | Engine Model: | 2506C-E15TAG2 |
|---|---|---|---|
| Output Power (kw): | 478 | Rated Voltage (V): | 400 / 230 |
| Speed Governing: | Electronic | Open Type-Weight (kg): | 2875 |
| Open Type-Dimension (L*W*H) (mm): | 3200*1150*1900 | Soundproof Type- Dimension (L*W*H) (mm): | 4400*1500*2300 |
| Highlight: | marine diesel genset,Emergency Generator Set |
||

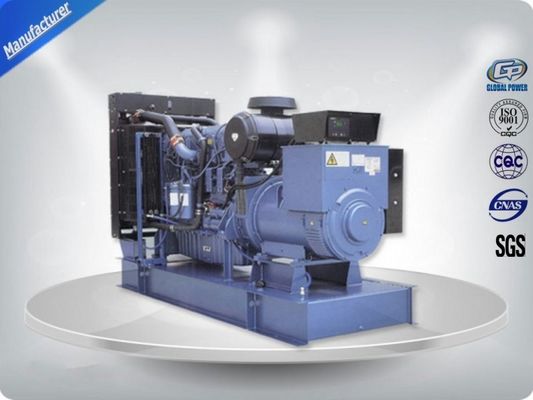

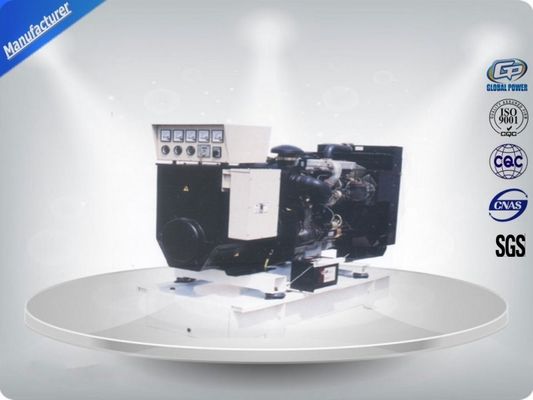

With perkins electric start 400kw / 500kva diesel generator sets AC three phase output type
Technical Specifications :
|
Genset |
Prime Power (kw/kva) |
400 / 500 |
|
|
Standby Power (kw/kva) |
440 / 550 |
||
|
Voltage Recovery Time |
≤1S |
||
|
Rated Current (A) |
721 |
||
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
24V 100Ah |
||
|
Fuel Tank Capacity(L) |
800 |
||
|
Engine |
Engine brand |
Perkins |
|
|
Output Power (kw) |
478 |
||
|
Cylinder No. & Config. |
6, in-line |
||
|
Combustion System |
direct injection |
||
|
Compression Ratio |
16:1 |
||
|
Displacement (L) |
15.2 |
||
|
Bore X Stroke (mm) |
137*171 |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Electronic |
||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
|
Protection Grade |
IP23 |
||
Competitive service:
1) More than 15 years advanced production experience.
2) As OEM factory, we have obvious competitive in price and leading times.
3) Provide debugging and maintenance service to you.
4) Professional 8 Hours testing for Generator before shipment.
5) 1000 hours warranty on the spare parts free provide & technical support in machine life.
|
Genset |
Power Output (kw/kVA) |
Engine Model |
Alternator Model |
Dimension |
Weight |
|
|
|
Prime |
Standby |
|
|
Open Type |
Open |
|
HP7 |
7.2/9 |
7.9/9.9 |
403D-11 |
BCI164B |
1100×500×1000 |
400 |
|
HP10 |
10.4/13 |
11.4/14.3 |
403D-15 |
BCI164C |
1150×600×1100 |
450 |
|
HP16 |
16/20 |
17.6/22 |
404D-22 |
BCI184E |
1300×600×1150 |
550 |
|
HP24 |
24/30 |
36.4/33 |
1103A-33G |
BCI184G |
1600×730×1250 |
720 |
|
HP36 |
36/45 |
39.6/49.5 |
1103A-33TG1 |
LSA43.2S25 |
1600×730×1250 |
750 |
|
HP48 |
48/60 |
52.8/66 |
1103A-33TG2 |
LSA43.2M45 |
1650×730×1250 |
780 |
|
HP64 |
64/80 |
70.1888 |
1104A-44TG2 |
LSA43.2L6 |
1750×730×1250 |
850 |
|
HP80 |
80/100 |
88/110 |
1104C-44TAG2 |
LSA44.2VS45 |
1850×750×1250 |
900 |
|
HP112 |
112.8/141 |
124/155 |
1006TAG |
LSA44.2M95 |
2250×820×1450 |
1150 |
|
HP120 |
120/150 |
132/165 |
1006TAG2 |
LSA44.2M95 |
2250×820×1450 |
1150 |
|
HP144 |
144/180 |
158.4/198 |
1106D-E66TAG4 |
LSA46.2M3 |
2400×900×1600 |
1500 |
|
HP160 |
160/200 |
176/220 |
1306C-E87TAG3 |
LSA46.2M5 |
2500×1000×1650 |
1300 |
|
HP182 |
182.4/228 |
200.6/250.8 |
1306C-E87TAG4 |
LSA46.2L6 |
2700×1000×1650 |
1650 |
|
HP200 |
200/250 |
220/275 |
1306C-E87TAG6 |
LSA46.2L6 |
2700×1000×1650 |
1700 |
|
HP280 |
280/350 |
308/385 |
2206A-E13TAG2 |
LSA47.2VS2 |
3100×1150×1800 |
2500 |
|
HP320 |
320/400 |
352/440 |
2206C-E13TAG3 |
LSA47.2S4 |
3200×1150×1800 |
2800 |
|
HP360 |
360/450 |
396/495 |
2506C-E15TAG1 |
LSA47.2S5 |
3350×1150×2150 |
3300 |
|
HP400 |
400/500 |
440/550 |
2506C-E15TAG2 |
LSA47.2M7 |
3350×1150×2150 |
3300 |
|
HP480 |
480/600 |
528/660 |
2806A-E18TAG1A |
LSA47.2L9 |
3350×1550×2250 |
3950 |
|
HP520 |
520/650 |
572/715 |
2806A-E18TAG2 |
LSA49.1S4 |
3400×1510×2250 |
4200 |
|
HP580 |
580/725 |
638/797.5 |
4006-23TAG2A |
LSA49.1M6 |
3900×1700×2150 |
4700 |
|
HP640 |
640/800 |
704/880 |
4006-23TAG3A |
LSA49.1M75 |
3900×1700×2150 |
4700 |
|
HP728 |
728/910 |
800.8/1001 |
4008-TAG1A |
LSA49.1L10 |
4800×1870×2450 |
6500 |
Warranty and Maintenance:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
