Product Details:
Payment & Shipping Terms:
|
| Engine Model: | 4008TAG2A/899 | Rated Voltage (V): | 400/230 |
|---|---|---|---|
| Rated Current (A): | 1152 | Speed Governing: | Electronic |
| Open Type-Weight (kg): | 5100 | Open Type-Dimension (L*W*H) (mm): | 4450*1650*2401 |
| Highlight: | marine diesel genset,power generating sets |
||

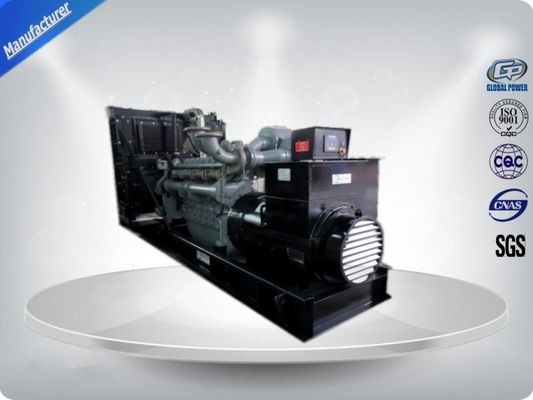

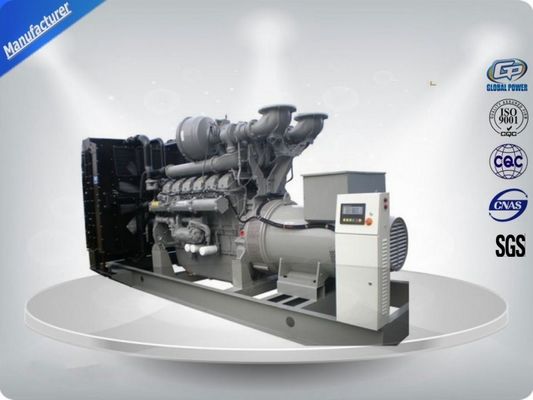

Electric start with perkins engine 50HZ 800KW1000kva diesel generator set open type
Basic Specification:
1. Engine brand, Perkins.
2. Alternator brand, Meccalte, Stanform, GP...etc
3. Direct injection internal combustion engine
4. AC synchronous generator ( single bearing)
5. Cooling way, radiator with fan & water tank
6. Open type, closed type ( with sound proof canopy, trailer, container)
7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set
8. Anti-vibration isolaters
9. Brushless 3 phase
10.Integral guel tank ( 8 hours)
11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)
12.50/60hz
13. Atomatic alarm system
14. Insulation, class H
Generator data
|
Prime Power (kw/kva) |
800/1000 |
|
Standby Power (kw/kva) |
880/1100 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Current (A) |
1440 |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
24V 100Ah |
|
Open Type-Dimension (L*W*H) (mm) |
4450*1650*2403 |
|
Open Type-Weight (kg) |
7750 |
|
Soundproof Type- Dimension (L*W*H) (mm) |
20ft container |
|
Soundproof Type-Weight (kg) |
19350 |
|
Fuel Tank Capacity(L) |
1200 |
|
Continuous Running Time(hr.) |
6 |
Engine data
Model 4008TAG2A
|
Engine brand |
Perkins |
|
Output Power (kw) |
899 |
|
Cylinder No. & Config. |
8, in-line |
|
Combustion System |
direct injection |
|
Compression Ratio |
13.6:1 |
|
Displacement (L) |
30.561 |
|
Bore X Stroke (mm) |
160*190 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Electronic |
|
Starting System |
24V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
143(Temp.) / 149(Trop.) |
|
Fuel Consump. (g/kw·h) |
206 |
|
Oil Capacity (L) |
153 |
Competitive service:
1) More than 15 years advanced production experience.
2) As OEM factory, we have obvious competitive in price and leading times.
3) Provide debugging and maintenance service to you.
4) Professional 8 Hours testing for Generator before shipment.
5) 1000 hours warranty on the spare parts free provide & technical support in machine life.
Warranty and Maintenance:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
