D15A1 VMAN Engine 400KVA Perkins Diesel Generator Set Mecc - alte

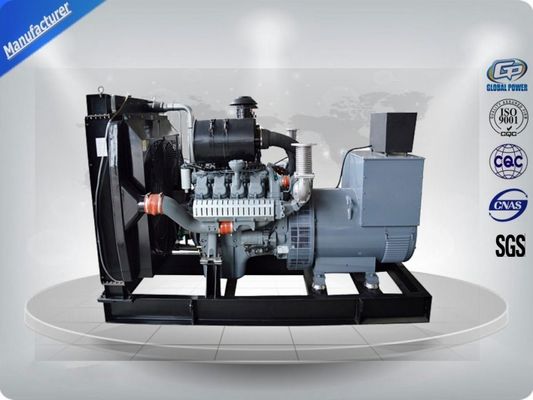

Large Image : D15A1 VMAN Engine 400KVA Perkins Diesel Generator Set Mecc - alte

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	VMAN
Certification:	OEM/ISO9001
Model Number:	GP VM200

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negociable
Packaging Details:	FOB, CRF,CIF,EXW…
Delivery Time:	25 working days after received down-payment
Payment Terms:	T/T or LC
Supply Ability:	2,000sets/year

Contact Now

Detailed Product Description

Rime Power (kw/kva):	320/400	Output Power (kw):	365
Combustion System:	Direct Injection	Compression Ratio:	14.6:1
Alternator Brand:	Stamford,Mecc-alte, Faraday, Copy Stamford	Frequency:	50HZ/60HZ Available
Genset Type:	Open,Silent, Trailer.container.	Package:	Plastic Foam Packing Or Plywood Case
Control Module Brand:	DeepSea,Comap,Smartgen	Color:	Customized
Highlight:	brushless alternator generator , engine generator set

D15A1 VMAN Engine 400KVA Diesel Generator Set With Stamford / Copy Stamford

Features and benefits

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door

Technical Specifications:

Diesel Generator GPVM320 (three phase)

Prime Power (kw/kva)	320/400
Standby Power (kw/kva)	352/440
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	577
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	12V 100Ah
Open Type-Dimension (LWH) (mm)	3100×1400×1850
Open Type-Weight (kg)	2800
Soundproof Type- Dimension (LWH) (mm)	400018002120
Soundproof Type-Weight (kg)	4600
Fuel Tank Capacity(L)	720
Continuous Running Time(hr.)	8

Model D15A1

Engine brand	VMAN
Output Power (kw)	365
Cylinder No. & Config.	V8 type
Combustion System	direct injection
Compression Ratio	14.6:1
Displacement (L)	14.618
Bore X Stroke (mm)	128*142
Engine Speed (r/min)	1500
Speed Governing	Electronic
Idling Speed(r/min)	700±50
Governor Efficiency	≤3%
Cooling system	Water-cooled
Aspiration Type	Ti
Starting System	24V DC Electric
Fuel Consump. (g/kw·h)	198

Product superiority:

Economical fuel consumption system, to make sure excellent fuel atomization, effective combustion control and extremely low fuel consumption
Low emission contamination
Reliable power and tight compact structure
Excellent loading response specification: high impact load, primary load exceeds 70%, perfect startup performance
Easy to install and maintain
Full storage of accessories and more than 4000 service networks worldwide

Company Profile:
Wuxi Global Power Technology Co., Ltd is located in national Hi-tech Nanchang district, Wuxi city, Jiangsu, China, which is famous as the ‘source of power’. Our company is a key-enterprise of being engaged in research, development, manufacture and exportation of energy-saving and environment-friendly generating sets, related parts and supporting equipment.
We mainly produced “Global Power” brand three-phase brushless synchronous alternators and many kinds of diesel generator sets, such as open generator, silent/soundproof generator, outdoor power plant, containerized gensets, trailer gensets and equipments of construction machinery like mobile light tower, forklift, air-compressor and so on.

Package:

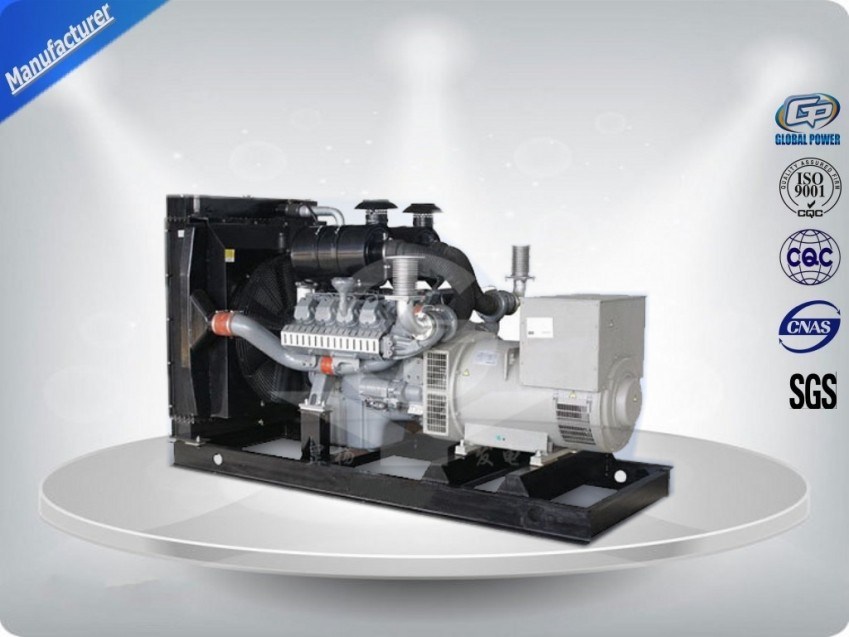

D15A1 VMAN Engine 400KVA Perkins Diesel Generator Set Mecc - alte
