Product Details:
Payment & Shipping Terms:
|
| Prime Power (kw): | 25 | Voltage:: | 400/230V |
|---|---|---|---|
| Engine Model: | VMAN /Weichai / Xichai | Alternator Brand: | Stamford,Mecc-alte, Faraday, Copy Stamford |
| Frequency: | 50HZ/60HZ Available | Genset Type: | Open,Silent, Trailer.container. |
| Package: | Plastic Foam Packing Or Plywood Case | Control Module Brand: | DeepSea,Comap,Smartgen |
| Color: | Customized | ||
| Highlight: | brushless synchronous generator,brushless alternator generator |
||

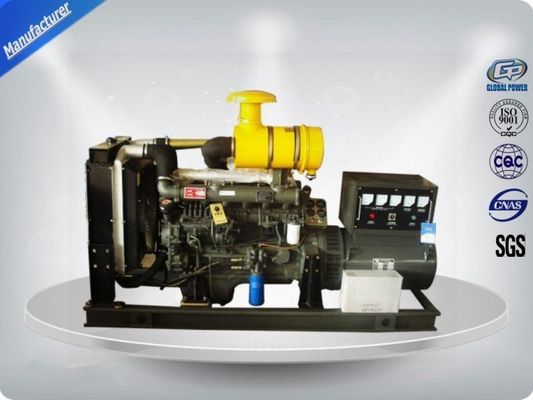

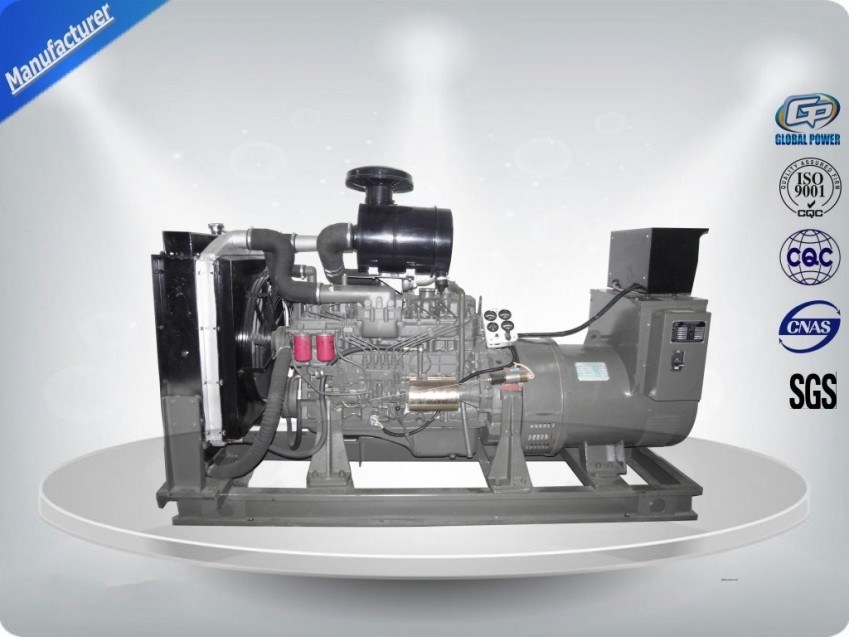

Chinese Engine Weichai / Xichai / VMAN Diesel Generator Set With Stamford / Copy Stamford
Product superiority:
Control system
Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
Technical data
Model D226B-3D
|
Engine brand |
WEICHAI |
|
Output Power (kw) |
33 |
|
Cylinder No. & Config. |
3, in-line |
|
Combustion System |
direct injection |
|
Compression Ratio |
16.5:1 |
|
Displacement (L) |
3.12 |
|
Bore X Stroke (mm) |
105*120 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Mechanical |
|
Starting System |
24V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
11 |
|
Fuel Consump. (g/kw·h) |
≤215 |
|
Oil Capacity (L) |
7.25 |
Model PI 144G
|
Alternator brand |
Stamford |
|
Rated Power (kw) |
24 |
|
Excitation System |
Brushless, self-exciting |
|
Voltage Regulation Mode |
AVR |
|
Connection Type |
3phase,4wires,”Y” connection |
|
Pole No. |
4 |
|
Rotation Speed (r/min) |
1500 |
|
Temperature Rise (℃) |
125 |
|
Insulation class |
H |
|
Voltage Regulation (0 load) |
≥95%～105% |
|
Voltage accuracy |
≤±1% |
|
Protection Grade |
IP23 |
|
Telephone Influence Factor |
TIF＜50 |
|
Harmonic Coefficient |
THF＜2% |
Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
