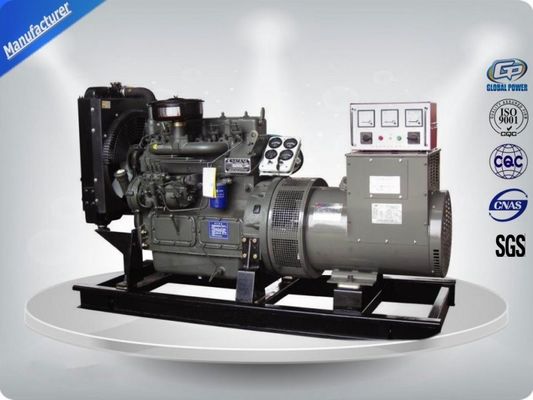

Weichai Engine 100KW Open Diesel Generator Set Meccalte Alternator

MOQ:	1set
Price:	Negociable
Standard Packaging:	FOB, CRF,CIF,EXW…
Delivery Period:	25 working days after received down-payment
Payment Method:	T/T or LC
Supply Capacity:	2,000sets/year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

VMAN / Weichai

Certification

OEM/ISO9001

Model Number

GP W100

Rime Power Kw:

Combustion System:

Direct Injection

Alternator Brand:

Stamford,Mecc-alte, Faraday, Copy Stamford

Frequency:

50HZ/60HZ Available

Genset Type:

Open,Silent, Trailer.container.

Package:

Plastic Foam Packing Or Plywood Case

Control Module Brand:

DeepSea,Comap,Smartgen

Color:

Customized

Highlight:

50hz open generator set

60hz open generator set

50hz open diesel generator set

Product Description

Domestic Brand Weichai Engine 100KW Open Diesel Generator Set With Stamford / Meccalte Alternator

Features and benefits

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door

Technical Specifications:

Diesel Generator GPW100 (three phase)

Prime Power (kw/kva)	100/125
Standby Power (kw/kva)	110/138
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	180
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	12V 100Ah
Open Type-Dimension (LWH) (mm)	23207901455
Open Type-Weight (kg)	1200
Soundproof Type- Dimension (LWH) (mm)	300012001750
Soundproof Type-Weight (kg)	2020
Fuel Tank Capacity(L)	340
Continuous Running Time(hr.)	8

Model WP6D132E200

Engine brand	WEICHAI
Output Power (kw)	132
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Compression Ratio	18:1
Displacement (L)	6.75
Bore X Stroke (mm)	105*130
Engine Speed (r/min)	1500
Speed Governing	Mechanical
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	16
Fuel Consump. (g/kw·h)	≤198
Oil Capacity (L)	18

Product superiority:

Economical fuel consumption system, to make sure excellent fuel atomization, effective combustion control and extremely low fuel consumption
Low emission contamination
Reliable power and tight compact structure
Excellent loading response specification: high impact load, primary load exceeds 70%, perfect startup performance
Easy to install and maintain
Full storage of accessories and more than 4000 service networks worldwide
