WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
User First, Honesty Based; Create GP-brand by Quality, Gain reputation by Service.
Product Details:
Payment & Shipping Terms:
|
| Prime Power (kw/kva): | 10/12 | Standby Power (kw/kva): | 11/14 |
|---|---|---|---|
| Alternator Brand: | Stamford,Mecc-alte, Faraday, Copy Stamford | Rated Voltage (V): | 400/230 |
| Genset Type: | Open,Silent, Trailer.container. | Package: | Plastic Foam Packing Or Plywood Case |
| Control Module Brand: | DeepSea,Comap,Smartgen | Color: | Customized |
| Highlight: | brushless synchronous generator,brushless alternator generator |
||

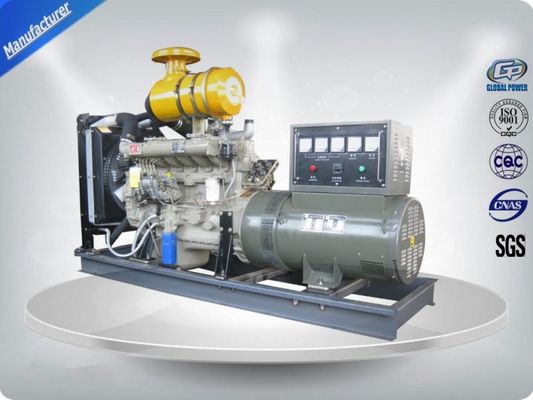

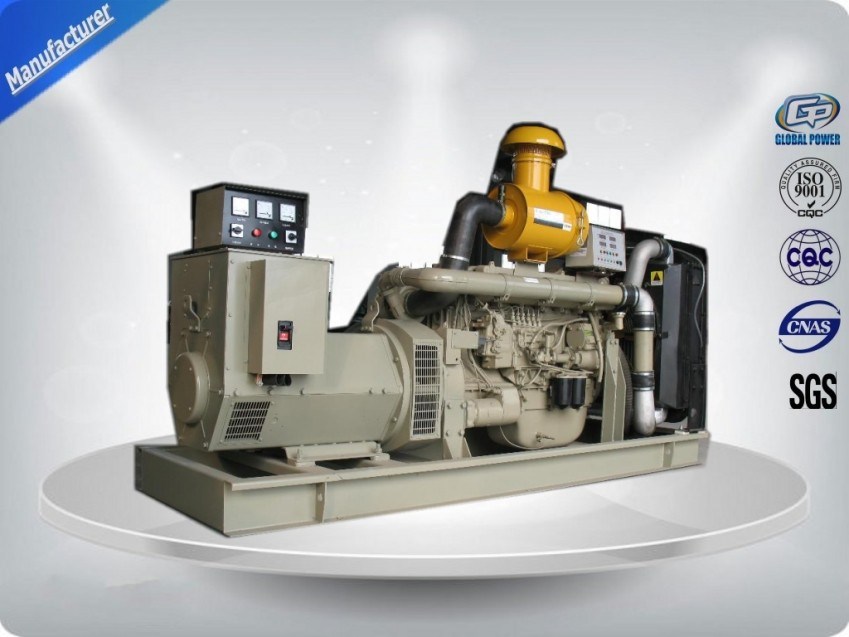

100KW Open Diesel Generator Set With Copy Stamford Alternator Ricardo Engine
Technical Specifications:
Diesel Generator GPK10 (three phase)
|
Prime Power (kw/kva) |
10/12 |
|
Standby Power (kw/kva) |
11/14 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Current (A) |
18 |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
12V 100Ah |
|
Open Type-Dimension (L*W*H) (mm) |
1700*650*1150 |
|
Open Type-Weight (kg) |
660 |
|
Soundproof Type- Dimension (L*W*H) (mm) |
2100*980*1180 |
|
Soundproof Type-Weight (kg) |
1100 |
|
Fuel Tank Capacity(L) |
120 |
|
Continuous Running Time(hr.) |
8 |
Model Y480BD
|
Engine brand |
Kofo |
|
Output Power (kw) |
14 |
|
Cylinder No. & Config. |
4, in-line |
|
Combustion System |
direct injection |
|
Aspiration type |
Natural aspirated |
|
Displacement (L) |
1.8 |
|
Bore X Stroke (mm) |
80*90 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Mechanical / Electric |
|
Starting System |
24V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
10 |
|
Fuel Consump. (g/kw·h) |
≤242 |
|
Oil Capacity (L) |
7 |
Product superiority:
Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
PHOTOS:
![]()
