LCD Display Genset 100 Kva Tightly Structure Excellent Design And Craft

Large Image : LCD Display Genset 100 Kva Tightly Structure Excellent Design And Craft

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Ricardo
Certification:	OEM/ISO9001
Model Number:	GP K70

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negociable
Packaging Details:	FOB, CRF,CIF,EXW…
Delivery Time:	25 working days after received down-payment
Payment Terms:	T/T or LC at sight
Supply Ability:	2,000sets/year

Contact Now

Detailed Product Description

Prime Power (kw/kva):	70/100	Standby Power (kw/kva):	77/110
Rated Voltage (V):	400/230	Frequency:	50HZ/60HZ Available
Genset Type:	Open,Silent, Trailer.container.	Package:	Plastic Foam Packing Or Plywood Case
Control Module Brand:	DeepSea,Comap,Smartgen	Color:	Customized
Highlight:	brushless alternator generator , engine generator set

With Stamford / Copy Stamford / Meccalte Alternator Domestic Brand Ricardo / VMAN Engine 100kw

Features and benefits

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature
up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and
unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door

Applications:

Home, Buildings, Hospitals, Train station,

Bank, Telecom, Mining, Military, Outdoor projects, etc.

Technical Specifications:

Diesel Generator GPK70 (three phase)

Prime Power (kw/kva)	70/100
Standby Power (kw/kva)	77/110
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	126
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	12V 100Ah
Open Type-Dimension (LWH) (mm)	23007001450
Open Type-Weight (kg)	1470
Soundproof Type- Dimension (LWH) (mm)	300011901690
Soundproof Type-Weight (kg)	2420
Fuel Tank Capacity(L)	420
Continuous Running Time(hr.)	8

Model R6105ZDS

Engine brand	Kofo
Output Power (kw)	84
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Aspiration type	Turbo charged
Displacement (L)	6.4
Bore X Stroke (mm)	105*125
Engine Speed (r/min)	1500
Speed Governing	Mechanical / Electric
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	23
Fuel Consump. (g/kw·h)	≤227
Oil Capacity (L)	17

Product superiority:

Economical fuel consumption system, to make sure excellent fuel atomization, effective combustion control and extremely low fuel consumption
Low emission contamination
Reliable power and tight compact structure
Excellent loading response specification: high impact load, primary load exceeds 70%, perfect startup performance
Easy to install and maintain
Full storage of accessories and more than 4000 service networks worldwide

Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.

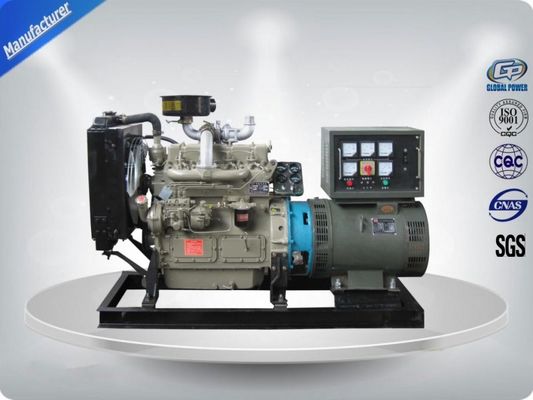

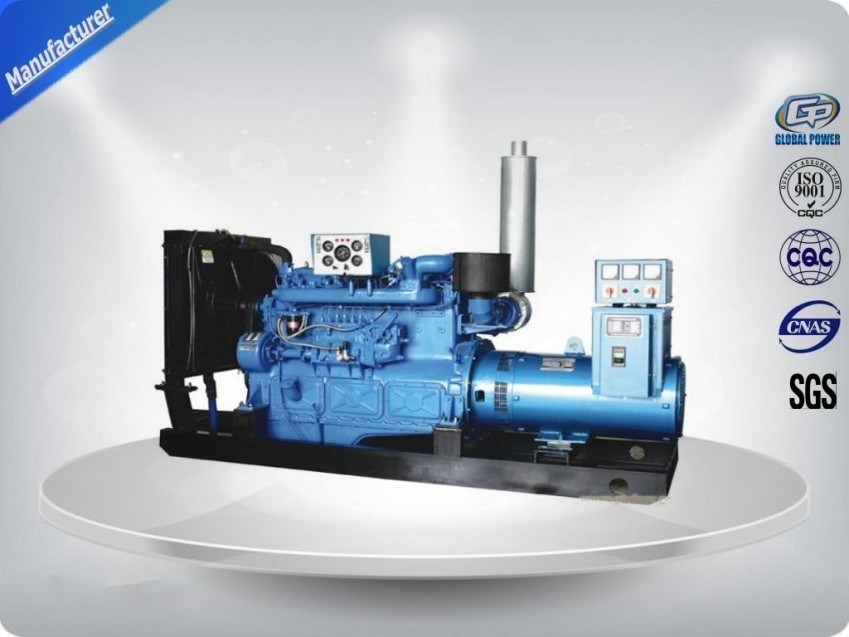

Photos of product :

LCD Display Genset 100 Kva Tightly Structure Excellent Design And Craft
