Product Details:
Payment & Shipping Terms:
|
| Prime Power (kw/kva): | 100/125 | Standby Power (kw/kva): | 110/138 |
|---|---|---|---|
| Engine Model: | VMAN /Weichai / Xichai / Ricardo | Alternator Brand: | Stamford,Mecc-alte, Faraday, Copy Stamford |
| Rated Current (A): | 180 | Genset Type: | Open,Silent, Trailer.container. |
| Package: | Plastic Foam Packing Or Plywood Case | Control Module Brand: | DeepSea,Comap,Smartgen |
| Color: | Customized | ||
| Highlight: | brushless alternator generator,engine generator set |
||
VMAN /Weichai / Xichai / Ricardo Chinese Engine Open Diesel Generator Set Powered By 10-100kw
Product superiority:

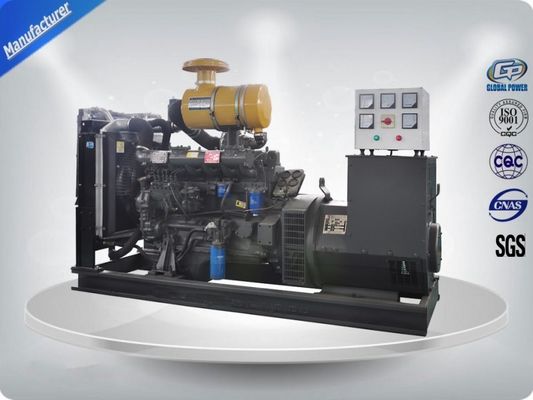

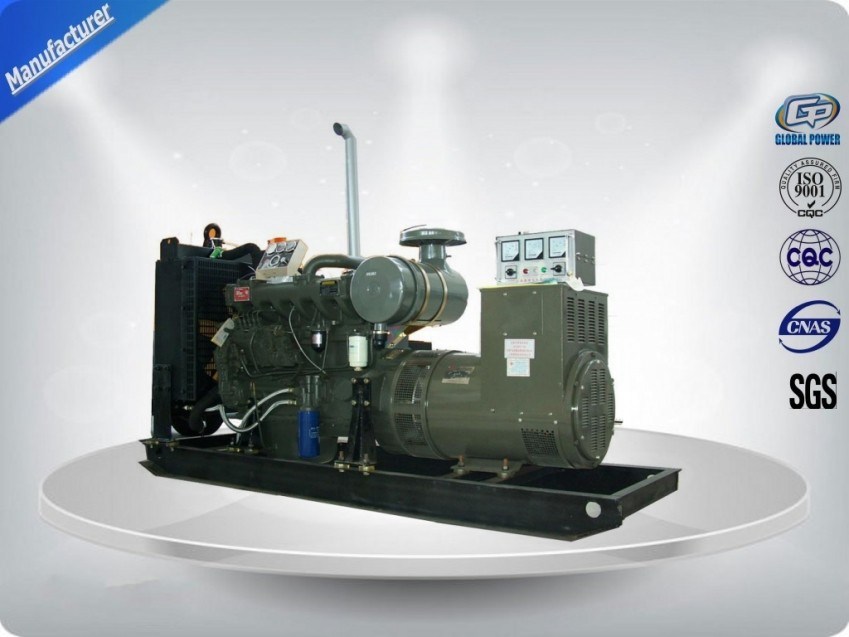

Photos of product :
Control system
Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
Technical data
Diesel Generator GPK100 (three phase)
|
Prime Power (kw/kva) |
100/125 |
|
Standby Power (kw/kva) |
110/138 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Current (A) |
180 |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
12V 100Ah |
|
Open Type-Dimension (L*W*H) (mm) |
2300*700*1450 |
|
Open Type-Weight (kg) |
1700 |
|
Soundproof Type- Dimension (L*W*H) (mm) |
3100*1400*1950 |
|
Soundproof Type-Weight (kg) |
2650 |
|
Fuel Tank Capacity(L) |
420 |
|
Continuous Running Time(hr.) |
8 |
Model R6105BZLDS
|
Engine brand |
Kofo |
|
Output Power (kw) |
132 |
|
Cylinder No. & Config. |
6, in-line |
|
Combustion System |
direct injection |
|
Aspiration type |
Turbo charged & Intercooled |
|
Displacement (L) |
7.0 |
|
Bore X Stroke (mm) |
105*135 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Mechanical / Electric |
|
Starting System |
24V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
23 |
|
Fuel Consump. (g/kw·h) |
≤218 |
|
Oil Capacity (L) |
17 |
