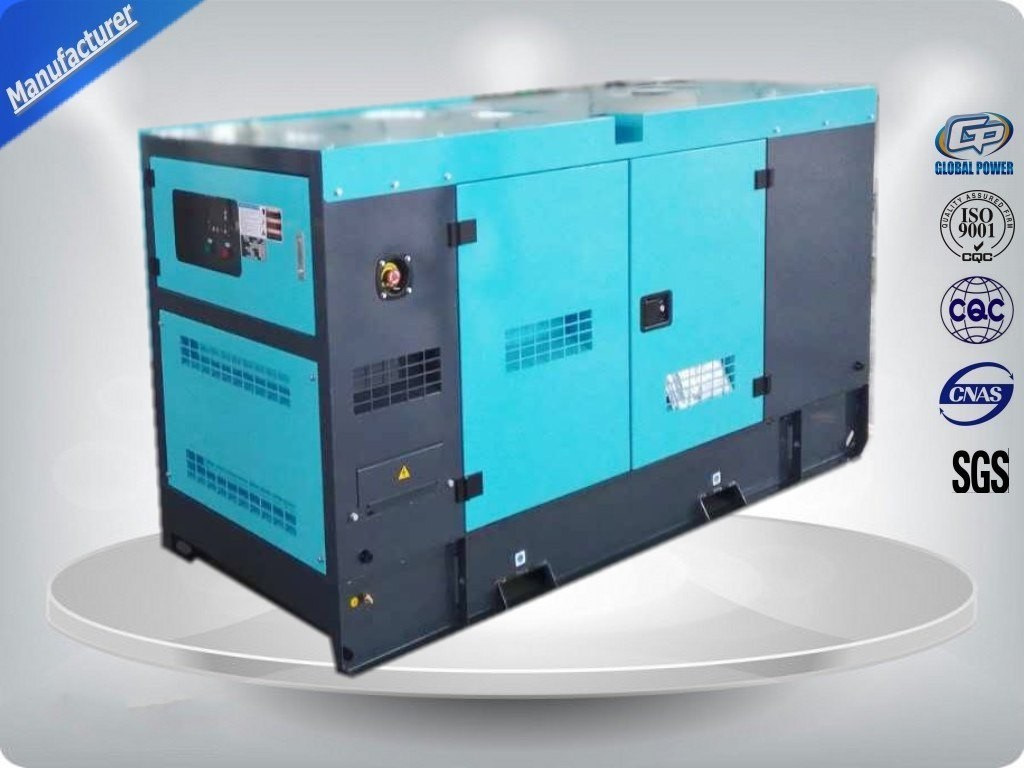

Black Start Weichai 150kw Electric Generator Set With Diesel Engine R6110ZLD

: Large Image : Black Start Weichai 150kw Electric Generator Set With Diesel Engine R6110ZLD

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	CCS / ISO
Model Number:	GP W150

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negociable
Packaging Details:	Plastic Foam or Plywood Case
Delivery Time:	30-35 days after receiving the down-payment

Contact Now

Detailed Product Description

Rating:	150kw/188kva	Cooling System:	Water Cooling
Output Type:	AC Three Phase	Speed & Frequency:	1500prm ,50Hz/ 18000rpm, 60HZ
Conditions Of Use:	Land Use	Usage:	Standby Power Supply
Excitation Mode:	AC Rotating Exciter	Engine Type:	Vertical In-line
Highlight:	Emergency Generator Set , power generating sets

Origin Certificate black start Weichai 150kw diesel power generaotor genset with diesel engine R6110ZLD

weichai the full range of products with high power ,torque,high reliability,low fuel consumption,low emission ,low noise ,adaptation sex strong characteristic

1, 20kw ~250kw Weichai diesel generator set

Ricardo diesel engine is basic on the introduction of foreign(Ricardo Britain) advanced diesel engine technology and developed which is characterized by economical fuel consumption,low noise,powerful,stable operation and reliable performance.

2,Main specification

a,3-Phase, 50Hz@1500RPM, 400/230V (Also Can Be Made According To Customers’ Special Requirements)

b,12V/24V DC start motor and storage battery

c,Brushless, Self-excited, IP21-23, insulation class H alternator

d, 40°C radiator as standard, 50°C is optional

e,Key start panel control system as standard, digital auto-start panel is optional

f,All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

About the Warranty Clain:
1.Generator engine is covered by global service system. If there are any fault on engine that you can call local service station for global warranty service.
2. For the other parts of genset, since 98% of the faults are on engine. for the other parts, we can provide warranty service.

Prime power (KVA)	Standby power (kw)	Engine model	Fuel consumption (L/H)	Open Genset Dimension (mm)
565/625	450/500	KTAA19-G5	113	3345x1550x2186
588/650	470/520	KTAA19-G6	118.5	3620x1550x2230
----/688	----/550	KTAA19-G6A	127.8	3460x1550x2232
----/688	----/550	KTAA19-G7	127.8	3716x1550x2285

Prime power (KVA)	Standby power (kw)	Engine model	Fuel consumption (L/H)	Open Genset Dimension (mm)
500/550	625/688	KT38-G	140	3900x1800x2350
650/715	520/572	QSK19-G3	143	3900x1550x2350
725/798	580/638	KTA38-GA	162.5	4044x1800x2345
750/825	600/660	KTA38-G2	167	3716x1550x2285

Cummins Marine Diesel Generator Sets are hot cakes in the market and used in more than 150 countries all over the world.
Cummins Marine Diesel Generator Sets have feasures of compact structure, full power ranging, low fuel consumptions of marine engines, low noise, reliable marine generating set performing and long life span.
Cummins Marine Diesel Generator Sets are originally with Cummins global warranty net, namely you can get services and spare parts easily from Cummins sales agency or service centres all over the world.
Can provide certificates of Marine Products, conforming to IACS (International Association of Classification Societies)

CUMMINS Models

Specification:

1. Specification of genset
Rated frequency(HZ)				50
Rated speed				1500rpm
Power factor				0.8(lagging)
Dimensions(mm) (L×W×H)				22508501400
Genset weight(kg)				1500
2. Specification of diesel engine
Cylinder arrangement				Vertical in-line
Cycle				Four stroke
Aspiration				Turbocharged
Bore×Stroke (mm×mm)				114 x 135
Displacement (Liter)				8.3
Rated speed				1500rpm
Starting Method				DC24V electrical starting
Speed Governor				Electronic
Cooling System				By sea water heat exchanger
Fuel Consumption				212g/kw.h
3. Specification of alternator
Number of Phase				3
Connecting Type				3 Phase and 4 Wires
Number of Bearing				1
Protection Grade				IP23
Exciter Type				Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class				H

Black Start Weichai 150kw Electric Generator Set With Diesel Engine R6110ZLD
Supply Scope:
Complete Cummins Marine Diesel Generator Sets including marine diesel engine, alternator, heat exchanger+water pump or radiator, standard control system, circuit breaker, absorber, filters, testing report, marine class certificate, user books and other accessories etc..

Global Power Service:

1. In manufacturing of power generators, GLOBAL POWER is able to draw on an experience
    of more than 10 years. Our total production capacity is about 20,000 units per year.
2. The power generator sets are designed for continuous power supply and have proved 10,000
    fold around the world in various applications on every continent.
3. Except standard products, we also provide customized design service for you, design generator
    sets as per your specific requirements.
4. We provide professional & in time service after sale.
