Product Details:
Payment & Shipping Terms:
|
| Engine Brand:: | VOLVO | Alternator Brand:: | Stamford / Meecalt / Copy Stamford |
|---|---|---|---|
| Engine Model:: | TAD734GE/216 | Frequency (Hz): | 50 |
| Generator Type:: | Open / Slient | Control Module Brand: | Comap,SmartGen, DeepSea |
| Package: | Plastic Foam Or Plywood Case | ||
| Highlight: | Emergency Generator Set,power generating sets |
||
VOLVO brand diesel generator set heavy duty feature automatic type diesel silent power
Basic Specification:
1. Engine brand, volvo.
2. Alternator brand, Meccalte, Stanform, GP...etc
3. Direct injection internal combustion engine
4. AC synchronous generator ( single bearing)
5. Cooling way, radiator with fan & water tank
6. Open type, closed type ( with sound proof canopy, trailer, container)
7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set
8. Anti-vibration isolaters
9. Brushless 3 phase
10.Integral guel tank ( 8 hours)
11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)
12.50/60hz
13. Atomatic alarm system
14. Insulation, class H
Diesel Generator GPV200 (three phase)
|
Prime Power (kw/kva) |
200/250 |
|
Standby Power (kw/kva) |
220/275 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Current (A) |
361 |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
12V 100Ah |
|
Open Type-Dimension (L*W*H) (mm) |
2700*1060*1550 |
|
Open Type-Weight (kg) |
1880 |
|
Soundproof Type- Dimension (L*W*H) (mm) |
3800*1700*2100 |
|
Soundproof Type-Weight (kg) |
5080 |
|
Fuel Tank Capacity(L) |
570 |
|
Continuous Running Time(hr.) |
8 |
2.Engine Technical data
Model TAD734GE
|
Engine brand |
VOLVO |
|
Output Power (kw) |
216 |
|
Cylinder No. & Config. |
6, in-line |
|
Combustion System |
direct injection |
|
Compression Ratio |
17:1 |
|
Displacement (L) |
7.15 |
|
Bore X Stroke (mm) |
108*130 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Electronic |
|
Starting System |
24V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
37.1 |
|
Fuel Consump. (g/kw·h) |
204 |
|
Oil Capacity (L) |
34 |

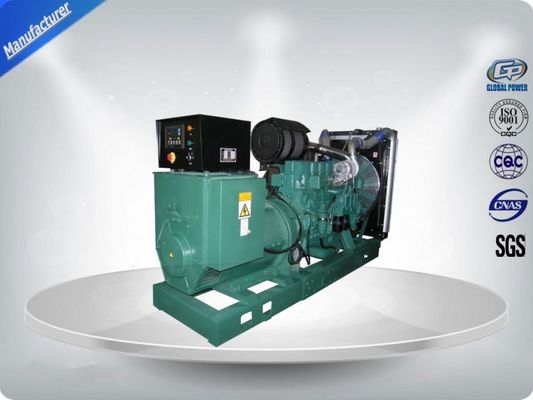

Product Picture:
Features and benefits
VOLVO brand diesel generator set heavy duty feature automatic type diesel silent power
