Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Cummins | Prime Power: | 520 / 650 Kw/kva |
|---|---|---|---|
| Speed Governing: | Electronic | Alternator: | Stamford |
| Type: | HCI544F | Filter System: | Dry Oil Filter/Fuel Filter/Oil Filter |
| Insulation Class: | H | Voltage Regulation Mode: | AVR |
| Highlight: | brushless alternator generator,engine generator set |
||

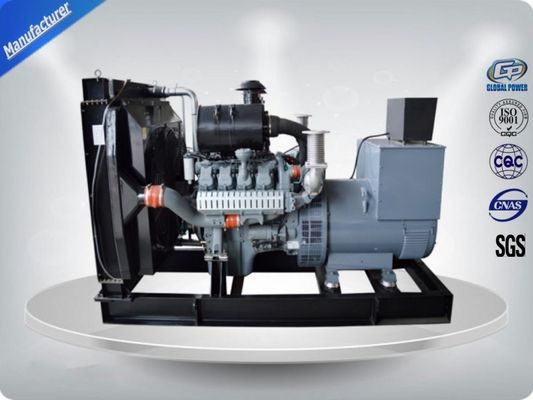

Prime 520 kva automatic Open Generator with Stamford Alternator, diesel genset
Guarantee:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
Technical Specifications :
|
Genset |
Prime Power (kw/kva) |
520 / 650 |
|
|
Voltage Recovery Time |
≤1S |
||
|
Rated Current (A) |
938 |
||
|
Rated Frequency (Hz) |
50 |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
24V 100Ah |
||
|
Fuel Tank Capacity(L) |
800 |
||
|
Engine |
Engine brand |
Cummins |
|
|
Output Power (kw) |
574 |
||
|
Cylinder No. & Config. |
6, in-line |
||
|
Combustion System |
direct injection |
||
|
Compression Ratio |
13.0:1 |
||
|
Displacement (L) |
18.9 |
||
|
Bore X Stroke (mm) |
159*159 |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Electronic |
||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Alternator |
Alternator brand |
Stamford HCI544F |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
Our Features :
1) Universal design and manufacture
2) Engineers are familiar with diesel generators powered by Cummins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
Inspection:
1. Each engine will be tested at manufacturer’s workshop to certify the engine output, according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2. All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

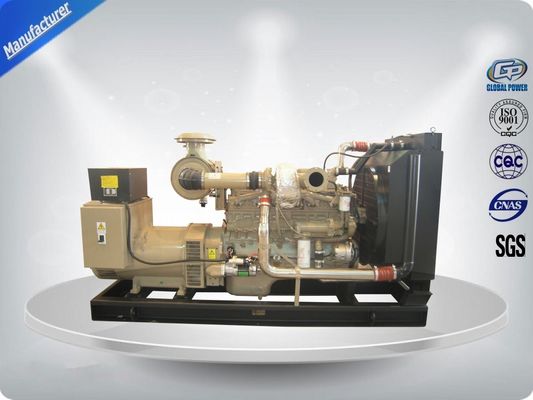

Our Picture :
Control system includes:
1. automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button
Standard Supply Scope:
Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
Our Service :
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
Conclusion:
Genset Construction - All our gensets are built with original diesel engines coupled to a brushless alternator mounted onto a steel base frame with channel supports on anti-vibrating rubber mountings. The fuel tank is fabricated of mild steel and is incorporated into the base frame. The size of the tank is dependent on the size of the generator.
