Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Perkins | Engine Model: | 403A-15G2 |
|---|---|---|---|
| Engine Output: | 15 | Rated Frequency: | 50 Hz |
| Alternator: | Stamford / Meecalt / Copy Stamford | Rated Voltage (V): | 400/230 |
| Rated Current: | 108A | Starting System: | 24V DC Electric |
| Highlight: | brushless synchronous generator,engine generator set |
||

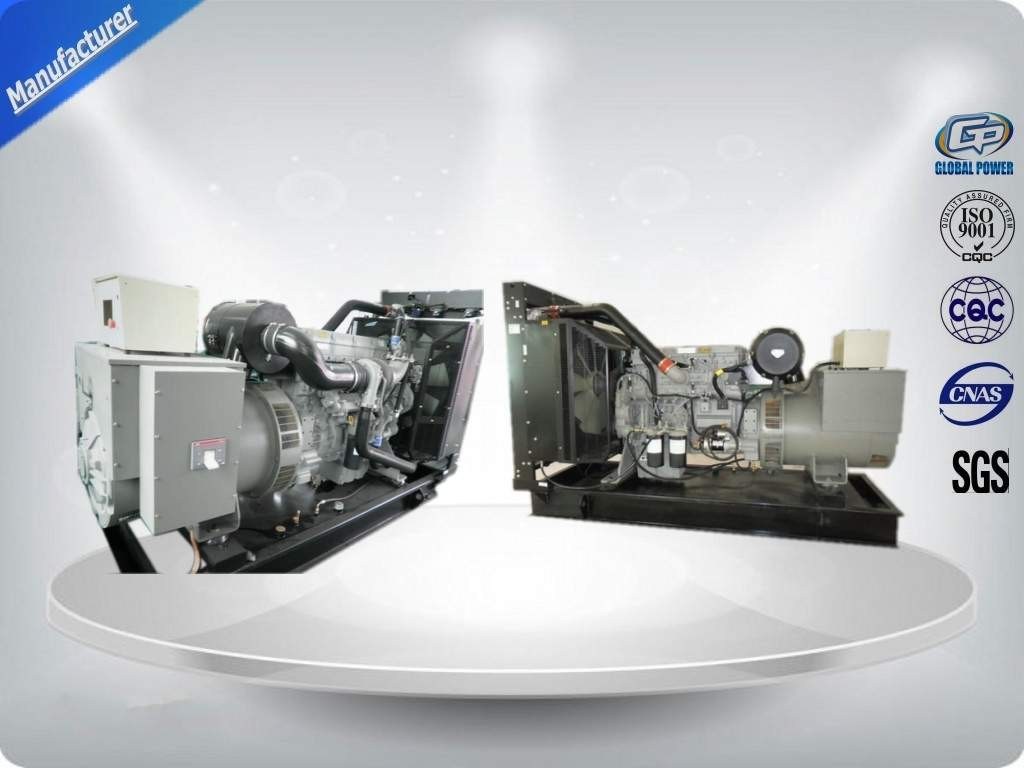

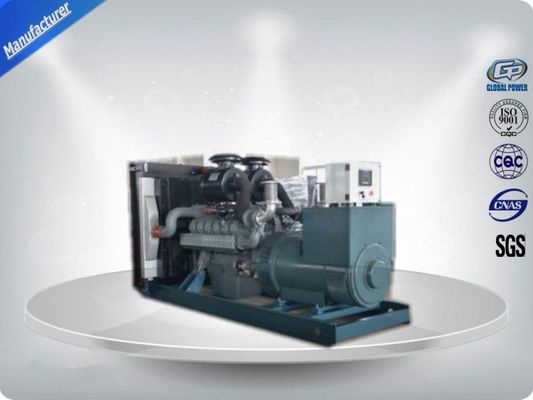

15kva emergency low-fuel generator with Perkins 403A-15G2 engine, Open Type water-cooled
Genset Construction - All our gensets are built with original diesel engines coupled to a brushless alternator mounted onto a steel base frame with channel supports on anti-vibrating rubber mountings. The fuel tank is fabricated of mild steel and is incorporated into the base frame. The size of the tank is dependent on the size of the generator.
Our Features :
1) Universal design and manufacture.
2) Engineers are familiar with diesel generators powered by Perkins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door
Technical Specifications :
Prime Power (kw/kva) | 12/15 |
Standby Power (kw/kva) | 13/16 |
Rated Voltage (V) | 400/230 |
Voltage Recovery Time | ≤1S |
Rated Current (A) | 21.6 |
Rated Frequency (Hz) | 50 |
Frequency Recovery Time | ≤5S |
Wave Distortion | ≤5%, sine wave |
Running Noise db(A)/7m(Silent type) | 75 |
Battery capacity (V-Ah) | 12V 100Ah |
Open Type-Dimension (L*W*H) (mm) | 1500*550*1000 |
Open Type-Weight (kg) | 600 |
Soundproof Type- Dimension (L*W*H) (mm) | 1800*750*1120 |
Soundproof Type-Weight (kg) | 1300 |
Fuel Tank Capacity(L) | 40 |
Perkins Engine:
Engine brand | Perkins |
Output Power (kw) | 15 |
Cylinder No. & Config. | 3, in-line |
Combustion System | Indirect injection |
Compression Ratio | 22.5:1 |
Displacement (L) | 1.496 |
Bore X Stroke (mm) | 84*90 |
Engine Speed (r/min) | 1500 |
Speed Governing | Mechanical |
Starting System | 12V DC Electric |
Filter System | Dry oil filter/Fuel filter/Oil filter |
Cooling system | Water-cooled |
Coolant capacity (L) | 6 |
Fuel Consump. (g/kw·h) | 250 |
Oil Capacity (L) | 6 |
Alternator:
Alternator brand | Meccalte |
Rated Power (kw) | 13.6 |
Excitation System | Brushless, self-exciting |
Voltage Regulation Mode | AVR |
Connection Type | 3phase,4wires,”Y” connection |
Pole No. | 4 |
Rotation Speed (r/min) | 1500 |
Temperature Rise (℃) | 125 |
Insulation class | H |
Voltage Regulation (0 load) | ≥95%～105% |
Voltage accuracy | ≤±1% |
Protection Grade | IP23 |
Telephone Influence Factor | TIF＜50 |
Harmonic Coefficient | THF＜2% |
Control system
Brand: DeepSea,Comap,Smartgen
feature:
Our Photo:
Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
Standard Supply Scope:
Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
