Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Perkins | Engine Model: | 404A-22G |
|---|---|---|---|
| Prime Power: | 16/20 Kw/kva | Standby Power: | 18/23 Kw/kva |
| Alternator: | Stamford / Meecalt / Copy Stamford | Rated Voltage (V): | 400/230 |
| Rated Current: | 108A | Fuel Tank Capacity: | 70 L |
| Highlight: | marine diesel genset,Emergency Generator Set |
||

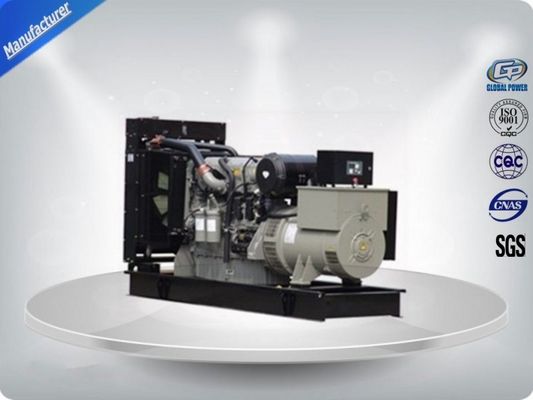

Power Generator with Perkins diesel engine, open or soundproof automatic operating
Features and benefits:
Our Features :
1) Universal design and manufacture.
2) Engineers are familiar with diesel generators powered by Perkins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door
Technical Specifications :
Prime Power (kw/kva) | 16/20 |
Standby Power (kw/kva) | 18/23 |
Rated Voltage (V) | 400/230 |
Voltage Recovery Time | ≤1S |
Rated Current (A) | 29 |
Rated Frequency (Hz) | 50 |
Frequency Recovery Time | ≤5S |
Wave Distortion | ≤5%, sine wave |
Running Noise db(A)/7m(Silent type) | 75 |
Battery capacity (V-Ah) | 12V 100Ah |
Open Type-Dimension (L*W*H) (mm) | 1500*550*1000 |
Open Type-Weight (kg) | 600 |
Soundproof Type- Dimension (L*W*H) (mm) | 1850*900*1120 |
Soundproof Type-Weight (kg) | 1530 |
Fuel Tank Capacity(L) | 70 |
Perkins Engine:
Engine brand | Perkins |
Output Power (kw) | 20 |
Cylinder No. & Config. | 4, in-line |
Combustion System | Indirect injection |
Compression Ratio | 23.3:1 |
Displacement (L) | 2.216 |
Bore X Stroke (mm) | 84*100 |
Engine Speed (r/min) | 1500 |
Speed Governing | Mechanical |
Starting System | 12V DC Electric |
Filter System | Dry oil filter/Fuel filter/Oil filter |
Cooling system | Water-cooled |
Coolant capacity (L) | 7 |
Fuel Consump. (g/kw·h) | 237 |
Oil Capacity (L) | 10.6 |
Alternator:
Alternator brand | Meccalte |
Rated Power (kw) | 16 |
Excitation System | Brushless, self-exciting |
Voltage Regulation Mode | AVR |
Connection Type | 3phase,4wires,”Y” connection |
Pole No. | 4 |
Rotation Speed (r/min) | 1500 |
Temperature Rise (℃) | 125 |
Insulation class | H |
Voltage Regulation (0 load) | ≥95%～105% |
Voltage accuracy | ≤±1% |
Protection Grade | IP23 |
Telephone Influence Factor | TIF＜50 |
Harmonic Coefficient | THF＜2% |
Control system
Brand: DeepSea,Comap,Smartgen
feature:

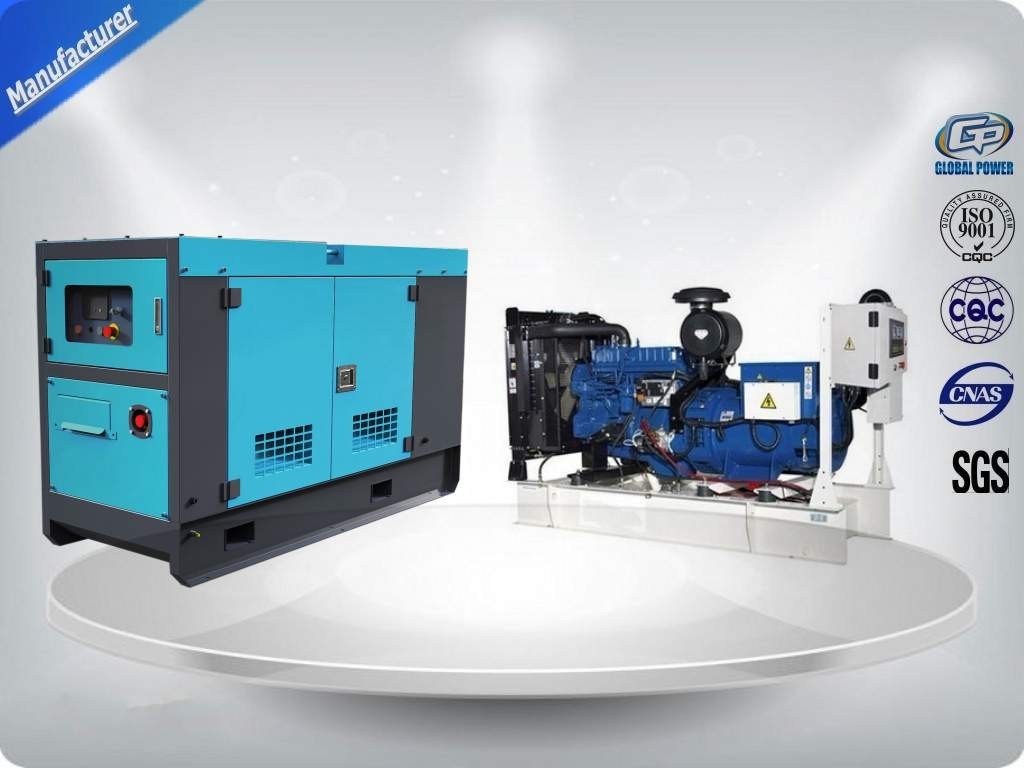

Our Photo:
Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
Our advantages :
1.Inspection
1. Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2. All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
