Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Perkins | Engine Model: | 404D-22TG |
|---|---|---|---|
| Prime Power: | 21/26 Kw/kva | Standby Power: | 23/29 Kw/kva |
| Alternator: | Stamford / Meecalt / Copy Stamford | Rated Voltage (V): | 400/230 |
| Rated Current: | 108A | Speed Governing: | Electronic |
| Dimension: | 1500*600*1150 Mm | ||
| Highlight: | brushless synchronous generator,engine generator set |
||

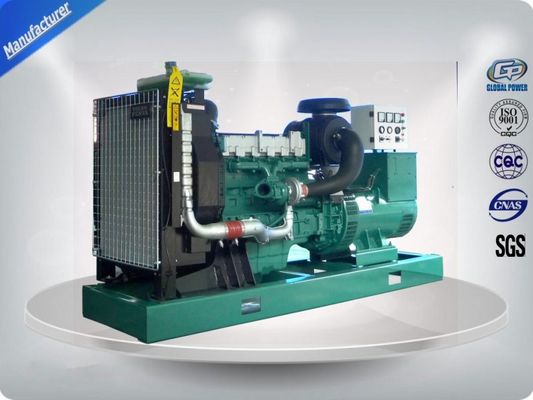

Generator 21kw 26kva power genset, high quolity with Perkins engine 400V 380V
Basic Specification:
1. Engine brand, Perkins.
2. Alternator brand, Meccalte, Stanform, GP...etc
3. Direct injection internal combustion engine
4. AC synchronous generator ( single bearing)
5. Cooling way, radiator with fan & water tank
6. Open type, closed type ( with sound proof canopy, trailer, container)
7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set
8. Anti-vibration isolaters
9. Brushless 3 phase
10.Integral guel tank ( 8 hours)
11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)
12.50/60hz
13. Atomatic alarm system
14. Insulation, class H
Applications:
Home, Buildings, Hospitals, Train station, Bank, Telecom, Mining, Military, Outdoor projects, etc.
Technical Specifications :
Prime Power (kw/kva) | 21/26 |
Standby Power (kw/kva) | 23/29 |
Rated Voltage (V) | 400/230 |
Voltage Recovery Time | ≤1S |
Rated Current (A) | 38 |
Rated Frequency (Hz) | 50 |
Frequency Recovery Time | ≤5S |
Wave Distortion | ≤5%, sine wave |
Running Noise db(A)/7m(Silent type) | 75 |
Battery capacity (V-Ah) | 12V 100Ah |
Open Type-Dimension (L*W*H) (mm) | 1500*600*1150 |
Open Type-Weight (kg) | 620 |
Soundproof Type- Dimension (L*W*H) (mm) | 1850*900*1250 |
Soundproof Type-Weight (kg) | 1580 |
Fuel Tank Capacity(L) | 70 |
Perkins Engine:
Model 404D-22TG
Engine brand | Perkins |
Output Power (kw) | 27.7 |
Cylinder No. & Config. | 4, in-line |
Combustion System | Indirect injection |
Compression Ratio | 23.3:1 |
Displacement (L) | 2.216 |
Bore X Stroke (mm) | 84*100 |
Engine Speed (r/min) | 1500 |
Speed Governing | Electronic |
Starting System | 12V DC Electric |
Filter System | Dry oil filter/Fuel filter/Oil filter |
Cooling system | Water-cooled |
Coolant capacity (L) | 9.3 |
Fuel Consump. (g/kw·h) | 246 |
Oil Capacity (L) | 10.6 |
Alternator:
Model ECP28-VL/4
Alternator brand | Meccalte |
Rated Power (kw) | 24 |
Excitation System | Brushless, self-exciting |
Voltage Regulation Mode | AVR |
Connection Type | 3phase,4wires,”Y” connection |
Pole No. | 4 |
Rotation Speed (r/min) | 1500 |
Temperature Rise (℃) | 125 |
Insulation class | H |
Voltage Regulation (0 load) | ≥95%～105% |
Voltage accuracy | ≤±1% |
Protection Grade | IP23 |
Telephone Influence Factor | TIF＜50 |
Harmonic Coefficient | THF＜2% |
Control system
Brand: DeepSea,Comap,Smartgen
feature:

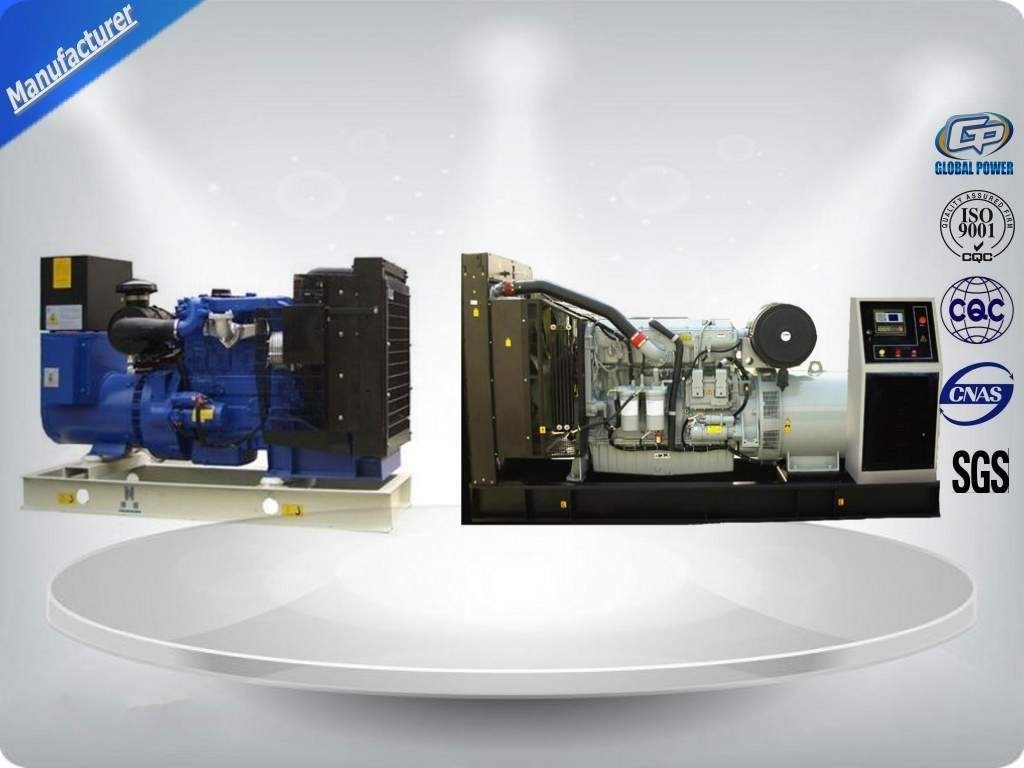

Our Picture :
Standard Supply Scope:
Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
