Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Perkins | Engine Model: | 1103A-33G |
|---|---|---|---|
| Prime Power: | 24kw 30kva | Alternator: | Stamford / Meecalt / Copy Stamford |
| Rated Voltage (V): | 400/230 | Rated Current: | 108A |
| Speed Governing: | Electronic | Dimension: | 1500*600*1150 Mm |
| Weight: | 750 Kg | ||
| Highlight: | brushless alternator generator,engine generator set |
||

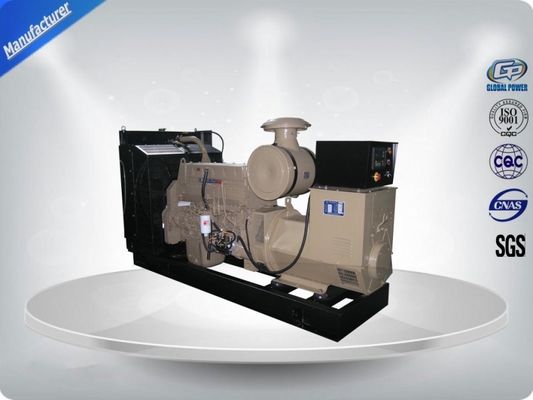

24kw / 30kva power generator open type water-cooled, with Perkins diesel 1500rpm 50Hz
Genset Construction - All our gensets are built with original diesel engines coupled to a brushless alternator mounted onto a steel base frame with channel supports on anti-vibrating rubber mountings. The fuel tank is fabricated of mild steel and is incorporated into the base frame. The size of the tank is dependent on the size of the generator.
Applications:
Home, Buildings, Hospitals, Train station, Bank, Telecom, Mining, Military, Outdoor projects, etc.
Technical Specifications :
Prime Power (kw/kva) | 24/30 |
Standby Power (kw/kva) | 26/33 |
Rated Voltage (V) | 400/230 |
Voltage Recovery Time | ≤1S |
Rated Current (A) | 43 |
Rated Frequency (Hz) | 50 |
Frequency Recovery Time | ≤5S |
Wave Distortion | ≤5%, sine wave |
Running Noise db(A)/7m(Silent type) | 75 |
Battery capacity (V-Ah) | 12V 100Ah |
Open Type-Dimension (L*W*H) (mm) | 1500*650*1080 |
Open Type-Weight (kg) | 750 |
Soundproof Type- Dimension (L*W*H) (mm) | 2100*950*1400 |
Soundproof Type-Weight (kg) | 1800 |
Fuel Tank Capacity(L) | 70 |
Perkins Engine:
Model 1103A-33G
Engine brand | Perkins |
Output Power (kw) | 31 |
Cylinder No. & Config. | 3, in-line |
Combustion System | direct injection |
Compression Ratio | 19.25:1 |
Displacement (L) | 3.3 |
Bore X Stroke (mm) | 105*127 |
Engine Speed (r/min) | 1500 |
Speed Governing | Electronic |
Starting System | 12V DC Electric |
Filter System | Dry oil filter/Fuel filter/Oil filter |
Cooling system | Water-cooled |
Coolant capacity (L) | 10.2 |
Fuel Consump. (g/kw·h) | 211.1 |
Oil Capacity (L) | 8.3 |
Alternator:
Model ECP28-VL/4
Alternator brand | Meccalte |
Rated Power (kw) | 24 |
Excitation System | Brushless, self-exciting |
Voltage Regulation Mode | AVR |
Connection Type | 3phase,4wires,”Y” connection |
Pole No. | 4 |
Rotation Speed (r/min) | 1500 |
Temperature Rise (℃) | 125 |
Insulation class | H |
Voltage Regulation (0 load) | ≥95%～105% |
Voltage accuracy | ≤±1% |
Protection Grade | IP23 |
Telephone Influence Factor | TIF＜50 |
Harmonic Coefficient | THF＜2% |
Control system
Brand: DeepSea,Comap,Smartgen
feature:

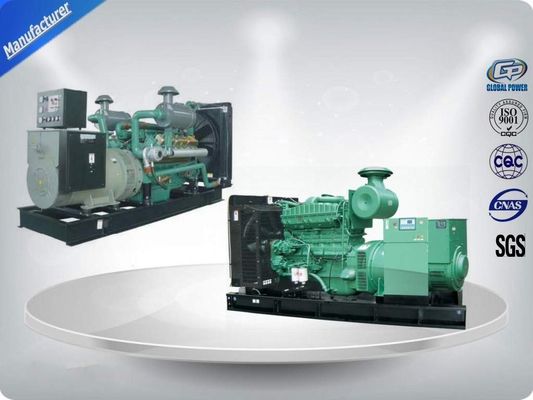

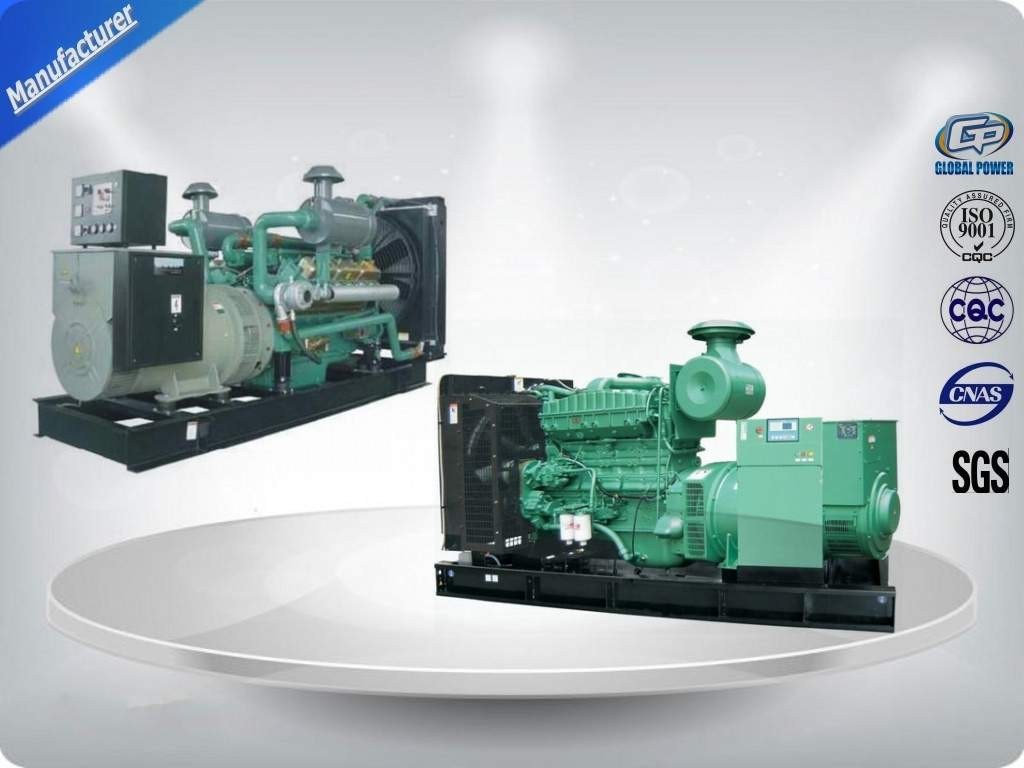

Our Picture :
Basic Specification:
1. Engine brand: Perkins.
2. Alternator brand, Meccalte, Stanform, GP...etc
3. Direct injection internal combustion engine
4. AC synchronous generator ( single bearing)
5. Cooling way, radiator with fan & water tank
6. Open type, closed type ( with sound proof canopy, trailer, container)
7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set
8. Anti-vibration isolaters
9. Brushless 3 phase
10.Integral guel tank ( 8 hours)
11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)
12.50/60hz
13. Atomatic alarm system
14. Insulation, class H
Our advantages:
1.Inspection
1.Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2.All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3.All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
