Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Perkins | Engine Model: | 1103A-33TG2 |
|---|---|---|---|
| Prime Power: | 48kw 60kva | Rated Frequency: | 50 Hz |
| Rated Voltage (V): | 400/230 | Rated Current: | 65 A |
| Fuel Consump.: | 217.7 G/kw·h | Connection Type: | 3phase,4wires, |
| Highlight: | brushless alternator generator,engine generator set |
||

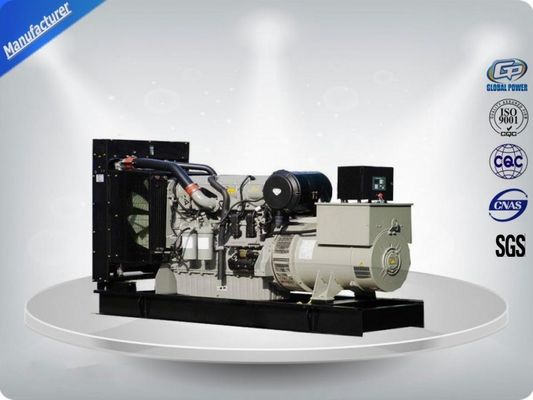

Diesel power generators 48kw 60kva, opne type with Perkins Meccalte brushless 50 Hz genset
Technical Specifications :
Prime Power (kw/kva) | 48/60 |
Standby Power (kw/kva) | 53/66 |
Rated Voltage (V) | 400/230 |
Voltage Recovery Time | ≤1S |
Rated Current (A) | 86 |
Rated Frequency (Hz) | 50 |
Frequency Recovery Time | ≤5S |
Wave Distortion | ≤5%, sine wave |
Running Noise db(A)/7m(Silent type) | 75 |
Battery capacity (V-Ah) | 12V 100Ah |
Open Type-Dimension (L*W*H) (mm) | 1700*650*1080 |
Open Type-Weight (kg) | 850 |
Soundproof Type- Dimension (L*W*H) (mm) | 2450*1050*1550 |
Soundproof Type-Weight (kg) | 2100 |
Fuel Tank Capacity(L) | 120 |
Continuous Running Time(hr.) | 8 |
Features and benefits:
Perkins Engine:
Model 1103A-33TG2
Engine brand | Perkins |
Output Power (kw) | 64 |
Cylinder No. & Config. | 3, in-line |
Combustion System | direct injection |
Compression Ratio | 17.25:1 |
Displacement (L) | 3.3 |
Bore X Stroke (mm) | 105*127 |
Engine Speed (r/min) | 1500 |
Speed Governing | Electronic |
Starting System | 12V DC Electric |
Filter System | Dry oil filter/Fuel filter/Oil filter |
Cooling system | Water-cooled |
Coolant capacity (L) | 10.2 |
Fuel Consump. (g/kw·h) | 217.7 |
Oil Capacity (L) | 8.3 |
feature:
Alternator:
Model ECP32-2L/4
Alternator brand | Meccalte |
Rated Power (kw) | 50.4 |
Excitation System | Brushless, self-exciting |
Voltage Regulation Mode | AVR |
Connection Type | 3phase,4wires,”Y” connection |
Pole No. | 4 |
Rotation Speed (r/min) | 1500 |
Temperature Rise (℃) | 125 |
Insulation class | H |
Voltage Regulation (0 load) | ≥95%～105% |
Voltage accuracy | ≤±1% |
Protection Grade | IP23 |
Telephone Influence Factor | TIF＜50 |
Harmonic Coefficient | THF＜2% |
feature:
Control system
Brand: martgen HGM410
1. automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button

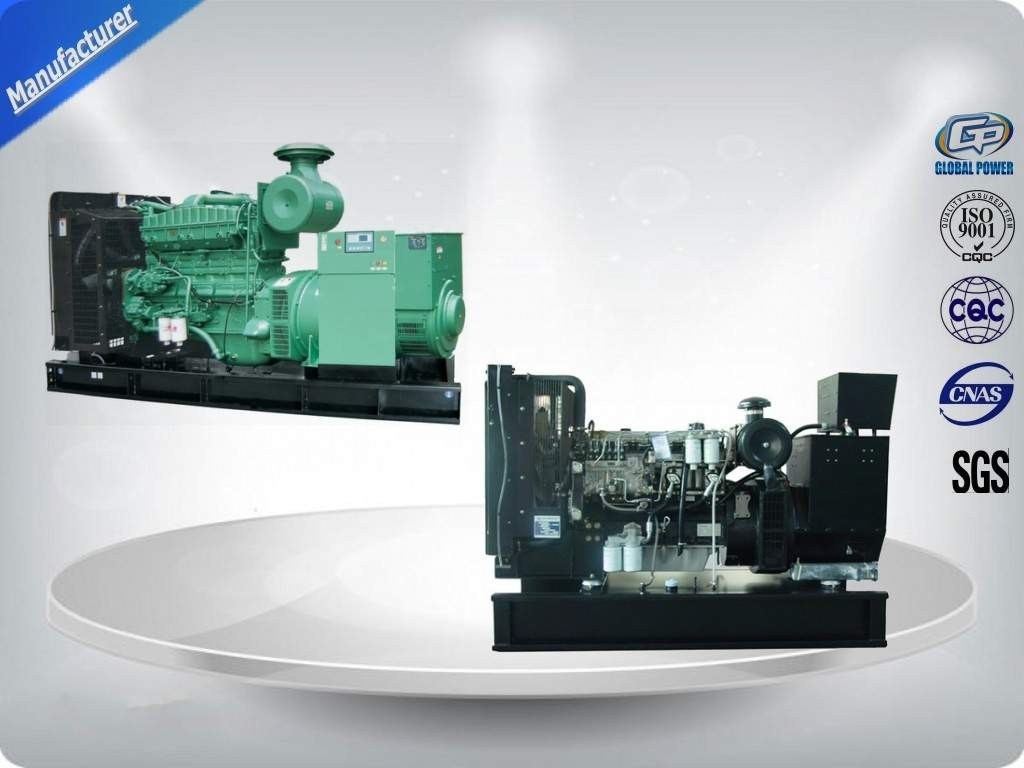

Our Picture :
Basic Specification:
1. Perkins.
2. Meccalte, Stanform, GP...etc
3. Direct injection internal combustion engine
4. AC synchronous generator ( single bearing)
5. Cooling way, radiator with fan & water tank
6. Open type, closed type ( with sound proof canopy, trailer, container)
7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set
8. Anti-vibration isolaters
9. Brushless 3 phase
10.Integral guel tank ( 8 hours)
11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)
12.50/60hz
13. Atomatic alarm system
