Product Details:
Payment & Shipping Terms:
|
| Engine Model: | Perkins 1104C-44TAG2 | Prime Power: | 80kw 100kva |
|---|---|---|---|
| Rated Frequency: | 50 Hz | Rated Voltage (V): | 400/230 |
| Rated Current: | 144A | Continuous Running Time: | 8 Hr |
| Dimension: | 1900*720*1150 Mm | Weight: | 2600 |
| Highlight: | marine diesel genset,Emergency Generator Set |
||

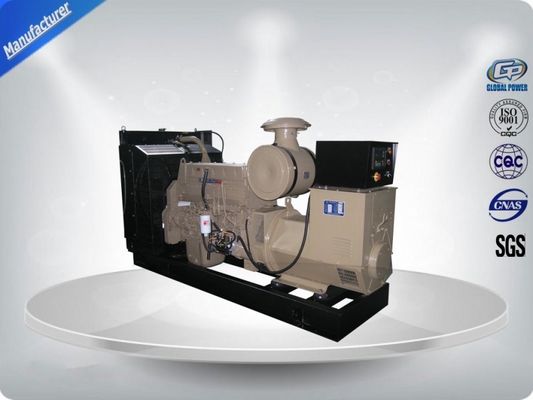

400V / 380V power generator tightly structure, 50Hz 100kva with Perkin / Cummins diesel engine
Applications:
Buildings, Hospitals, Train station,Bank,Telecom, Mining, Military, Outdoor projects, etc.
All our gensets are built with original diesel engines coupled to a brushless alternator mounted onto a steel base frame with channel supports on anti-vibrating rubber mountings. The fuel tank is fabricated of mild steel and is incorporated into the base frame. The size of the tank is dependent on the size of the generator.
Technical Specifications :
|
Prime Power (kw/kva) |
80/100 |
|
Standby Power (kw/kva) |
88/110 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Current (A) |
144 |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
12V 100Ah |
|
Open Type-Dimension (L*W*H) (mm) |
1900*720*1150 |
|
Open Type-Weight (kg) |
1000 |
|
Soundproof Type- Dimension (L*W*H) (mm) |
2700*1150*1700 |
|
Soundproof Type-Weight (kg) |
2600 |
|
Fuel Tank Capacity(L) |
180 |
|
Continuous Running Time(hr.) |
8 |
Features and benefits:
Perkins Engine:
Model 1104C-44TAG2
|
Engine brand |
Perkins |
|
Output Power (kw) |
103 |
|
Cylinder No. & Config. |
4, in-line |
|
Combustion System |
direct injection |
|
Compression Ratio |
18.2:1 |
|
Displacement (L) |
4.41 |
|
Bore X Stroke (mm) |
105*127 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Electronic |
|
Starting System |
12V/24V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
12.6 |
|
Fuel Consump. (g/kw·h) |
205 |
|
Oil Capacity (L) |
8 |
feature:
Alternator:
Model ECP34-2S/4
|
Alternator brand |
Meccalte |
|
Rated Power (kw) |
84 |
|
Excitation System |
Brushless, self-exciting |
|
Voltage Regulation Mode |
AVR |
|
Connection Type |
3phase,4wires,”Y” connection |
|
Pole No. |
4 |
|
Rotation Speed (r/min) |
1500 |
|
Temperature Rise (℃) |
125 |
|
Insulation class |
H |
|
Voltage Regulation (0 load) |
≥95%～105% |
|
Voltage accuracy |
≤±1% |
|
Protection Grade |
IP23 |
|
Telephone Influence Factor |
TIF＜50 |
|
Harmonic Coefficient |
THF＜2% |
feature:
Control system:
HGM410 controller
1. automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button

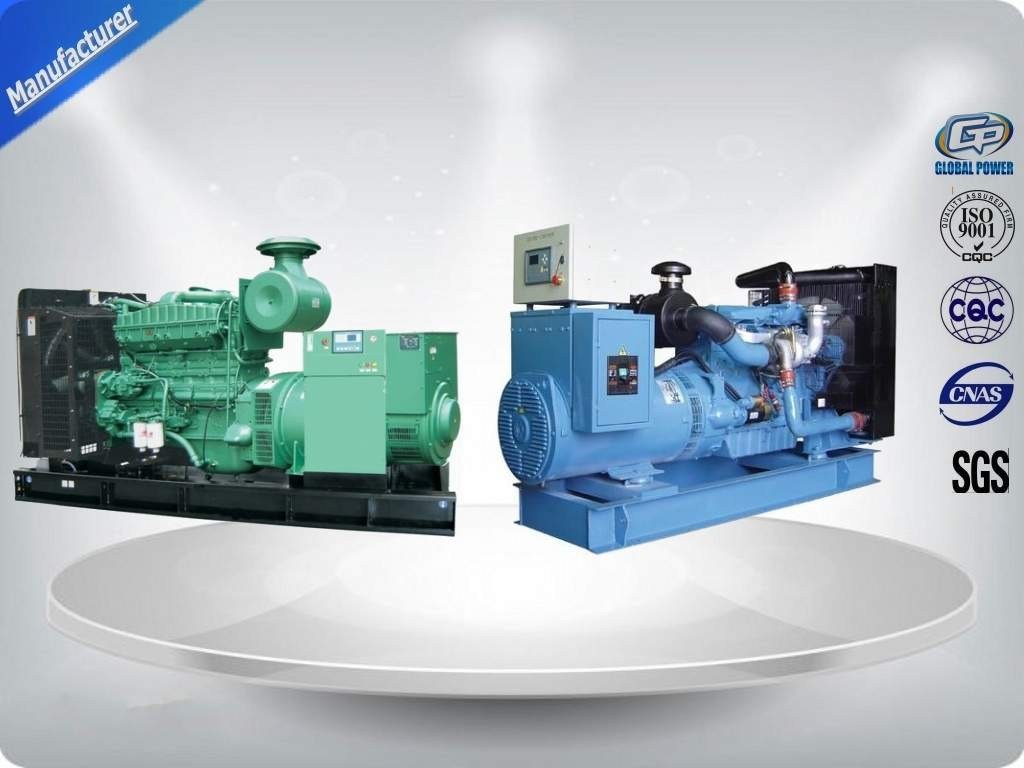

Our Picture :
Our Features :
1) Universal design and manufacture
2) Engineers are familiar with diesel generators powered by Cummins / Perkins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door
Our advantages :
1.Inspection
1. Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2. All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
