Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 160kw 120kva | Rated Frequency: | 50 / 60 Hz |
|---|---|---|---|
| Engine Model: | Perkins 1106A-70TAG4 | Rated Current: | 288 A |
| Cooling System: | Water-cooled | Battery Capacity: | 24V 100Ah |
| Fuel Tank Capacity: | 350 L | Speed Governing: | Electronic |
| Highlight: | brushless synchronous generator,brushless alternator generator |
||

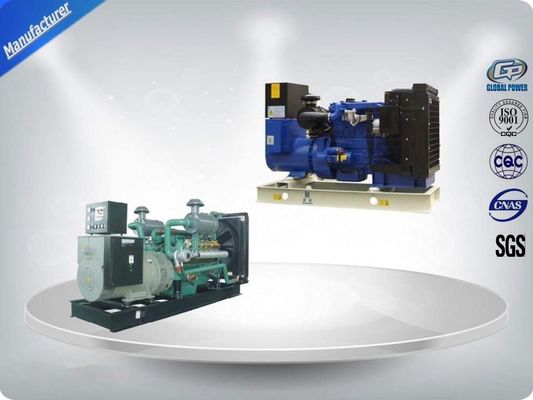

Open type 160kw diesle generator, water-cooled 200kva Perkins or Cummins generating set
Select Supply Scope:
1, Silent ,Mobile,Container,weatherproof types canopy and trailer
2. Connect to main ,all panels:Circut Breaker,ATS,etc
3, Water & oil heater, oil-water separator, air breaker, base fuel tank.
Genset Construction :
All our gensets are built with original diesel engines coupled to a brushless alternator mounted onto a steel base frame with channel supports on anti-vibrating rubber mountings. The fuel tank is fabricated of mild steel and is incorporated into the base frame. The size of the tank is dependent on the size of the generator.
Technical Specifications :
|
Prime Power (kw/kva) |
160/200 |
|
Standby Power (kw/kva) |
176/220 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Current (A) |
288 |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
24V 100Ah |
|
Open Type-Dimension (L*W*H) (mm) |
2377*780*1350 |
|
Open Type-Weight (kg) |
1465 |
|
Soundproof Type- Dimension (L*W*H) (mm) |
3200*1300*2000 |
|
Soundproof Type-Weight (kg) |
3865 |
|
Fuel Tank Capacity(L) |
350 |
|
Continuous Running Time(hr.) |
8 |
Perkins Engine:
feature:
Model 1106A-70TAG4
|
Alternator:
feature:
Model ECO38-2SN/4
|
||||||||||||||||||||||||||||
|
|
Control system :
DSE4620 controller

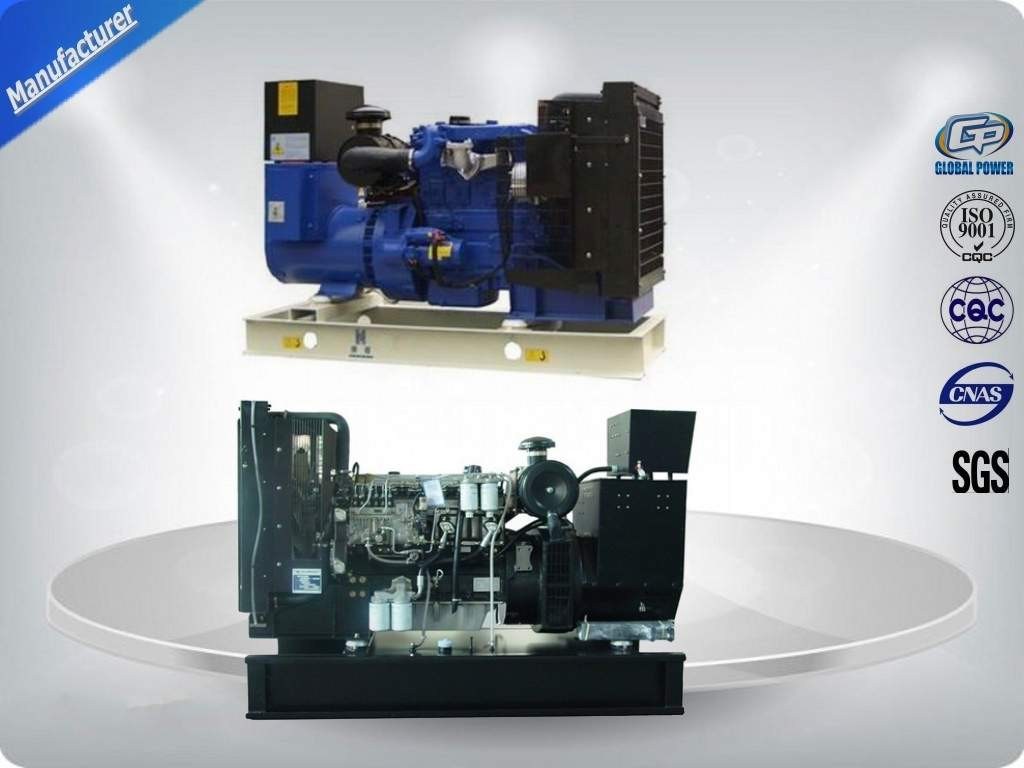

Our Picture :
Basic Specification:
1. Engine brand, volvo.
2. Alternator brand, Meccalte, Stanform, GP...etc
3. Direct injection internal combustion engine
4. AC synchronous generator ( single bearing)
5. Cooling way, radiator with fan & water tank
6. Open type, closed type ( with sound proof canopy, trailer, container)
7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set
8. Anti-vibration isolaters
9. Brushless 3 phase
10.Integral guel tank ( 8 hours)
11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)
12.50/60hz
13. Atomatic alarm system
14. Insulation, class H
Our Features :
1) Universal design and manufacture
2) Engineers are familiar with diesel generators powered by Perkins engine.
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door
Invitation to visit our factory:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
2. Our factory locates in Wuxi City, just 30 minutes away from Shanghai.
3. When you come to Shanghai or Wuxi, we can send cars to pick you up and take you to our factory.
4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
