Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 220kw | Engine Model: | Perkins 1606A-E93TAG4 |
|---|---|---|---|
| Rated Current: | 297 A | Cooling System: | Water-cooled |
| Battery Capacity: | 24V 100Ah | Fuel Tank Capacity: | 600 L |
| Dimension: | 3200*1150*1900 Mm | Weight: | 2735 Kg |
| Highlight: | Emergency Generator Set,power generating sets |
||

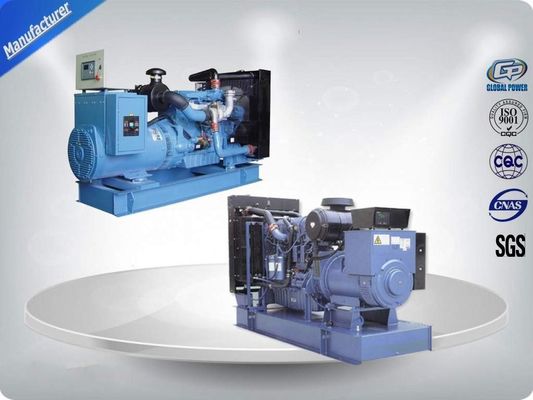

20kva ~ 1500kva Perkins diesel generators 50Hz 400V / 380V with Mec-alte alternator
Basic Specification:
1. Engine brand, Perkins.
2. Alternator brand, Meccalte, Stanform, GP...etc
3. Direct injection internal combustion engine
4. AC synchronous generator ( single bearing)
5. Cooling way, radiator with fan & water tank
6. Open type, closed type ( with sound proof canopy, trailer, container)
7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set
8. Anti-vibration isolaters
9. Brushless 3 phase
10.Integral guel tank ( 8 hours)
11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)
12.50/60hz
13. Atomatic alarm system
14. Insulation, class H
Technical Specifications :
| Prime Power (kw/kva) | 220/275 |
| Standby Power (kw/kva) | 242/303 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 397 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 24V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 3200*1150*1900 |
| Open Type-Weight (kg) | 2735 |
| Soundproof Type- Dimension (L*W*H) (mm) | 3400*1400*2150 |
| Soundproof Type-Weight (kg) | 5535 |
| Fuel Tank Capacity(L) | 600 |
| Continuous Running Time(hr.) | 8 |
Perkins Engine:
Model 1606A-E93TAG4
| Engine brand | Perkins |
| Output Power (kw) | 261 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 16.9:1 |
| Displacement (L) | 9.3 |
| Bore X Stroke (mm) | 117*146 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 45 |
| Fuel Consump. (g/kw·h) | 208 |
| Oil Capacity (L) | 36 |
feature:
Alternator:
Model ECO38-2LN/4
|
feature:
Control system :
DSE4620 controller
Control system includes:
1. automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button

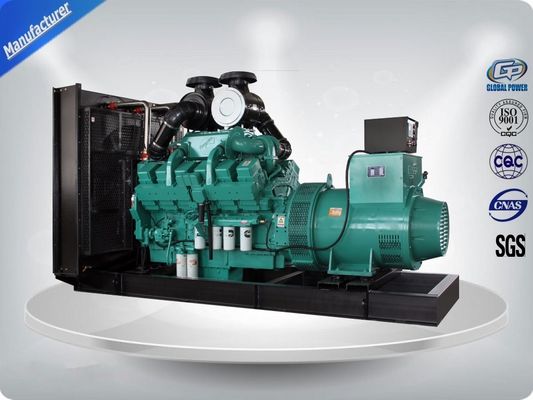

Our Picture :
Standard Supply Scope:
Our Service :
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
Guarantee for Our Generators:
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
4) 24 hours service hot-line is available for customers.
