Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 350kva | Standby Power: | 385kva |
|---|---|---|---|
| Engine Model: | Perkins 1606A-E93TAG5 | Cooling System: | Water-cooled |
| Rated Frequency: | 50 Hz | Fuel Tank Capacity: | 600 L |
| Engine Speed: | 1500 Rpm | Speed Governing: | Electronic |
| Highlight: | marine diesel genset,Emergency Generator Set |
||

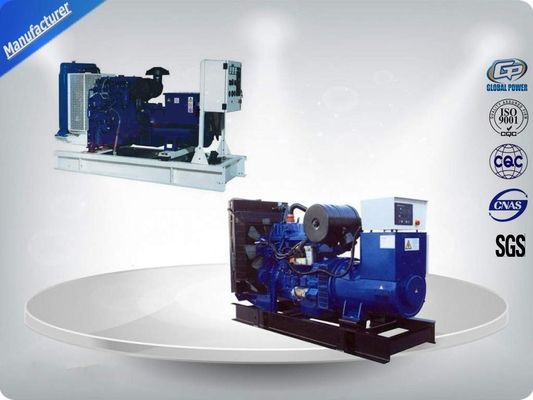

Open or silent type generator set 350kva standby, drived by Pekrin or Cummins diesel engine
Genset Construction :
All our gensets are built with original diesel engines coupled to a brushless alternator mounted onto a steel base frame with channel supports on anti-vibrating rubber mountings. The fuel tank is fabricated of mild steel and is incorporated into the base frame. The size of the tank is dependent on the size of the generator.
Technical Specifications :
| Prime Power (kw/kva) | 280/350 |
| Standby Power (kw/kva) | 308/385 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 504 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 24V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 3200*1150*1900 |
| Open Type-Weight (kg) | 2735 |
| Soundproof Type- Dimension (L*W*H) (mm) | 4100*1500*2250 |
| Soundproof Type-Weight (kg) | 6385 |
| Fuel Tank Capacity(L) | 600 |
| Continuous Running Time(hr.) | 8 |
Perkins Engine:
Model 2206C-E13TAG2
| Engine brand | Perkins |
| Output Power (kw) | 349 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 16.3:1 |
| Displacement (L) | 12.5 |
| Bore X Stroke (mm) | 130*157 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 51.4 |
| Fuel Consump. (g/kw·h) | 210 |
| Oil Capacity (L) | 40 |
feature:
Alternator:
Model ECO38-3LN/4
|
feature:
Control system :
DSE4620 controller
Control system includes:
1. automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button
Our Picture :
20-1200KW diesel generator
1.CE certificated,ISO9001-2008
2.global joint warranty service
3.ATS/AMF and daily tank are optional.
Standard Supply Scope:
1. Diesel engine with Alternator
2. Standard Accessory: Exhaust Silencer, Flexible pipe, Battery & Connenct wire, Operation Manual.
3. Control system will use Deep Sea DSE AMF module, LCD display all engine parameter, alternator parameter, and fully alarm & protection function.
4. Radiator is standard , Strat battery and charger.
Basic Specification:
1. Engine brand, Perkins,Cummins.
2. Alternator brand, Meccalte, Stanform, GP...etc
3. Direct injection internal combustion engine
4. AC synchronous generator ( single bearing)
5. Cooling way, radiator with fan & water tank
6. Open type, closed type ( with sound proof canopy, trailer, container)
7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set
8. Anti-vibration isolaters
9. Brushless 3 phase
10.Integral guel tank ( 8 hours)
11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)
12.50/60hz
13. Atomatic alarm system
14. Insulation, class H
Our advantages :
1.Inspection
1. Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2. All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
