Ricardo Soundproof Open Diesel Generator Set 100kva-500kva Perkins Cummins

Large Image : Ricardo Soundproof Open Diesel Generator Set 100kva-500kva Perkins Cummins

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Perkins
Certification:	OEM / ISO
Model Number:	GP P400

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	plastic foam or plywood case packing
Delivery Time:	25 days after receiveing the down-payment
Supply Ability:	2000 sets / year

Contact Now

Detailed Product Description

Engine Brand::	Perkins	Output Power (kw):	478
Alternator Brand::	Stamford / Meecalt / Copy Stamford	Engine Model::	2506C-E15TAG2
Frequency (Hz):	50	Generator Type::	Open / Slient
Rated Current (A):	721	Soundproof Type- Dimension (LWH) (mm):	440015002300
Package:	Plastic Foam Or Plywood Case	Fuel Tank Capacity(L):	800
Highlight:	Emergency Generator Set , power generating sets

Perkins / Cummins / Ricardo Soundproof / Open Diesel Generator Set 100kva-500kva Power

Basic Specification:

1. Engine brand, Perkins. Cummins Ricardo

2. Alternator brand, Meccalte, Stanform, GP...etc

3. Direct injection internal combustion engine

4. AC synchronous generator ( single bearing)

5. Cooling way, radiator with fan & water tank

6. Open type, closed type ( with sound proof canopy, trailer, container)

7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set

8. Anti-vibration isolaters

9. Brushless 3 phase

10.Integral guel tank ( 8 hours)

11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)

12.50/60hz

13. Atomatic alarm system

14. Insulation, class H

Applications:

Home, Buildings, Hospitals, Train station,

Bank, Telecom, Mining, Military, Outdoor projects, etc.

Diesel Generator GPP400 (three phase)

Prime Power (kw/kva)	400/500
Standby Power (kw/kva)	440/550
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	721
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Open Type-Dimension (LWH) (mm)	345011501950
Open Type-Weight (kg)	3300
Soundproof Type- Dimension (LWH) (mm)	440015002300
Soundproof Type-Weight (kg)	8350
Fuel Tank Capacity(L)	800
Continuous Running Time(hr.)	8

Engine specifications:

1.Main features:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

2.Technical data

Technical data

Model 2506C-E15TAG2

Engine brand	Perkins
Output Power (kw)	478
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Compression Ratio	16:1
Displacement (L)	15.2
Bore X Stroke (mm)	137*171
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	58
Fuel Consump. (g/kw·h)	199
Oil Capacity (L)	62

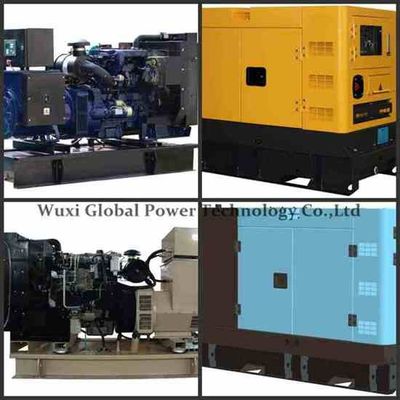

Product Picture:

Ricardo Soundproof Open Diesel Generator Set 100kva-500kva Perkins Cummins

Features and benefits

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door
