Water - Cooled 280kw Emergency Genset Open Electric Starting Perkins Cummins

MOQ:	1set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets/year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Perkins

Certification

CE / ISO

Model Number

GP P280

Engine Brand:

Perkins

Engine Model:

2206C-E13TAG2

Output Power (kw):

Rated Voltage (V):

400 / 230

Speed Governing:

Electronic

Rated Current (A):

Engine Speed (r/min):

Cooling System:

Water-cooled

Highlight:

280kw diesel generator set

280kw diesel electric generator

open diesel generator set

Product Description

Water - Cooled 280kw Emergency Genset Open Type Electric Starting Perkins / Cummins Chinese Brand

Technical Specifications :

Genset	Prime Power (kw/kva)		280/350
	Standby Power (kw/kva)		308/385
	Voltage Recovery Time		≤1S
	Rated Current (A)		504
	Rated Frequency (Hz)		50
	Frequency Recovery Time		≤5S
	Running Noise db(A)/7m(Silent type)		75
	Battery capacity (V-Ah)		24V 100Ah
	Fuel Tank Capacity(L)		/
Engine	Engine brand	Perkins
	Output Power (kw)	349
	Cylinder No. & Config.	6, in-line
	Combustion System	direct injection
	Compression Ratio	16.3:1
	Displacement (L)	12.5
	Bore X Stroke (mm)	130*157
	Engine Speed (r/min)	1500
	Speed Governing	Electronic
	Starting System	24V DC Electric
	Filter System	Dry oil filter/Fuel filter/Oil filter
	Cooling system	Water-cooled
Alternator	Alternator brand	Stamford, Mecc-alte,Faraday
	Excitation System	Brushless, self-exciting
	Voltage Regulation Mode	AVR
	Connection Type	3phase,4wires,”Y” connection
	Pole No.	4
	Rotation Speed (r/min)	1500
	Temperature Rise (℃)	125
	Insulation class	H
	Voltage Regulation (0 load)	≥95%～105%
	Protection Grade	IP23

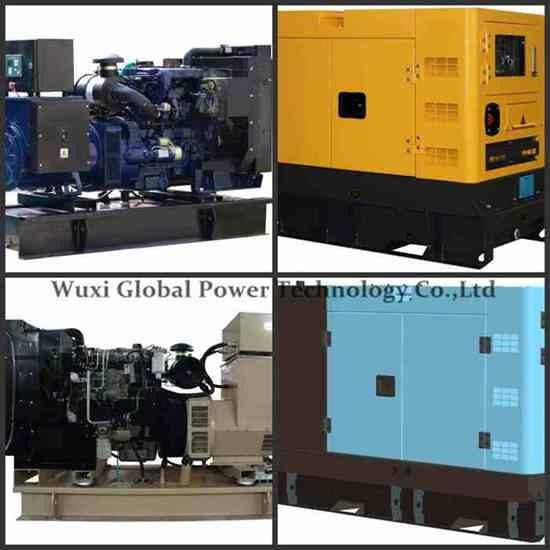

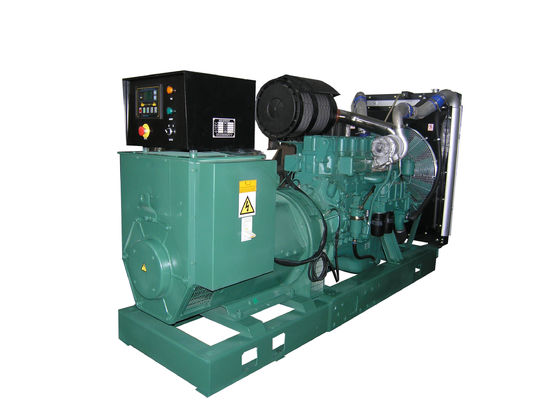

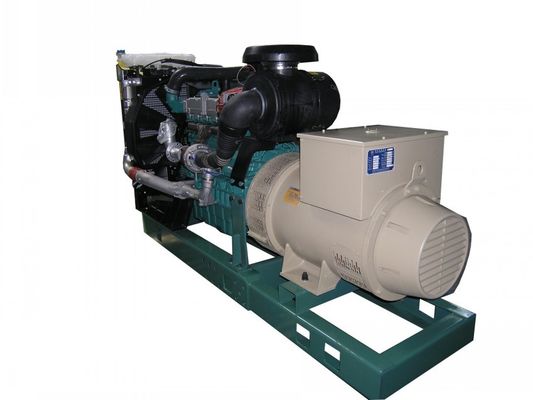

Our Picture :

Competitive service:

1) More than 15 years advanced production experience.

2) As OEM factory, we have obvious competitive in price and leading times.

3) Provide debugging and maintenance service to you.
4) Professional 8 Hours testing for Generator before shipment.

5) 1000 hours warranty on the spare parts free provide & technical support in machine life.

Serise model:

Genset Model	Power Output (kw/kVA)		Engine Model	Alternator Model	Dimension	Weight
	Prime	Standby			Open Type	Open
HP7	7.2/9	7.9/9.9	403D-11	BCI164B	1100×500×1000	400
HP10	10.4/13	11.4/14.3	403D-15	BCI164C	1150×600×1100	450
HP16	16/20	17.6/22	404D-22	BCI184E	1300×600×1150	550
HP24	24/30	36.4/33	1103A-33G	BCI184G	1600×730×1250	720
HP36	36/45	39.6/49.5	1103A-33TG1	LSA43.2S25	1600×730×1250	750
HP48	48/60	52.8/66	1103A-33TG2	LSA43.2M45	1650×730×1250	780
HP64	64/80	70.1888	1104A-44TG2	LSA43.2L6	1750×730×1250	850
HP80	80/100	88/110	1104C-44TAG2	LSA44.2VS45	1850×750×1250	900
HP112	112.8/141	124/155	1006TAG	LSA44.2M95	2250×820×1450	1150
HP120	120/150	132/165	1006TAG2	LSA44.2M95	2250×820×1450	1150
HP144	144/180	158.4/198	1106D-E66TAG4	LSA46.2M3	2400×900×1600	1500
HP160	160/200	176/220	1306C-E87TAG3	LSA46.2M5	2500×1000×1650	1300
HP182	182.4/228	200.6/250.8	1306C-E87TAG4	LSA46.2L6	2700×1000×1650	1650
HP200	200/250	220/275	1306C-E87TAG6	LSA46.2L6	2700×1000×1650	1700
HP280	280/350	308/385	2206A-E13TAG2	LSA47.2VS2	3100×1150×1800	2500
HP320	320/400	352/440	2206C-E13TAG3	LSA47.2S4	3200×1150×1800	2800
HP360	360/450	396/495	2506C-E15TAG1	LSA47.2S5	3350×1150×2150	3300
HP400	400/500	440/550	2506C-E15TAG2	LSA47.2M7	3350×1150×2150	3300
HP480	480/600	528/660	2806A-E18TAG1A	LSA47.2L9	3350×1550×2250	3950
HP520	520/650	572/715	2806A-E18TAG2	LSA49.1S4	3400×1510×2250	4200
HP580	580/725	638/797.5	4006-23TAG2A	LSA49.1M6	3900×1700×2150	4700
HP640	640/800	704/880	4006-23TAG3A	LSA49.1M75	3900×1700×2150	4700
HP728	728/910	800.8/1001	4008-TAG1A	LSA49.1L10	4800×1870×2450	6500

Warranty and Maintenance:

1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.

4) 24 hours service hotline is available for customers.
