Product Details:
Payment & Shipping Terms:
|
| RFated Speed: | 1500rpm / 18000 Available | Output Type: | Alternating Current ,3-Phase |
|---|---|---|---|
| Rated Voltage:: | 400/230 | Engine Model: | VOLVO |
| Alternator Brand: | Stamford,Mecc-alte, Copy Stamford,Faraday | Speed Governing: | Electronic Governor |
| Genset Type: | Open,Silent, Trailer.. | Rating Power: | 500/625 |
| Control Module: | UK Deepsea; Smartgen.... | ||
| Highlight: | Emergency Generator Set,power generating sets |
||

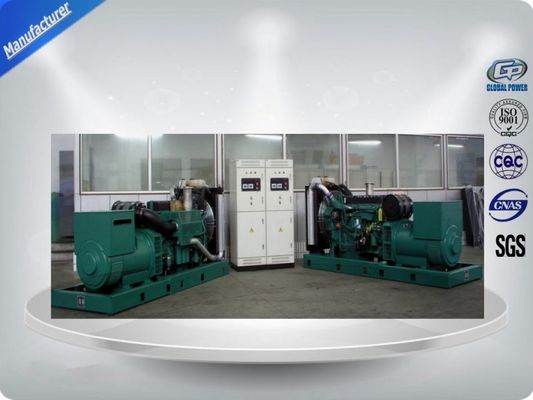

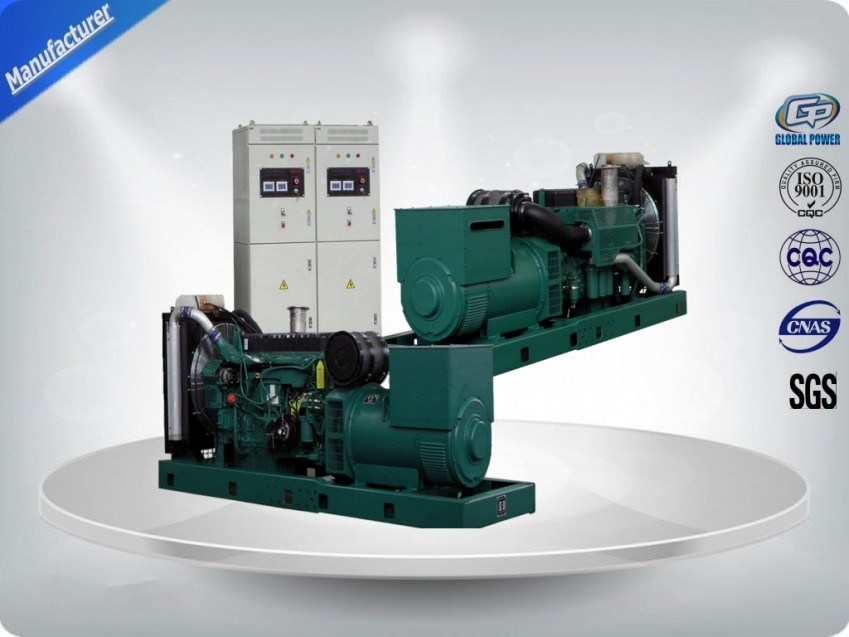

VOLVO Diesel Gen-set Water Cooling Cycle 4 Stroke Diesel Generator Set With Parallel ATS
Control system includes:
1. automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button
Standard Supply Scope:
Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
Technical Specifications:
Genset:
| Prime Power (kw/kva) | 500/625 |
| Standby Power (kw/kva) | 550/688 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 900 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 3450*1400*1930 |
| Open Type-Weight (kg) | 3850 |
| Soundproof Type- Dimension (L*W*H) (mm) | 4700*2200*2450 |
| Soundproof Type-Weight (kg) | 10250 |
| Fuel Tank Capacity(L) | 1000 |
| Continuous Running Time(hr.) | 6 |
Engine :
Model TWD1643GE
| Engine brand | VOLVO |
| Output Power (kw) | 536 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 16.5:1 |
| Displacement (L) | 16.12 |
| Bore X Stroke (mm) | 144*165 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 95 |
| Fuel Consump. (g/kw·h) | 198 |
| Oil Capacity (L) | 48 |
Alternator
Model HCI544FS
| Alternator brand | Stamford |
| Rated Power (kw) | 500 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control system
l Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
l Security password-protected programming levels
l All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
l Power supply range is wide, accommodating to different starting battery voltage environment
l Built-in watch dog can never be dead halt, ensuring smooth program execution
l Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Company Profile:
Wuxi Global Power Technology Co., Ltd is located in national Hi-tech Nanchang district, Wuxi city, Jiangsu, China, which is famous as the ‘source of power’. Our company is a key-enterprise of being engaged in research, development, manufacture and exportation of energy-saving and environment-friendly generating sets, related parts and supporting equipment.
We mainly produced “Global Power” brand three-phase brushless synchronous alternators and many kinds of diesel generator sets, such as open generator, silent/soundproof generator, outdoor power plant, containerized gensets, trailer gensets and equipments of construction machinery like mobile light tower, forklift, air-compressor and so on.
Package:
Global Power advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
