Silent Open 400KVA Marine Diesel Genset Emergency Generator Set

Products

Mobile Light Tower

czh@global-powers.com

86-510-85748495

Contact Now

Silent Open 400KVA Marine Diesel Genset Emergency Generator Set

MOQ:	2 sets
Price:	Negociable
Standard Packaging:	Plastic Foam or Plywood Case
Delivery Period:	30-35 days after receiving the down-payment

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

CCS / ISO

Model Number

GP C320

Type::

Micro-Computer Control Automatic Diesel Generator

Cooling System:

Sea Water Cooling, Heat Exchager

Output Type:

AC Three Phase

Speed & Frequency:

1500prm ,50Hz

Conditions Of Use:

Land Use

Usage:

Common Unit

Excitation Mode:

AC Rotating Exciter

Export Markets:

Global

Stroke:

Four Cycle

Installation Method:

Fixed

Highlight:

silent diesel generator set

silent diesel electric generator

open diesel generator set

Product Description

400KVA Standby Power Supply Diesel Generator Set with Diesel Engine (Cummins NTAA855-G7A)

Features of Cummins Marine Diesel Generator:

1) Universal design and manufacture

2) Most widely used around the world

3) With most service terminals

4) Engineers are familiar with Cummins powered gensets

5) You could find spare-parts very easy

Cummins Marine Diesel Generator Sets are hot cakes in the market and used in more than 150 countries all over the world.
Cummins Marine Diesel Generator Sets have feasures of compact structure, full power ranging, low fuel consumptions of marine engines, low noise, reliable marine generating set performing and long life span.
Cummins Marine Diesel Generator Sets are originally with Cummins global warranty net, namely you can get services and spare parts easily from Cummins sales agency or service centres all over the world.
Can provide certificates of Marine Products, conforming to IACS (International Association of Classification Societies)

CUMMINS Genset Model List :

Specification:

1. Specification of genset
Rated current				180A
Rated frequency(HZ)				50
Rated speed				1500rpm
Power factor				0.8(lagging)
Dimensions(mm) (L×W×H)				22508501400
Genset weight(kg)				1500
2. Specification of diesel engine
Cylinder arrangement				Vertical in-line
Cycle				Four stroke
Aspiration				Turbocharged
Bore×Stroke (mm×mm)				114 x 135
Displacement (Liter)				8.3
Rated speed				1500rpm
Starting Method				DC24V electrical starting
Speed Governor				Electronic
Cooling System				By sea water heat exchanger
Fuel Consumption				212g/kw.h
3. Specification of alternator
Number of Phase				3
Connecting Type				3 Phase and 4 Wires
Number of Bearing				1
Protection Grade				IP23
Exciter Type				Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class				H

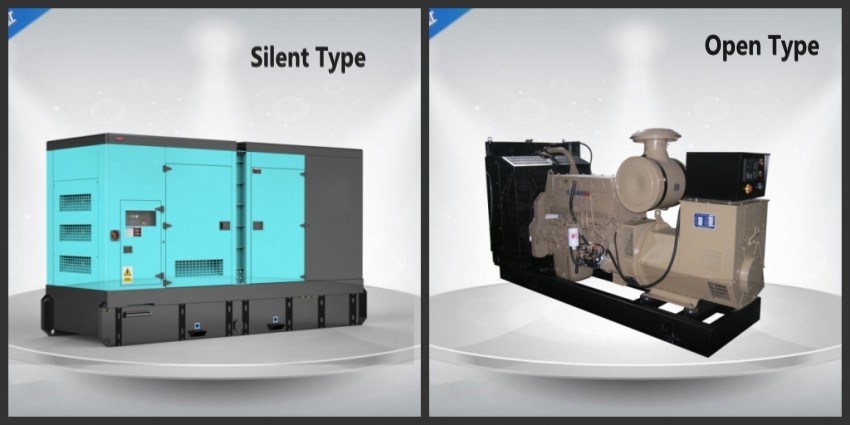

Picture :

Supply Scope:

Complete Cummins Marine Diesel Generator Sets including marine diesel engine, alternator, heat exchanger+water pump or radiator, standard control system, circuit breaker, absorber, filters, testing report, marine class certificate, user books and other accessories etc..

Global Power Service:

1. In manufacturing of power generators, GLOBAL POWER is able to draw on an experience

of more than 10 years. Our total production capacity is about 20,000 units per year.
2. The power generator sets are designed for continuous power supply and have proved 10,000

fold around the world in various applications on every continent.
3. Except standard products, we also provide customized design service for you, design generator

sets as per your specific requirements.
4. We provide professional & in time service after sale.
