Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | ISUZU | Engine Model: | 4JB1/24 |
|---|---|---|---|
| Prime Power (kw): | 25kVA / 20kW | Standby Power: | 27.5kVA / 22kW |
| Control System: | HGM410 | Frequency & Phase: | 50Hz & 3PH |
| Engine Speed (r/min): | 1500 | Cooling System: | Water-cooled |
| Highlight: | marine diesel genset,Emergency Generator Set |
||

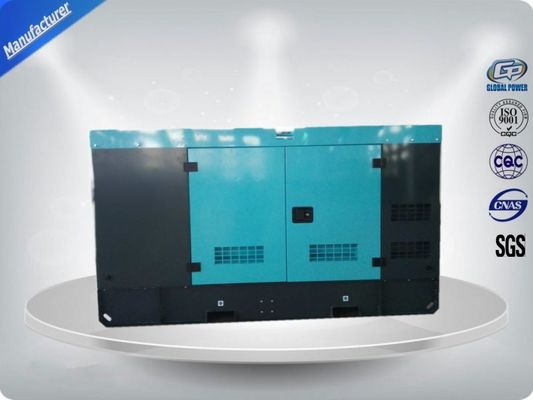

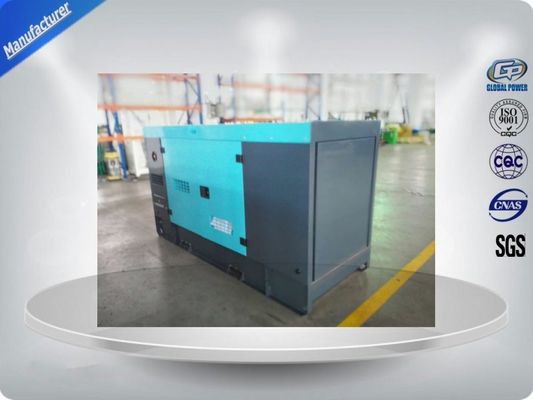

ISUZU Gen-set 20kw factory price diesel power elcetirc diesel generator set gen motor 20 kw
Technical Specifications :
|
Genset |
Prime Power (kw/kva) |
20/25 |
|
|
Standby Power (kw/kva) |
22/27.5 |
||
|
Voltage Recovery Time |
≤1S |
||
|
Engine Brand & Model |
ISUZU & 4JB1/24 |
||
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
24V 100Ah |
||
|
Fuel Tank Capacity(L) |
/ |
||
|
Engine |
Engine brand |
ISUZU |
|
|
Output Power (kw) |
24 |
||
|
Cylinder No. & Config. |
6, in-line |
||
|
Combustion System |
direct injection |
||
|
Compression Ratio |
18.2:1 |
||
|
Displacement (L) |
2.771 |
||
|
Bore X Stroke (mm) |
93 mm / 102 mm |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Mechanical |
||
|
Cooling Method |
Water cooled |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
|
Protection Grade |
IP23 |
||
Competitive service:
1) More than 15 years advanced production experience.
2) As OEM factory, we have obvious competitive in price and leading times.
3) Provide debugging and maintenance service to you.
4) Professional 8 Hours testing for Generator before shipment.
5) 1000 hours warranty on the spare parts free provide & technical support in machine life.
Warranty and Maintenance:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
