Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Cummins | Engine Model: | 4B3.9-G |
|---|---|---|---|
| Output Power (kw): | 24 | Rated Frequency (Hz): | 50 |
| Alternator: | Stamford / Meecalt / Copy Stamford | Canopy Size (l*w*h/mm）: | 2250*950*1300 |
| Canopy Weight(KG): | 1640 | Type: | Slient / Open |
| Highlight: | genset silent generator set,genset silent portable |
||
Small volume and low noise generator 16KW to 100KW Global Power Professional Manufacturer
Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Diesel Generator GPC18 (three phase)
| Prime Power (kw/kva) | 18/23 |
| Standby Power (kw/kva) | 20/25 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 33 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 24V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 1590*750*1130 |
| Open Type-Weight (kg) | 660 |
| Soundproof Type- Dimension (L*W*H) (mm) | 2250*950*1300 |
| Soundproof Type-Weight (kg) | 1640 |
| Fuel Tank Capacity(L) | 70 |
| Continuous Running Time(hr.) | 8 |
echnical data
Model 4B3.9-G
| Engine brand | Cummins |
| Output Power (kw) | 24 |
| Cylinder No. & Config. | 4, in-line |
| Combustion System | direct injection |
| Compression Ratio | 16.5:1 |
| Displacement (L) | 3.9 |
| Bore X Stroke (mm) | 102*120 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Mechanical |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 21 |
| Fuel Consump. (g/kw·h) | 228 |
| Oil Capacity (L) | 11 |
Technical data
Model PI144E
| Alternator brand | Stamford |
| Rated Power (kw) | 20 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |

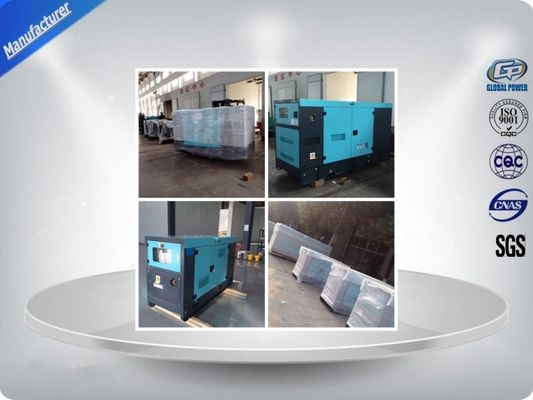

Our Picture :

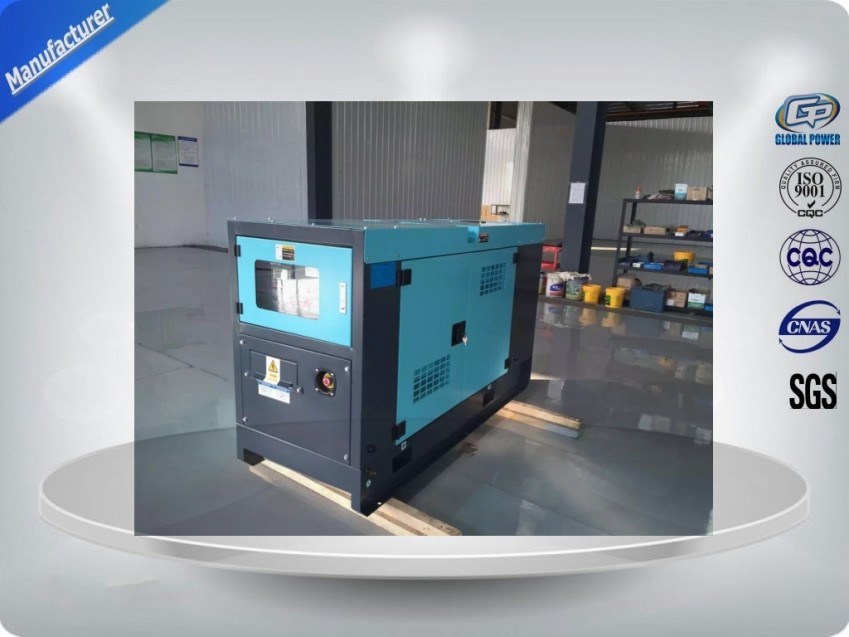

Generator soundproof/Silent and canopy
Warranty and Maintenance:
