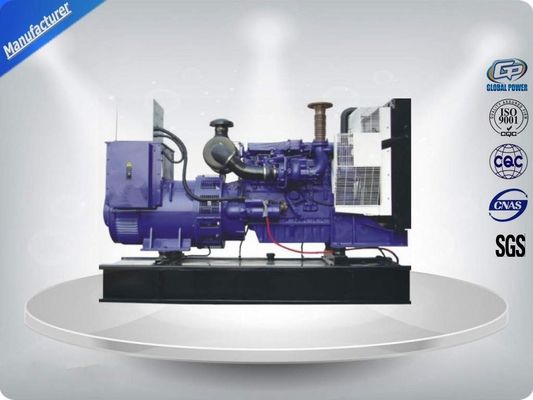

Perkins 2206C - E13tag2 Engine Drived Generator Set Diesel 280kw 350kva Electronic Genset


Perkins 2206C - E13tag2 Engine Drived Generator Set Diesel 280kw 350kva Electronic Genset


Standard Supply Scope:

• Diesel engine with Alternator
• Standard Accessory: Exhaust Silencer, Flexible pipe, Battery & Connenct wire, Operation Manual.
• Control system will use Deep Sea DSE AMF module, LCD display all engine parameter, alternator parameter, and fully alarm & protection function.
• Radiator is standard , Strat battery and charger

Technical Specifications :



 Perkins Engine:

Model                                 2206C-E13TAG2


feature:

• Six-cylinder, water-cooled, in-line diesel engine
• Efficient fuel system for max power output and durability
• Large-capacity air cleaner
• Cost effective, fuel efficient and reliable performance
• Functional engine with compact structure
• Excellent after-sales service and sufficient spare parts supplying
• Easy installation and ready access for routine maintenance

Meccalte Alternator:
Model                                     ECO38-2LN/4


feature:

• Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
• 2/3 pitch winding as standard, to avoid excessive neutral currents
• Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
• Easy access for installation and maintenance
• IP23 as standard
• Self-excited control system
• Resist of corruption of oil and acid



Control system :

DSE4620

features:

• Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
• Security password-protected programming levels
• All parameters use digital modulation, with higher reliability and stability
• Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
• Power supply range is wide, accommodating to different starting battery voltage environment
• Built-in watch dog can never be dead halt, ensuring smooth program execution
• Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation


Our Picture :


Select Supply Scope:

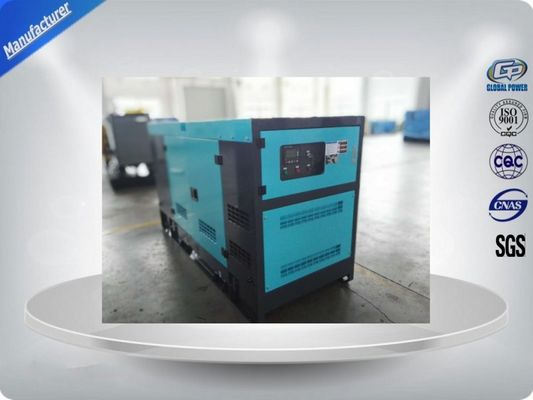

1. Silent ,Mobile,Container,weatherproof types canopy and trailer
2. Connect to main ,all panels:Circut Breaker,ATS,etc
3. Water & oil heater, oil-water separator, air breaker, base fuel tank.


Genset Construction :

• All our gensets are built with original diesel engines coupled to a brushless alternator mounted onto a steel base frame with channel supports on anti-vibrating rubber mountings.
• The fuel tank is fabricated of mild steel and is incorporated into the base frame. The size of the tank is dependent on the size of the generator.


Features and benefits:

1. Tightly structure, excellent design and craft
2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
3. Self-diagnostic capability simplifies troubleshooting
4. LCD display shows system status and setup information
5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
7. Enclosed muffler for added quietness
8. Service and maintenance accessible through easy-latch side service door.
